DIR_buffer Class Reference

#include <hribf_buffers.h>

Inheritance diagram for DIR_buffer:

Collaboration diagram for DIR_buffer:

Public Member Functions
	DIR_buffer ()
	Default constructor. More...
unsigned int	GetTotalBufferSize ()
unsigned int	GetRunNumber ()
void	SetRunNumber (unsigned int input_)
virtual bool	Write (std::ofstream *file_)
virtual bool	Read (std::ifstream *file_)
	Read a DIR buffer from a file. Return false if buffer has the wrong header and return true otherwise. More...
virtual void	Reset ()
	Set initial values. More...
void	Print ()
	Print dir buffer information. More...
void	PrintDelimited (const char &delimiter_='\t')
	Print dir buffer information in a delimited list. More...
Public Member Functions inherited from BufferType
unsigned int	GetBufferType ()
unsigned int	GetBufferSize ()
unsigned int	GetBufferEndFlag ()
bool	DebugMode ()
void	SetDebugMode (bool debug_=true)
bool	ReadHeader (std::ifstream *file_)
	Return true if the first word of the current buffer is equal to this buffer type. More...

Private Attributes
unsigned int	total_buff_size
unsigned int	run_num
unsigned int	unknown [3]

Additional Inherited Members
Protected Member Functions inherited from BufferType
	BufferType (unsigned int bufftype_, unsigned int buffsize_, unsigned int buffend_=0xFFFFFFFF)
	Generic BufferType constructor. More...
Protected Attributes inherited from BufferType
unsigned int	bufftype
unsigned int	buffsize
unsigned int	buffend
unsigned int	zero
bool	debug_mode

Detailed Description

Definition at line 156 of file hribf_buffers.h.

Constructor & Destructor Documentation

DIR_buffer()

DIR_buffer::DIR_buffer

(

)

Default constructor.

Definition at line 322 of file hribf_buffers.cpp.

Here is the call graph for this function:

Member Function Documentation

GetRunNumber()

unsigned int DIR_buffer::GetRunNumber ( )

inline

Definition at line 167 of file hribf_buffers.h.

GetTotalBufferSize()

unsigned int DIR_buffer::GetTotalBufferSize ( )

inline

Definition at line 165 of file hribf_buffers.h.

Print()

void DIR_buffer::Print

(

void

)

Print dir buffer information.

Definition at line 383 of file hribf_buffers.cpp.

Here is the caller graph for this function:

PrintDelimited()

void DIR_buffer::PrintDelimited

(

const char &

delimiter_ = '\t'

)

Print dir buffer information in a delimited list.

Definition at line 390 of file hribf_buffers.cpp.

Here is the caller graph for this function:

Read()

bool DIR_buffer::Read ( std::ifstream *  file_ )

virtual

Read a DIR buffer from a file. Return false if buffer has the wrong header and return true otherwise.

Read a ldf DIR buffer.

Reimplemented from BufferType.

Definition at line 352 of file hribf_buffers.cpp.

Here is the caller graph for this function:

Reset()

void DIR_buffer::Reset ( void  )

virtual

Set initial values.

Reimplemented from BufferType.

Definition at line 374 of file hribf_buffers.cpp.

Here is the caller graph for this function:

SetRunNumber()

void DIR_buffer::SetRunNumber ( unsigned int  input_ )

inline

Definition at line 169 of file hribf_buffers.h.

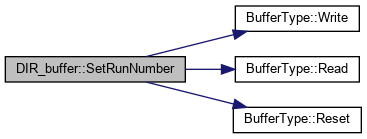

Here is the call graph for this function:

Write()

bool DIR_buffer::Write ( std::ofstream *  file_ )

virtual

DIR buffer (1 word buffer type, 1 word buffer size, 1 word for total buffer length, 1 word for total number of buffers, 2 unknown words, 1 word for run number, 1 unknown word, and 8186 zeros).

Reimplemented from BufferType.

Definition at line 330 of file hribf_buffers.cpp.

Field Documentation

run_num

unsigned int DIR_buffer::run_num

private

Definition at line 159 of file hribf_buffers.h.

total_buff_size

unsigned int DIR_buffer::total_buff_size

private

Definition at line 158 of file hribf_buffers.h.

unknown

unsigned int DIR_buffer::unknown[3]

private

Definition at line 160 of file hribf_buffers.h.

---

The documentation for this class was generated from the following files:

• hribf_buffers.h
• hribf_buffers.cpp
