Singleton class holding global parameters. More...

#include <Globals.hpp>

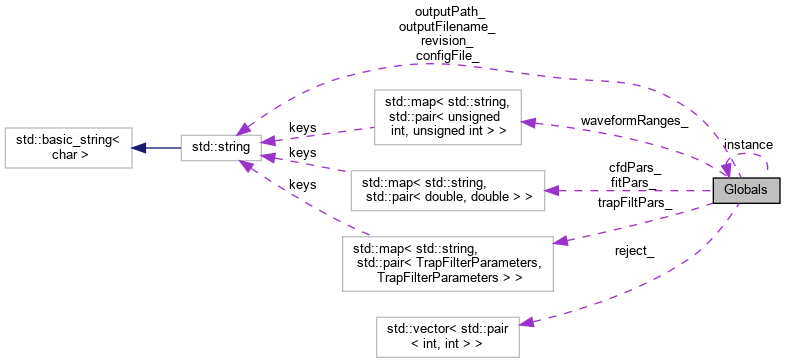

Collaboration diagram for Globals:

Public Member Functions
	~Globals ()

bool	hasReject () const

bool	hasRaw () const

double	adcClockInSeconds () const

double	bitResolution () const

double	bigLength () const

double	bigLengthTime () const

double	clockInSeconds () const

double	discriminationStart () const

double	eventInSeconds () const

double	filterClockInSeconds () const

double	mediumLength () const

double	mediumLengthTime () const

double	neutronMass () const

double	qdcCompression () const

double	smallLength () const

double	smallLengthTime () const

double	speedOfLight () const

double	speedOfLightBig () const

double	speedOfLightMedium () const

double	speedOfLightSmall () const

double	sigmaBaselineThresh () const

double	siPmtSigmaBaselineThresh () const

double	systemClockFreqInHz () const

double	traceDelay () const

int	eventWidth () const

std::pair< unsigned int, unsigned int >	waveformRange (const std::string &str) const

std::pair< double, double >	cfdPars (const std::string &str) const

std::pair< double, double >	fitPars (const std::string &str) const

std::pair< TrapFilterParameters, TrapFilterParameters >	trapFiltPars (const std::string &str) const

std::string	outputFile () const

std::string	outputPath (std::string fileName)

std::string	revision () const

std::string	configfile () const

unsigned short	numTraces () const

std::vector< std::pair< int, int > >	rejectRegions () const

void	SetOutputFilename (const std::string &a)

Static Public Member Functions
static Globals *	get ()

static Globals *	get (const std::string &file)

Private Member Functions
	Globals (const std::string &file)

	Globals (Globals const &)
	Overload of the constructor. More...

void	operator= (Globals const &)
	copy constructor More...

void	SanityCheck ()

void	WarnOfUnknownParameter (Messenger &m, pugi::xml_node_iterator &it)

Private Attributes
bool	hasReject_
	Has a rejection region. More...

bool	hasRaw_
	True for plotting Raw Histograms in DAMM. More...

double	adcClockInSeconds_
	adc clock in second More...

double	bitResolution_
	The Bit resolution of the digitizer that we used. More...

double	clockInSeconds_
	the ACQ clock in seconds More...

double	discriminationStart_
	starting sample for the n-gamma discrimination More...

double	eventInSeconds_
	event width in seconds More...

double	filterClockInSeconds_
	filter clock in seconds More...

double	bigLength_
	length of big VANDLE bars in cm More...

double	mediumLength_
	length of medium VANDLE bars in cm More...

double	neutronMass_
	mass of neutrons in MeV/c/c More...

double	qdcCompression_
	QDC compression factor for VANDLE related plots. More...

double	smallLength_
	length of small VANDLE bars in cm More...

double	sigmaBaselineThresh_
	threshold on fitting for Std dev. of the baseline More...

double	siPmtSigmaBaselineThresh_
	threshold on fitting for Std dev. of the baseline for SiPMTs More...

double	speedOfLight_
	speed of light in cm/ns More...

double	speedOfLightBig_
	speed of light in big VANDLE bars in cm/ns More...

double	speedOfLightMedium_
	speed of light in medium VANDLE bars in cm/ns More...

double	speedOfLightSmall_
	speed of light in small VANDLE bars in cm/ns More...

double	sysClockFreqInHz_
	frequency of the system clock More...

double	traceDelay_
	the trace delay in ns More...

int	eventWidth_
	the size of the events More...

std::map< std::string, std::pair< unsigned int, unsigned int > >	waveformRanges_
	Map containing ranges for the waveforms. More...

std::map< std::string, std::pair< double, double > >	fitPars_
	Map containing all of the parameters to be used in the fitting analyzer for a type:subtype. More...

std::map< std::string, std::pair< double, double > >	cfdPars_
	Map containing all of the parameters to be used in the cfd analyzer for a type:subtype. More...

std::map< std::string, std::pair< TrapFilterParameters, TrapFilterParameters > >	trapFiltPars_
	Map containing all of the trapezoidal filter parameters for a given type:subtype. More...

std::string	outputFilename_
	Output Filename. More...

std::string	configFile_
	The configuration file. More...

std::string	outputPath_
	The path to additional configuration files. More...

std::string	revision_
	the pixie revision More...

unsigned short	numTraces_
	number of traces to plot More...

std::vector< std::pair< int, int > >	reject_
	rejection range in time More...

Static Private Attributes
static Globals *	instance = NULL
	Create the static instance of the class. More...

Detailed Description

Singleton class holding global parameters.

Definition at line 152 of file Globals.hpp.

Constructor & Destructor Documentation

§ ~Globals()

Globals::~Globals ( )

Definition at line 313 of file Globals.cpp.

§ Globals() [1/2]

Globals::Globals ( const std::string & file )

private

Default Constructor

Definition at line 14 of file Globals.cpp.

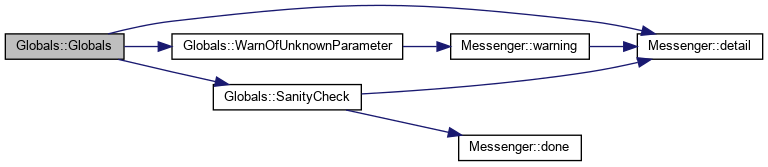

Here is the call graph for this function:

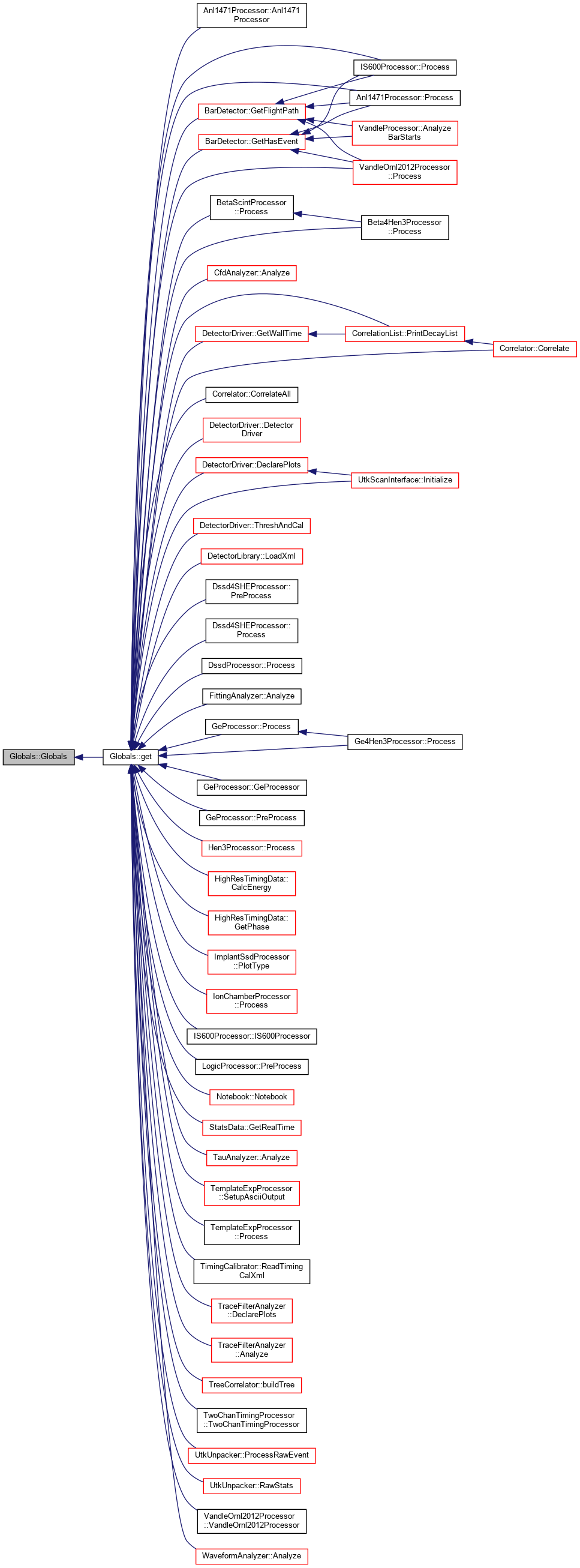

Here is the caller graph for this function:

§ Globals() [2/2]

Globals::Globals ( Globals const & )

private

Overload of the constructor.

Member Function Documentation

§ adcClockInSeconds()

double Globals::adcClockInSeconds ( ) const

inline

Returns: the adc clock in seconds

Definition at line 169 of file Globals.hpp.

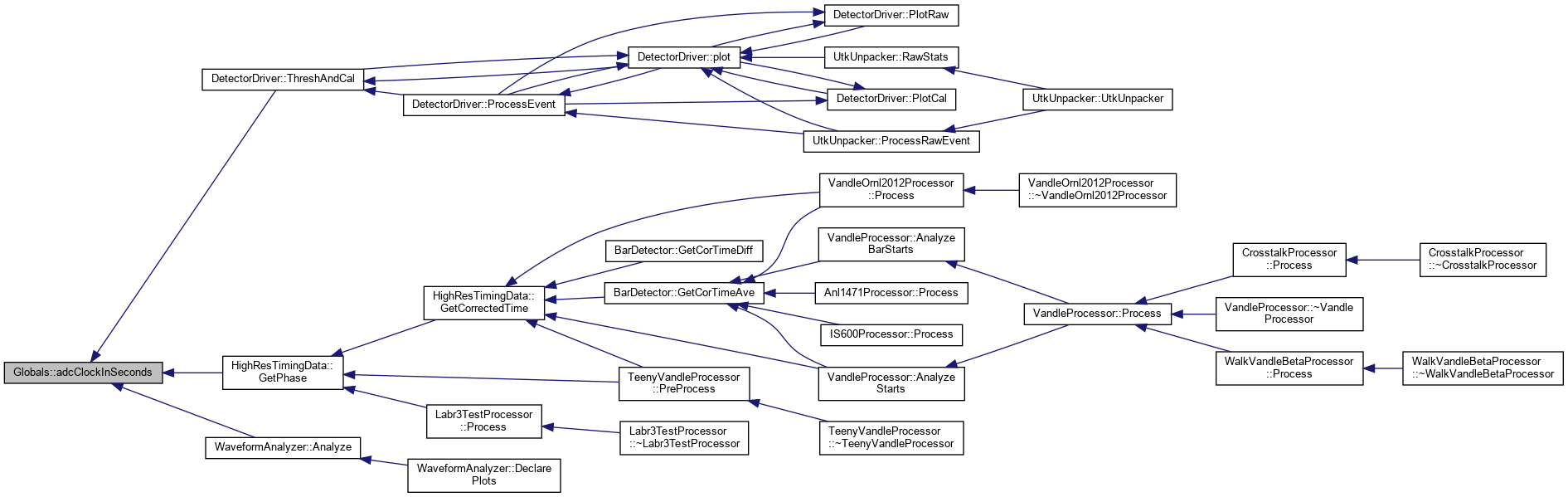

Here is the caller graph for this function:

§ bigLength()

double Globals::bigLength ( ) const

inline

Returns: the length of the big VANDLE bars length in cm

Definition at line 175 of file Globals.hpp.

§ bigLengthTime()

double Globals::bigLengthTime ( ) const

inline

Returns: the length of the big VANDLE bars in ns

Definition at line 178 of file Globals.hpp.

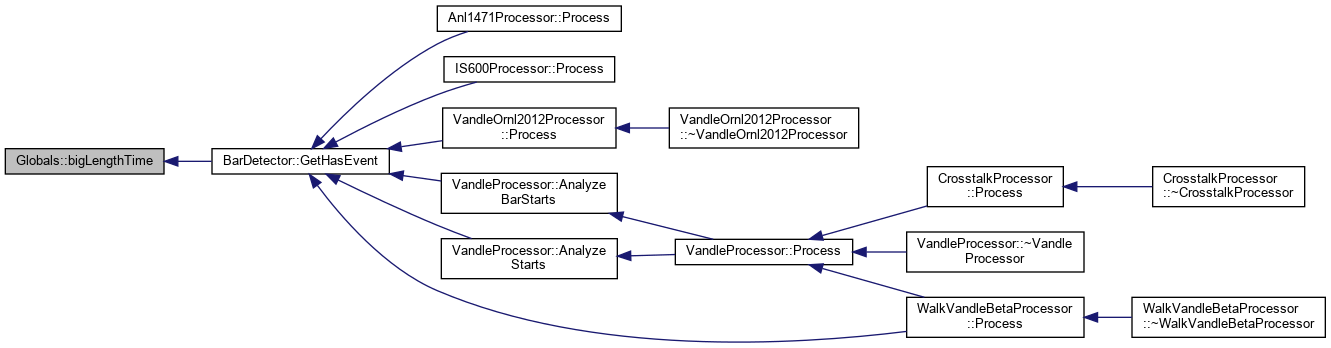

Here is the caller graph for this function:

§ bitResolution()

double Globals::bitResolution ( ) const

inline

Returns: the bit resolution of the ADC (e.x. 12 bit = 4096)

Definition at line 172 of file Globals.hpp.

Here is the caller graph for this function:

§ cfdPars()

std::pair<double, double> Globals::cfdPars ( const std::string & str ) const

inline

Returns: the requested cfd parameters parameters

Definition at line 251 of file Globals.hpp.

Here is the caller graph for this function:

§ clockInSeconds()

double Globals::clockInSeconds ( ) const

inline

Returns: the pixie clock in seconds

Definition at line 181 of file Globals.hpp.

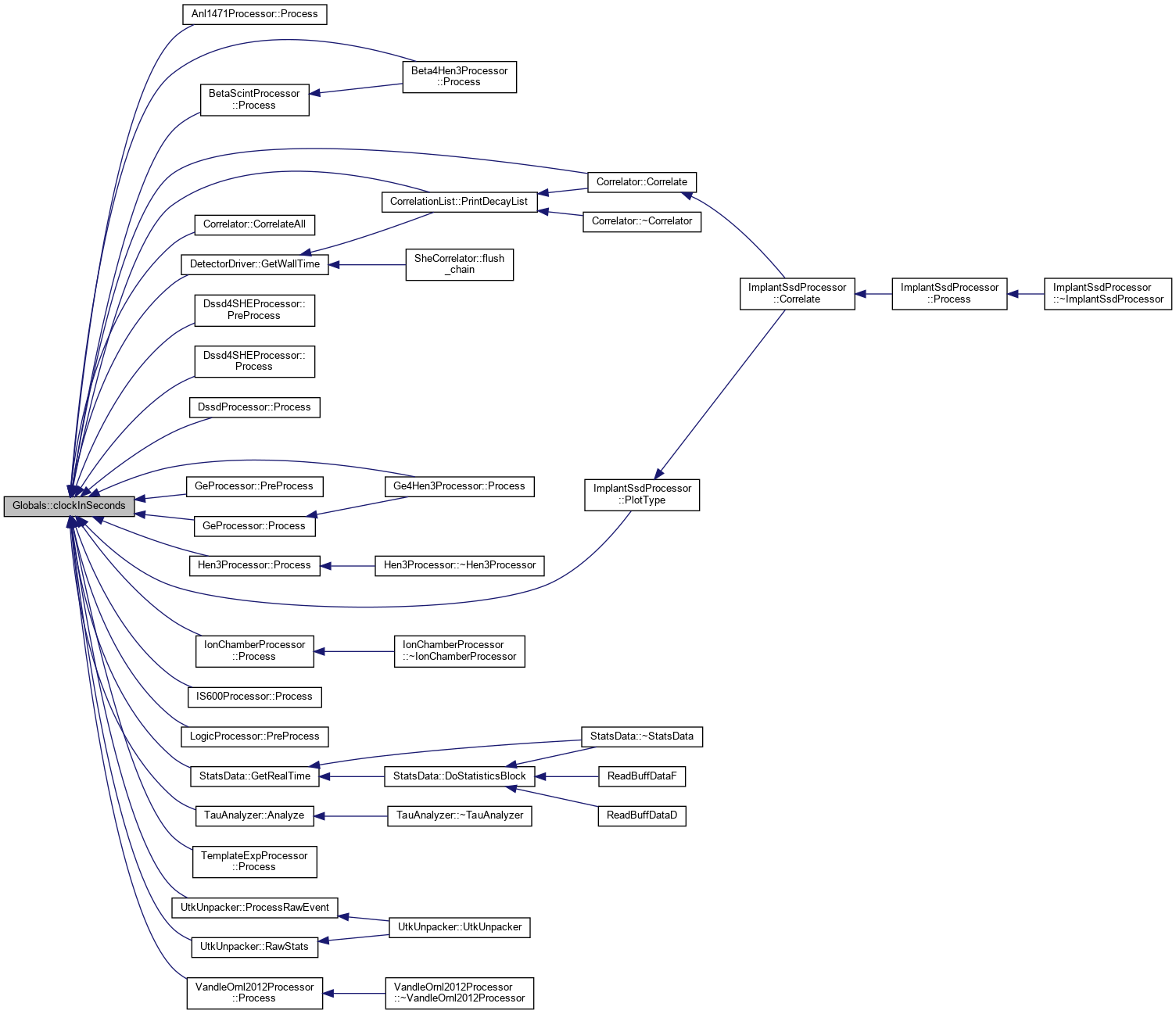

Here is the caller graph for this function:

§ configfile()

std::string Globals::configfile ( ) const

inline

Returns: the configuration file

Definition at line 289 of file Globals.hpp.

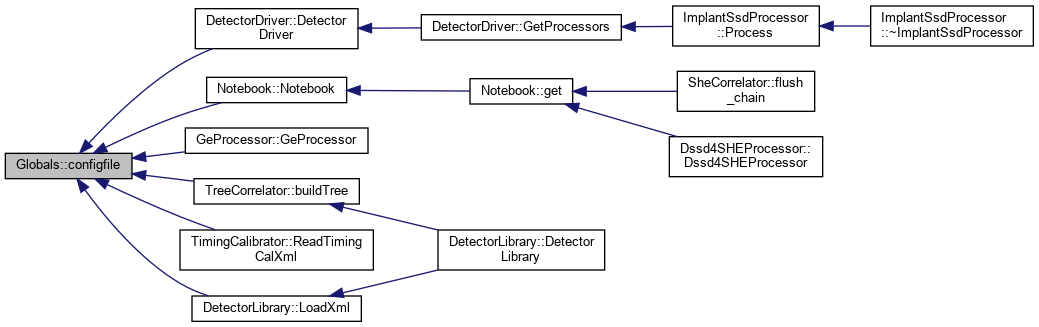

Here is the caller graph for this function:

§ discriminationStart()

double Globals::discriminationStart ( ) const

inline

Returns: the starting point in the trace for the n-gamma discrimination

Definition at line 184 of file Globals.hpp.

§ eventInSeconds()

double Globals::eventInSeconds ( ) const

inline

Returns: the event size in seconds

Definition at line 187 of file Globals.hpp.

§ eventWidth()

int Globals::eventWidth ( ) const

inline

Returns: the event width

Definition at line 240 of file Globals.hpp.

§ filterClockInSeconds()

double Globals::filterClockInSeconds ( ) const

inline

Returns: the filter clock in seconds

Definition at line 190 of file Globals.hpp.

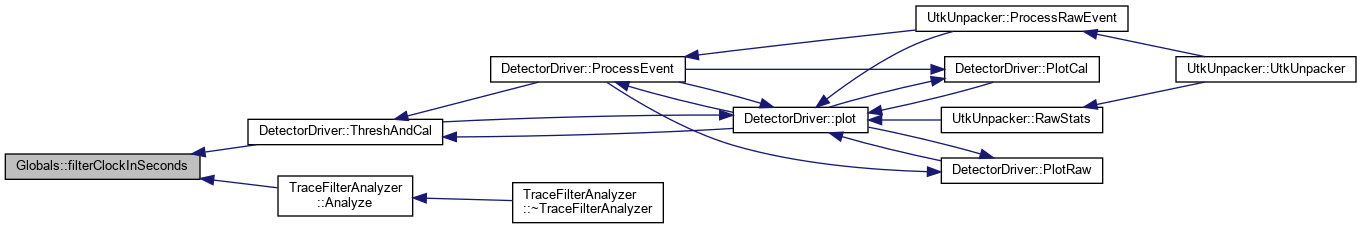

Here is the caller graph for this function:

§ fitPars()

std::pair<double, double> Globals::fitPars ( const std::string & str ) const

inline

Returns: the requested fitting parameters

Definition at line 258 of file Globals.hpp.

Here is the caller graph for this function:

§ get() [1/2]

Globals * Globals::get ( )

static

Returns: only instance of Globals class.

Instance is created upon first call

Definition at line 300 of file Globals.cpp.

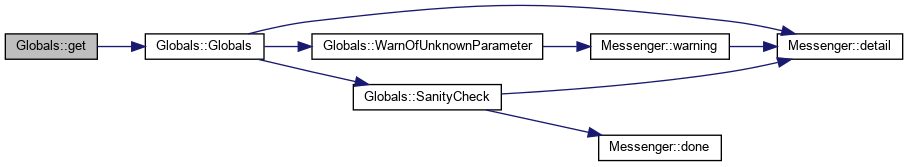

Here is the call graph for this function:

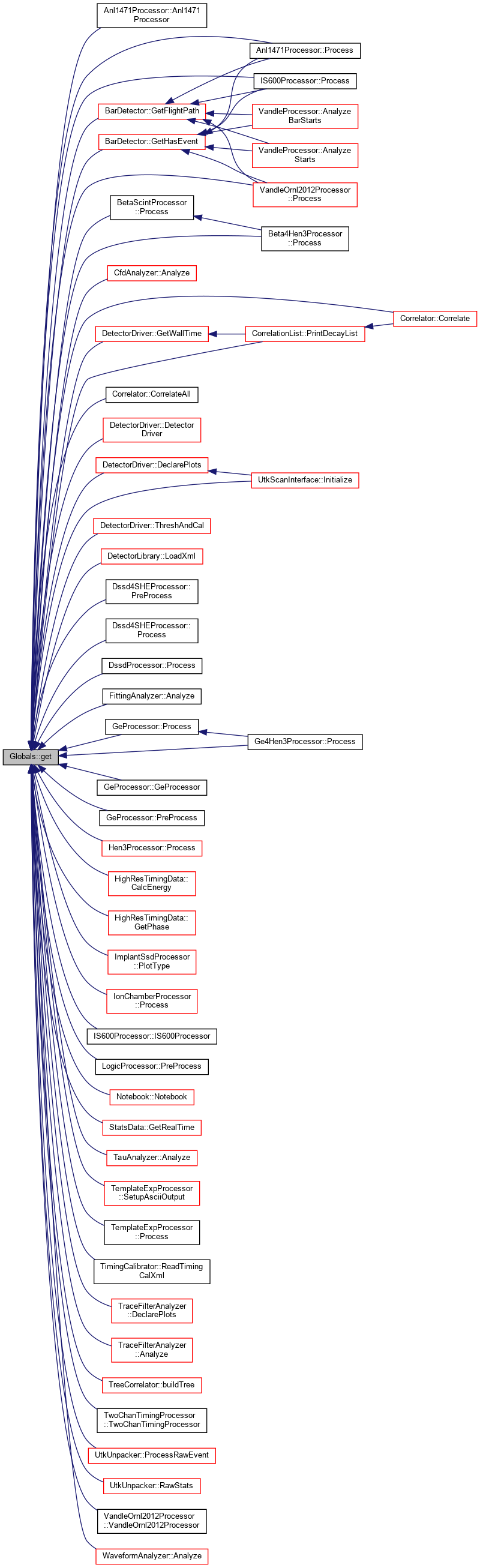

Here is the caller graph for this function:

§ get() [2/2]

Globals * Globals::get ( const std::string & file )

static

Returns: only instance of Globals class.

Instance is created upon first call

Definition at line 307 of file Globals.cpp.

Here is the call graph for this function:

§ hasRaw()

bool Globals::hasRaw ( ) const

inline

Returns: true if we will define the raw histograms

Definition at line 166 of file Globals.hpp.

§ hasReject()

bool Globals::hasReject ( ) const

inline

Returns: true if any reject region was defined

Definition at line 163 of file Globals.hpp.

§ mediumLength()

double Globals::mediumLength ( ) const

inline

Returns: the length of the medium VANDLE bars in cm

Definition at line 193 of file Globals.hpp.

§ mediumLengthTime()

double Globals::mediumLengthTime ( ) const

inline

Returns: the length of the medium VANDLE bars in ns

Definition at line 196 of file Globals.hpp.

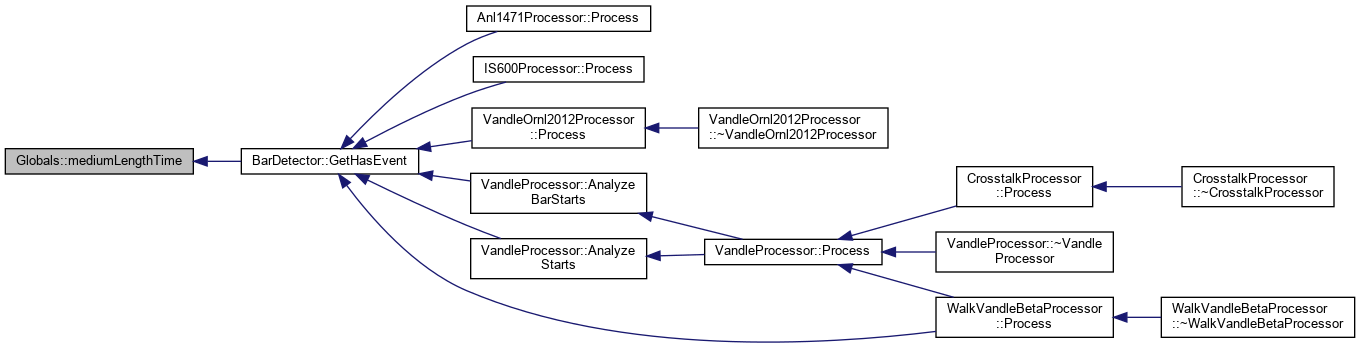

Here is the caller graph for this function:

§ neutronMass()

double Globals::neutronMass ( ) const

inline

Returns: the mass of the neutron in MeV/c/c

Definition at line 201 of file Globals.hpp.

§ numTraces()

unsigned short Globals::numTraces ( ) const

inline

Returns: max number of traces stored in 2D spectra with traces. If not set, by default is 16.

Definition at line 293 of file Globals.hpp.

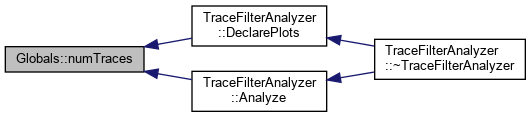

Here is the caller graph for this function:

§ operator=()

void Globals::operator= ( Globals const & )

private

copy constructor

§ outputFile()

std::string Globals::outputFile ( ) const

inline

Returns: returns name of specified output file

Definition at line 274 of file Globals.hpp.

§ outputPath()

std::string Globals::outputPath ( std::string fileName )

inline

Returns: path to use to output files, can be different from output file path

Parameters

[in] fileName : the path for the configuration files

Definition at line 279 of file Globals.hpp.

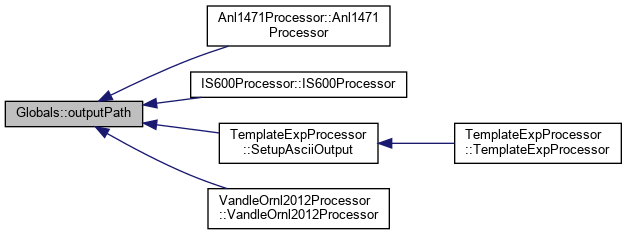

Here is the caller graph for this function:

§ qdcCompression()

double Globals::qdcCompression ( ) const

inline

Returns: the compression factor for the QDCs from the trace (VANDLE related)

Definition at line 204 of file Globals.hpp.

§ rejectRegions()

std::vector<std::pair<int, int> > Globals::rejectRegions ( ) const

inline

Returns: rejection regions to exclude from scan. Values should be given in seconds in respect to the beginning of the file

Definition at line 298 of file Globals.hpp.

Here is the caller graph for this function:

§ revision()

std::string Globals::revision ( ) const

inline

Returns: the revision for the data

Definition at line 286 of file Globals.hpp.

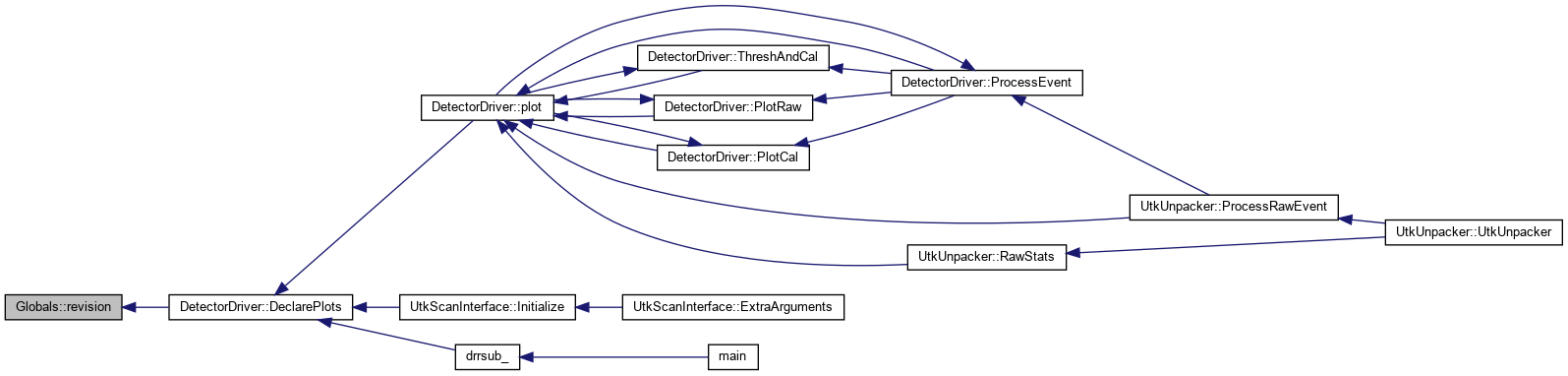

Here is the caller graph for this function:

§ SanityCheck()

void Globals::SanityCheck ( void )

private

Check that some of the values make sense

Definition at line 247 of file Globals.cpp.

Here is the call graph for this function:

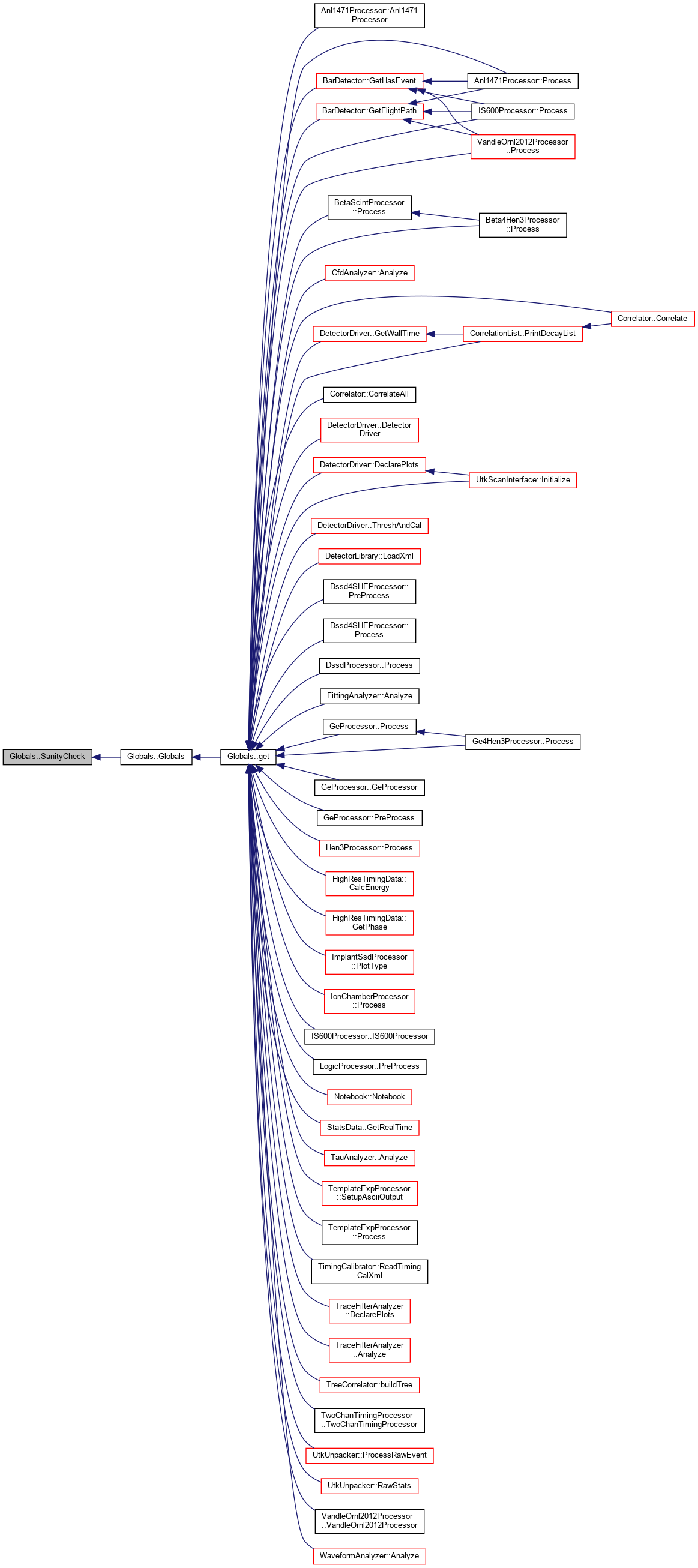

Here is the caller graph for this function:

§ SetOutputFilename()

void Globals::SetOutputFilename ( const std::string & a )

inline

Sets output Filename from scan interface

Definition at line 301 of file Globals.hpp.

Here is the caller graph for this function:

§ sigmaBaselineThresh()

double Globals::sigmaBaselineThresh ( ) const

inline

Returns: the cutoff on the std deviation of the baseline for fitting

Definition at line 227 of file Globals.hpp.

Here is the caller graph for this function:

§ siPmtSigmaBaselineThresh()

double Globals::siPmtSigmaBaselineThresh ( ) const

inline

Returns: the cutoff on the std deviation of the baseline for fitting

Definition at line 231 of file Globals.hpp.

Here is the caller graph for this function:

§ smallLength()

double Globals::smallLength ( ) const

inline

Returns: the length of the small VANDLE bar in cm

Definition at line 207 of file Globals.hpp.

§ smallLengthTime()

double Globals::smallLengthTime ( ) const

inline

Returns: the length of the small VANDLE bar in ns

Definition at line 210 of file Globals.hpp.

Here is the caller graph for this function:

§ speedOfLight()

double Globals::speedOfLight ( ) const

inline

Returns: the speed of light in cm/ns

Definition at line 215 of file Globals.hpp.

§ speedOfLightBig()

double Globals::speedOfLightBig ( ) const

inline

Returns: the speed of light in the Big VANDLE bars in cm/ns

Definition at line 218 of file Globals.hpp.

§ speedOfLightMedium()

double Globals::speedOfLightMedium ( ) const

inline

Returns: the speed of light in the medium VANDLE bars in cm/ns

Definition at line 221 of file Globals.hpp.

§ speedOfLightSmall()

double Globals::speedOfLightSmall ( ) const

inline

Returns: the speed of light in the small VANDLE bars in cm/ns

Definition at line 224 of file Globals.hpp.

§ systemClockFreqInHz()

double Globals::systemClockFreqInHz ( ) const

inline

Returns: the frequency of the system clock in Hz

Definition at line 234 of file Globals.hpp.

§ traceDelay()

double Globals::traceDelay ( ) const

inline

Returns: the trace delay of the traces in ns

Definition at line 237 of file Globals.hpp.

Here is the caller graph for this function:

§ trapFiltPars()

std::pair<TrapFilterParameters, TrapFilterParameters> Globals::trapFiltPars ( const std::string & str ) const

inline

Returns: the trapezoidal filter parameters for the requested detector type:subtype

Definition at line 266 of file Globals.hpp.

Here is the caller graph for this function:

§ WarnOfUnknownParameter()

void Globals::WarnOfUnknownParameter	(	Messenger &	m,
		pugi::xml_node_iterator &	it
	)

private

Warn that we have an unknown parameter in the XML configuration file

Parameters

[in]	m	: an instance of the messenger to send the warning
[in]	it	: an iterator pointing to the location of the unknown

Definition at line 292 of file Globals.cpp.

Here is the call graph for this function:

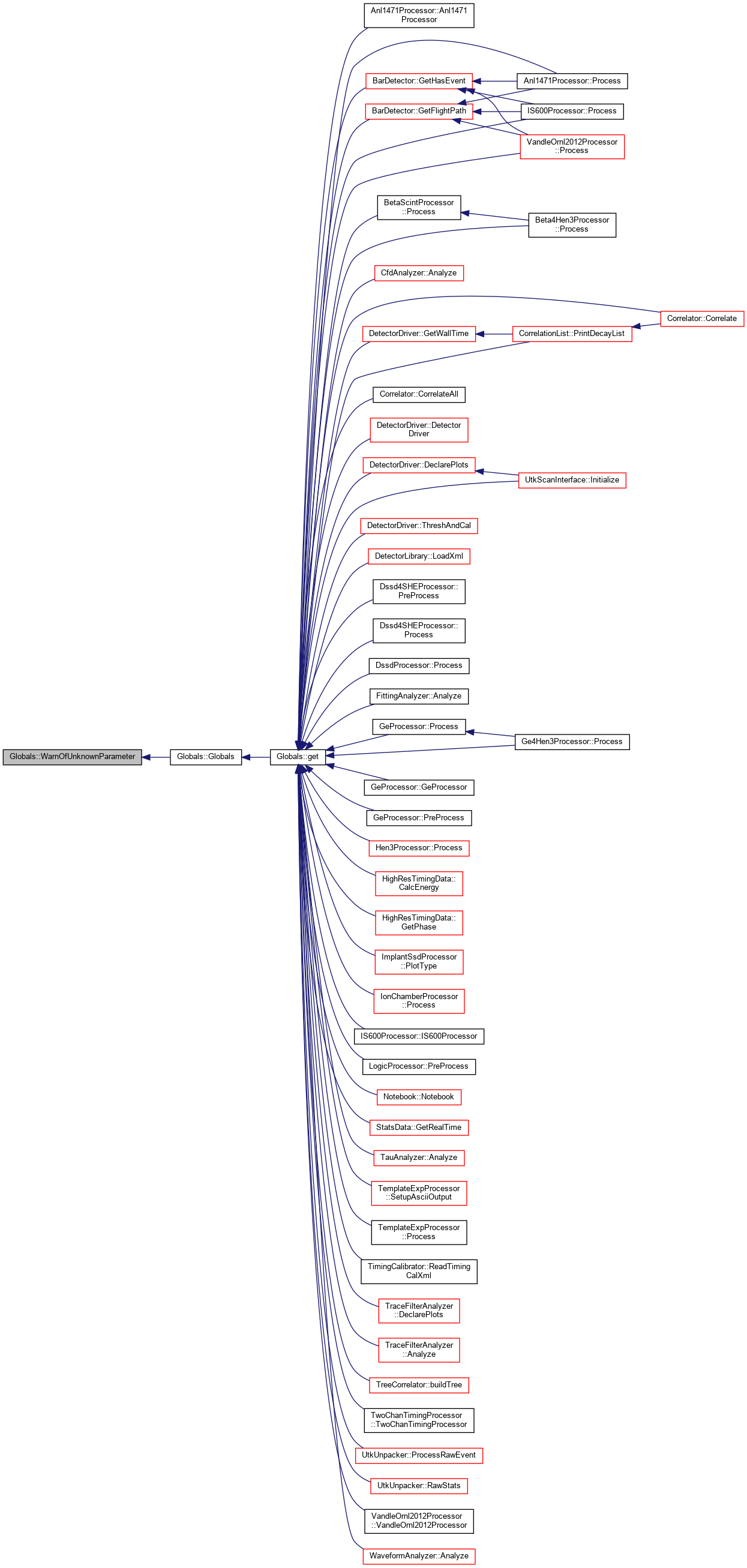

Here is the caller graph for this function:

§ waveformRange()

std::pair<unsigned int, unsigned int> Globals::waveformRange ( const std::string & str ) const

inline

Returns: the waveform range for standard PMT signals

Definition at line 244 of file Globals.hpp.

Here is the caller graph for this function:

Field Documentation

§ adcClockInSeconds_

double Globals::adcClockInSeconds_

private

adc clock in second

Definition at line 322 of file Globals.hpp.

§ bigLength_

double Globals::bigLength_

private

length of big VANDLE bars in cm

Definition at line 328 of file Globals.hpp.

§ bitResolution_

double Globals::bitResolution_

private

The Bit resolution of the digitizer that we used.

Definition at line 323 of file Globals.hpp.

§ cfdPars_

std::map<std::string, std::pair<double, double> > Globals::cfdPars_

private

Map containing all of the parameters to be used in the cfd analyzer for a type:subtype.

Definition at line 346 of file Globals.hpp.

§ clockInSeconds_

double Globals::clockInSeconds_

private

the ACQ clock in seconds

Definition at line 324 of file Globals.hpp.

§ configFile_

std::string Globals::configFile_

private

The configuration file.

Definition at line 350 of file Globals.hpp.

§ discriminationStart_

double Globals::discriminationStart_

private

starting sample for the n-gamma discrimination

Definition at line 325 of file Globals.hpp.

§ eventInSeconds_

double Globals::eventInSeconds_

private

event width in seconds

Definition at line 326 of file Globals.hpp.

§ eventWidth_

int Globals::eventWidth_

private

the size of the events

Definition at line 342 of file Globals.hpp.

§ filterClockInSeconds_

double Globals::filterClockInSeconds_

private

filter clock in seconds

Definition at line 327 of file Globals.hpp.

§ fitPars_

std::map<std::string, std::pair<double, double> > Globals::fitPars_

private

Map containing all of the parameters to be used in the fitting analyzer for a type:subtype.

Definition at line 345 of file Globals.hpp.

§ hasRaw_

bool Globals::hasRaw_

private

True for plotting Raw Histograms in DAMM.

Definition at line 320 of file Globals.hpp.

§ hasReject_

bool Globals::hasReject_

private

Has a rejection region.

Definition at line 319 of file Globals.hpp.

§ instance

Globals * Globals::instance = NULL

staticprivate

Create the static instance of the class.

Definition at line 309 of file Globals.hpp.

§ mediumLength_

double Globals::mediumLength_

private

length of medium VANDLE bars in cm

Definition at line 329 of file Globals.hpp.

§ neutronMass_

double Globals::neutronMass_

private

mass of neutrons in MeV/c/c

Definition at line 330 of file Globals.hpp.

§ numTraces_

unsigned short Globals::numTraces_

private

number of traces to plot

Definition at line 354 of file Globals.hpp.

§ outputFilename_

std::string Globals::outputFilename_

private

Output Filename.

Definition at line 349 of file Globals.hpp.

§ outputPath_

std::string Globals::outputPath_

private

The path to additional configuration files.

Definition at line 351 of file Globals.hpp.

§ qdcCompression_

double Globals::qdcCompression_

private

QDC compression factor for VANDLE related plots.

Definition at line 331 of file Globals.hpp.

§ reject_

std::vector<std::pair<int, int> > Globals::reject_

private

rejection range in time

Definition at line 356 of file Globals.hpp.

§ revision_

std::string Globals::revision_

private

the pixie revision

Definition at line 352 of file Globals.hpp.

§ sigmaBaselineThresh_

double Globals::sigmaBaselineThresh_

private

threshold on fitting for Std dev. of the baseline

Definition at line 333 of file Globals.hpp.

§ siPmtSigmaBaselineThresh_

double Globals::siPmtSigmaBaselineThresh_

private

threshold on fitting for Std dev. of the baseline for SiPMTs

Definition at line 334 of file Globals.hpp.

§ smallLength_

double Globals::smallLength_

private

length of small VANDLE bars in cm

Definition at line 332 of file Globals.hpp.

§ speedOfLight_

double Globals::speedOfLight_

private

speed of light in cm/ns

Definition at line 335 of file Globals.hpp.

§ speedOfLightBig_

double Globals::speedOfLightBig_

private

speed of light in big VANDLE bars in cm/ns

Definition at line 336 of file Globals.hpp.

§ speedOfLightMedium_

double Globals::speedOfLightMedium_

private

speed of light in medium VANDLE bars in cm/ns

Definition at line 337 of file Globals.hpp.

§ speedOfLightSmall_

double Globals::speedOfLightSmall_

private

speed of light in small VANDLE bars in cm/ns

Definition at line 338 of file Globals.hpp.

§ sysClockFreqInHz_

double Globals::sysClockFreqInHz_

private

frequency of the system clock

Definition at line 339 of file Globals.hpp.

§ traceDelay_

double Globals::traceDelay_

private

the trace delay in ns

Definition at line 340 of file Globals.hpp.

§ trapFiltPars_

std::map<std::string, std::pair<TrapFilterParameters, TrapFilterParameters> > Globals::trapFiltPars_

private

Map containing all of the trapezoidal filter parameters for a given type:subtype.

Definition at line 347 of file Globals.hpp.

§ waveformRanges_

std::map<std::string, std::pair<unsigned int, unsigned int> > Globals::waveformRanges_

private

Map containing ranges for the waveforms.

Definition at line 344 of file Globals.hpp.

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

§ ~Globals()

§ Globals() [1/2]

§ Globals() [2/2]

Member Function Documentation

§ adcClockInSeconds()

§ bigLength()

§ bigLengthTime()

§ bitResolution()

§ cfdPars()

§ clockInSeconds()

§ configfile()

§ discriminationStart()

§ eventInSeconds()

§ eventWidth()

§ filterClockInSeconds()

§ fitPars()

§ get() [1/2]

§ get() [2/2]

§ hasRaw()

§ hasReject()

§ mediumLength()

§ mediumLengthTime()

§ neutronMass()

§ numTraces()

§ operator=()

§ outputFile()

§ outputPath()

§ qdcCompression()

§ rejectRegions()

§ revision()

§ SanityCheck()

§ SetOutputFilename()

§ sigmaBaselineThresh()

§ siPmtSigmaBaselineThresh()

§ smallLength()

§ smallLengthTime()

§ speedOfLight()

§ speedOfLightBig()

§ speedOfLightMedium()

§ speedOfLightSmall()

§ systemClockFreqInHz()

§ traceDelay()

§ trapFiltPars()

§ WarnOfUnknownParameter()

§ waveformRange()

Field Documentation

§ adcClockInSeconds_

§ bigLength_

§ bitResolution_

§ cfdPars_

§ clockInSeconds_

§ configFile_

§ discriminationStart_

§ eventInSeconds_

§ eventWidth_

§ filterClockInSeconds_

§ fitPars_

§ hasRaw_

§ hasReject_

§ instance

§ mediumLength_

§ neutronMass_

§ numTraces_

§ outputFilename_

§ outputPath_

§ qdcCompression_

§ reject_

§ revision_

§ sigmaBaselineThresh_

§ siPmtSigmaBaselineThresh_

§ smallLength_

§ speedOfLight_

§ speedOfLightBig_
