poll2_core.h File Reference

Controls the poll2 command interpreter and data acquisition system. More...

#include <vector>
#include "PixieInterface.h"
#include "hribf_buffers.h"

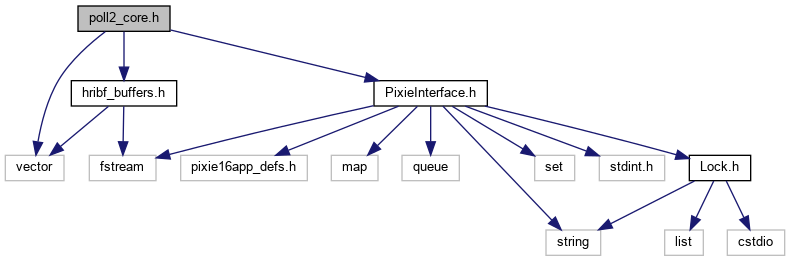

Include dependency graph for poll2_core.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
class	MCA_args
struct	UDP_Packet
struct	data_pack
class	Poll

Macros
#define	maxEventSize   4095
#define	POLL2_CORE_VERSION   "1.4.14"
#define	POLL2_CORE_DATE   "Aug. 17th, 2016"
#define	MAX_ORPH_DATA   1464

Typedefs
typedef PixieInterface::word_t	word_t
typedef word_t	eventdata_t[maxEventSize]

Functions
bool	IsNumeric (const std::string &input_, const std::string &prefix_="", const std::string &msg_="")
std::string	humanReadable (double size)
	Convert a rate number to more useful form. More...
std::string	pad_string (const std::string &input_, unsigned int length_)
	Pad a string with periods until it is the specified length_. More...
std::string	yesno (bool value_)
	Return a string containing "yes" for value_==true and "no" for value_==false. More...

Detailed Description

Controls the poll2 command interpreter and data acquisition system.

The Poll class is used to control the command interpreter and data acqusition systems. Command input and the command line interface of poll2 are handled by the external library CTerminal. Pixie16 data acquisition is handled by interfacing with the PixieInterface library.

Author

Cory R. Thornsberry

Date

Oct. 6th, 2015

Version

1.3.10

Definition in file poll2_core.h.

Macro Definition Documentation

MAX_ORPH_DATA

#define MAX_ORPH_DATA   1464

Definition at line 31 of file poll2_core.h.

maxEventSize

#define maxEventSize   4095

Definition at line 25 of file poll2_core.h.

POLL2_CORE_DATE

#define POLL2_CORE_DATE   "Aug. 17th, 2016"

Definition at line 28 of file poll2_core.h.

POLL2_CORE_VERSION

#define POLL2_CORE_VERSION   "1.4.14"

Definition at line 27 of file poll2_core.h.

Typedef Documentation

eventdata_t

typedef word_t eventdata_t[maxEventSize]

Definition at line 34 of file poll2_core.h.

word_t

typedef PixieInterface::word_t word_t

Definition at line 33 of file poll2_core.h.

Function Documentation

humanReadable()

std::string humanReadable

(

double

size

)

Convert a rate number to more useful form.

Here is the caller graph for this function:

IsNumeric()

bool IsNumeric	(	const std::string &	input_,
		const std::string &	prefix_,
		const std::string &	msg_
	)

IsNumeric: Check if an input string is strictly numeric.

Parameters

[in]	input_	String to check.
[in]	prefix_	String to print before the error message is printed.
[in]	msg_	Error message to print if the value is not numeric.

Returns

true if the string is strictly numeric and false otherwise.

Definition at line 67 of file poll2_core.cpp.

Here is the caller graph for this function:

pad_string()

std::string pad_string	(	const std::string &	input_,
		unsigned int	length_
	)

Pad a string with periods until it is the specified length_.

Here is the caller graph for this function:

yesno()

std::string yesno

(

bool

value_

)

Return a string containing "yes" for value_==true and "no" for value_==false.

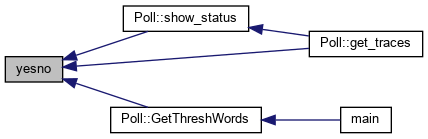

Here is the caller graph for this function:
