#include <ChannelEvent.hpp>
Public Member Functions | |
| ChannelEvent () | |
| The low level pixie event. More... | |
| ChannelEvent (XiaData *event_) | |
| Constructor from a XiaData. ChannelEvent will take ownership of the XiaData. More... | |
| ~ChannelEvent () | |
| Destructor. More... | |
| float | CorrectBaseline () |
| float | FindLeadingEdge (const float &thresh_=0.05) |
| Find the leading edge of the pulse at a given percentage of pulse maximum. More... | |
| float | IntegratePulse (const size_t &start_=0, const size_t &stop_=0) |
| Integrate the baseline corrected trace in the range [start_, stop_] and return the result. More... | |
| float | FindQDC (const size_t &start_=0, const size_t &stop_=0) |
| Integrate the baseline corrected trace in the range [start_, stop_] and return the result. More... | |
| float | AnalyzeCFD (const float &F_=0.5, const size_t &D_=1, const size_t &L_=1) |
| Perform CFD analysis on the waveform. More... | |
| void | Clear () |
| Clear all variables and clear the trace vector and arrays. More... | |
Data Fields | |
| bool | valid_chan |
| double | hires_energy |
| True if the high resolution energy and time are valid. More... | |
| double | hires_time |
| High resolution energy from the integration of pulse fits. More... | |
| float * | xvals |
| High resolution time taken from pulse fits (in ns). More... | |
| float * | yvals |
| x values used for fitting. More... | |
| float * | cfdvals |
| y values used for fitting (baseline corrected trace). More... | |
| size_t | size |
| y values for the cfd analyzed waveform. More... | |
| float | phase |
| Size of xvals and yvals arrays and of trace vector. More... | |
| float | baseline |
| Phase (leading edge) of trace (in ADC clock ticks (4E-9 Hz for 250 MHz digitizer)). More... | |
| float | stddev |
| The baseline of the trace. More... | |
| float | maximum |
| Standard deviation of the baseline. More... | |
| float | qdc |
| The baseline corrected maximum value of the trace. More... | |
| float | cfdCrossing |
| The calculated (baseline corrected) qdc. More... | |
| size_t | max_index |
| The zero-crossing point of the cfd waveform. More... | |
| bool | baseline_corrected |
| The index of the maximum trace bin (in ADC clock ticks). More... | |
| bool | ignore |
| True if the trace has been baseline corrected. More... | |
| XiaData * | event |
| Ignore this event. More... | |
Detailed Description
Definition at line 12 of file ChannelEvent.hpp.
Constructor & Destructor Documentation
§ ChannelEvent() [1/2]
| ChannelEvent::ChannelEvent | ( | ) |
The low level pixie event.
Default constructor.
Definition at line 10 of file ChannelEvent.cpp.
§ ChannelEvent() [2/2]
| ChannelEvent::ChannelEvent | ( | XiaData * | event_ | ) |
Constructor from a XiaData. ChannelEvent will take ownership of the XiaData.
Definition at line 19 of file ChannelEvent.cpp.
§ ~ChannelEvent()
| ChannelEvent::~ChannelEvent | ( | ) |
Destructor.
Definition at line 33 of file ChannelEvent.cpp.
Member Function Documentation
§ AnalyzeCFD()
| float ChannelEvent::AnalyzeCFD | ( | const float & | F_ = 0.5, |
| const size_t & | D_ = 1, |
||
| const size_t & | L_ = 1 |
||
| ) |
Perform CFD analysis on the waveform.
Definition at line 118 of file ChannelEvent.cpp.
§ Clear()
| void ChannelEvent::Clear | ( | ) |
Clear all variables and clear the trace vector and arrays.
Definition at line 158 of file ChannelEvent.cpp.

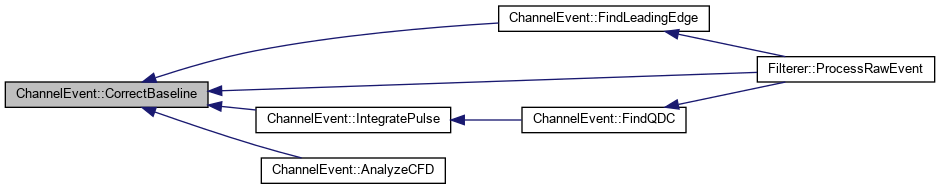

§ CorrectBaseline()
| float ChannelEvent::CorrectBaseline | ( | ) |
These methods need to be removed. At a later date. Correct the trace baseline, baseline standard deviation, and find the pulse maximum.
Definition at line 39 of file ChannelEvent.cpp.
§ FindLeadingEdge()
| float ChannelEvent::FindLeadingEdge | ( | const float & | thresh_ = 0.05 | ) |
Find the leading edge of the pulse at a given percentage of pulse maximum.
Definition at line 74 of file ChannelEvent.cpp.
§ FindQDC()
| float ChannelEvent::FindQDC | ( | const size_t & | start_ = 0, |
| const size_t & | stop_ = 0 |
||
| ) |
Integrate the baseline corrected trace in the range [start_, stop_] and return the result.
Definition at line 109 of file ChannelEvent.cpp.
§ IntegratePulse()
| float ChannelEvent::IntegratePulse | ( | const size_t & | start_ = 0, |
| const size_t & | stop_ = 0 |
||
| ) |
Integrate the baseline corrected trace in the range [start_, stop_] and return the result.
Definition at line 96 of file ChannelEvent.cpp.
Field Documentation
§ baseline
| float ChannelEvent::baseline |
Phase (leading edge) of trace (in ADC clock ticks (4E-9 Hz for 250 MHz digitizer)).
Definition at line 25 of file ChannelEvent.hpp.
§ baseline_corrected
| bool ChannelEvent::baseline_corrected |
The index of the maximum trace bin (in ADC clock ticks).
Definition at line 32 of file ChannelEvent.hpp.
§ cfdCrossing
| float ChannelEvent::cfdCrossing |
The calculated (baseline corrected) qdc.
Definition at line 29 of file ChannelEvent.hpp.
§ cfdvals
| float* ChannelEvent::cfdvals |
y values used for fitting (baseline corrected trace).
Definition at line 21 of file ChannelEvent.hpp.
§ event
| XiaData* ChannelEvent::event |
Ignore this event.
Definition at line 35 of file ChannelEvent.hpp.
§ hires_energy
| double ChannelEvent::hires_energy |
True if the high resolution energy and time are valid.
Definition at line 16 of file ChannelEvent.hpp.
§ hires_time
| double ChannelEvent::hires_time |
High resolution energy from the integration of pulse fits.
Definition at line 17 of file ChannelEvent.hpp.
§ ignore
| bool ChannelEvent::ignore |
True if the trace has been baseline corrected.
Definition at line 33 of file ChannelEvent.hpp.
§ max_index
| size_t ChannelEvent::max_index |
The zero-crossing point of the cfd waveform.
Definition at line 30 of file ChannelEvent.hpp.
§ maximum
| float ChannelEvent::maximum |
Standard deviation of the baseline.
Definition at line 27 of file ChannelEvent.hpp.
§ phase
| float ChannelEvent::phase |
Size of xvals and yvals arrays and of trace vector.
Definition at line 24 of file ChannelEvent.hpp.
§ qdc
| float ChannelEvent::qdc |
The baseline corrected maximum value of the trace.
Definition at line 28 of file ChannelEvent.hpp.
§ size
| size_t ChannelEvent::size |
y values for the cfd analyzed waveform.
Definition at line 22 of file ChannelEvent.hpp.
§ stddev
| float ChannelEvent::stddev |
The baseline of the trace.
Definition at line 26 of file ChannelEvent.hpp.
§ valid_chan
| bool ChannelEvent::valid_chan |
Definition at line 14 of file ChannelEvent.hpp.
§ xvals
| float* ChannelEvent::xvals |
High resolution time taken from pulse fits (in ns).
Definition at line 19 of file ChannelEvent.hpp.
§ yvals
| float* ChannelEvent::yvals |
x values used for fitting.
Definition at line 20 of file ChannelEvent.hpp.
The documentation for this class was generated from the following files:
