set2root.cpp File Reference

A program to convert a pixie16 binary .set file into a root file. More...

#include <iostream>
#include <sstream>
#include <fstream>
#include "set2root.hpp"

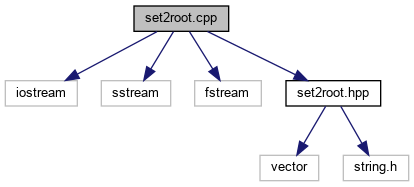

Include dependency graph for set2root.cpp:

Go to the source code of this file.

Macros
#define	FILTER_CLOCK   8E-3
#define	ADC_CLOCK   4E-3
#define	READ_SIZE   1280

Functions
parameter *	findParameter (std::vector< parameter > &params, const unsigned int &offset_)
bool	readVarFile (std::vector< parameter > &params, const char *var_filename_)
int	readSetFile (std::vector< parameter > &params, const char *set_filename_, const size_t &offset_, const size_t &len_=READ_SIZE)
void	closeFile (std::ofstream &f_)
void	help (char *prog_name_)
int	main (int argc, char *argv[])

Detailed Description

A program to convert a pixie16 binary .set file into a root file.

This program reads a pixie16 dsp variable file (.var) and a binary .set file and outputs a .root file containing the names of the pixie16 parameters and their values.

Author

C. R. Thornsberry

Date

May 18th, 2016

Definition in file set2root.cpp.

Macro Definition Documentation

ADC_CLOCK

#define ADC_CLOCK   4E-3

Definition at line 23 of file set2root.cpp.

FILTER_CLOCK

#define FILTER_CLOCK   8E-3

Definition at line 22 of file set2root.cpp.

READ_SIZE

#define READ_SIZE   1280

Definition at line 24 of file set2root.cpp.

Function Documentation

closeFile()

void closeFile

(

std::ofstream &

f_

)

Definition at line 181 of file set2root.cpp.

Here is the caller graph for this function:

findParameter()

parameter* findParameter	(	std::vector< parameter > &	params,
		const unsigned int &	offset_
	)

Find a parameter with a given file offset. This function returns NULL if a match was not found, and a returns a pointer to a parameter object upon success. param[in] params : Vector filled with parameter objects. param[in] offset_ : Set file offset to attempt to match.

Definition at line 85 of file set2root.cpp.

Here is the caller graph for this function:

help()

void help

(

char *

prog_name_

)

Definition at line 186 of file set2root.cpp.

Here is the caller graph for this function:

main()

int main	(	int	argc,
		char *	argv[]
	)

Definition at line 190 of file set2root.cpp.

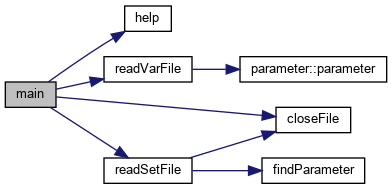

Here is the call graph for this function:

readSetFile()

int readSetFile	(	std::vector< parameter > &	params,
		const char *	set_filename_,
		const size_t &	offset_,
		const size_t &	len_ = READ_SIZE
	)

Read a pixie16 .set file and store the integer values in a vector of parameter objects. This function returns -1 if an error occured, and the number of entries read upon success. param[in] params : Vector filled with parameter objects. param[in] set_filename_ : Filename of the .set file to read. param[in] offset_ : The number of words to skip at the beginning of the file. param[in] len_ : The number of words to read form the file.

Definition at line 136 of file set2root.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

readVarFile()

bool readVarFile	(	std::vector< parameter > &	params,
		const char *	var_filename_
	)

Read a pixie16 .var dsp file and store the parameter names and offsets in a vector of parameter objects. This function returns false if an error occured, and true upon success. param[out] params : Vector to be filled with parameter objects. param[in] var_filename_ : Filename of the .var file to read.

Definition at line 98 of file set2root.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:
