MCA_ROOT Class Reference
#include <MCA_ROOT.h>
Inheritance diagram for MCA_ROOT:

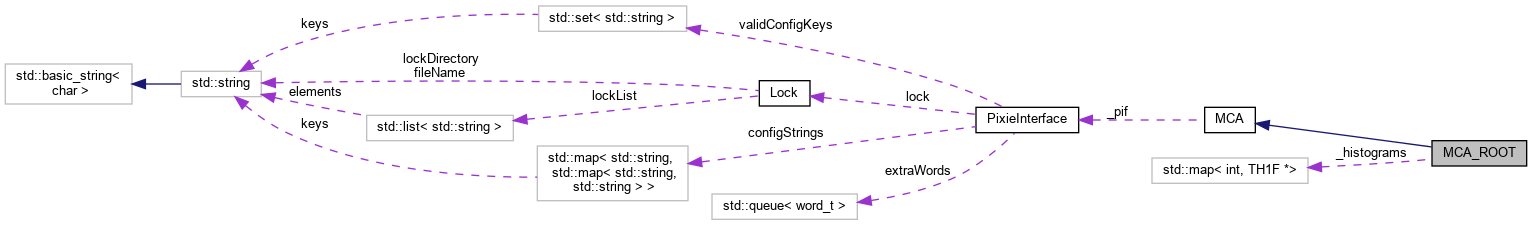

Collaboration diagram for MCA_ROOT:
Data Structures | |
| class | cerr_redirect |
| A class to handle redirecting stderr. More... | |
Public Member Functions | |
| MCA_ROOT (PixieInterface *pif, const char *basename) | |
| Default constructor. More... | |
| ~MCA_ROOT () | |
| Defaul destructor. More... | |
| bool | StoreData (int mod, int ch) |
| Abstract method describing how the MCA data is stored. More... | |
| void | Flush () |
| Flush the current memory to disk. More... | |
| bool | OpenFile (const char *basename) |
| Abstract method to open a storage file. More... | |
| TH1F * | GetHistogram (int mod, int ch) |
| void | Reset () |
 Public Member Functions inherited from MCA | |
| MCA (PixieInterface *pif) | |
| Default constructor. More... | |
| virtual | ~MCA () |
| Default destructor. More... | |
| double | GetRunTime () |
| Return the length of time the MCA has been running. More... | |
| virtual bool | IsOpen () |
| Check if the histogram construction was successful. More... | |
| virtual void | Run (float duration, bool *stop=NULL) |
| Start the MCA running. More... | |
| virtual bool | Step () |
| Update the MCA histograms. More... | |
Private Attributes | |
| TFile * | _file |
| std::map< int, TH1F * > | _histograms |
Additional Inherited Members | |
| Protected Attributes inherited from MCA | |
| time_t | start_time |
| Timers for the MCA object. More... | |
| time_t | stop_time |
| bool | _isOpen |
| Flag indicating if histogram construction was successful. More... | |
| PixieInterface * | _pif |
| Pointer to the PixieInterface. More... | |
| Static Protected Attributes inherited from MCA | |
| static const size_t | HIS_SIZE = 16384 |
| Default number of bins in histogram. More... | |
| static const size_t | ADC_SIZE = 32768 |
| Default number of channels in ADC. More... | |
Detailed Description
Definition at line 11 of file MCA_ROOT.h.
Constructor & Destructor Documentation
§ MCA_ROOT()
| MCA_ROOT::MCA_ROOT | ( | PixieInterface * | pif, |
| const char * | basename | ||
| ) |
Default constructor.
Definition at line 8 of file MCA_ROOT.cpp.

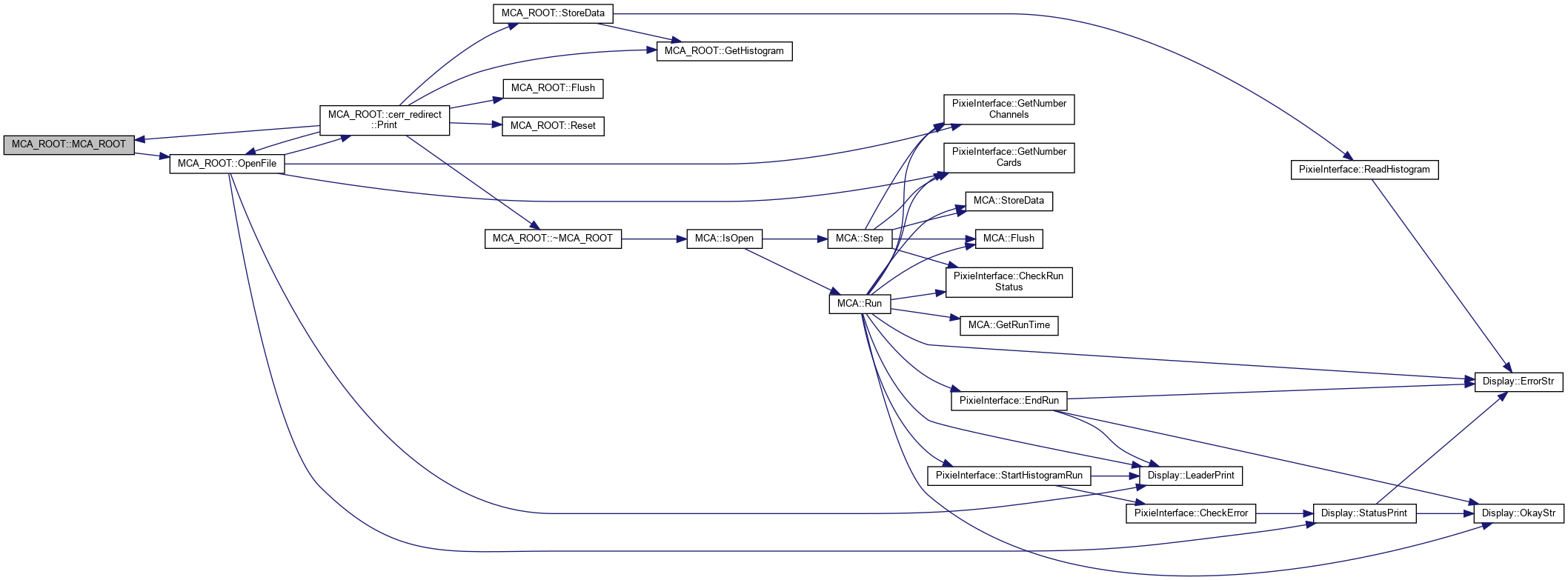

Here is the call graph for this function:
Here is the caller graph for this function:
§ ~MCA_ROOT()
| MCA_ROOT::~MCA_ROOT | ( | ) |
Defaul destructor.
Definition at line 13 of file MCA_ROOT.cpp.

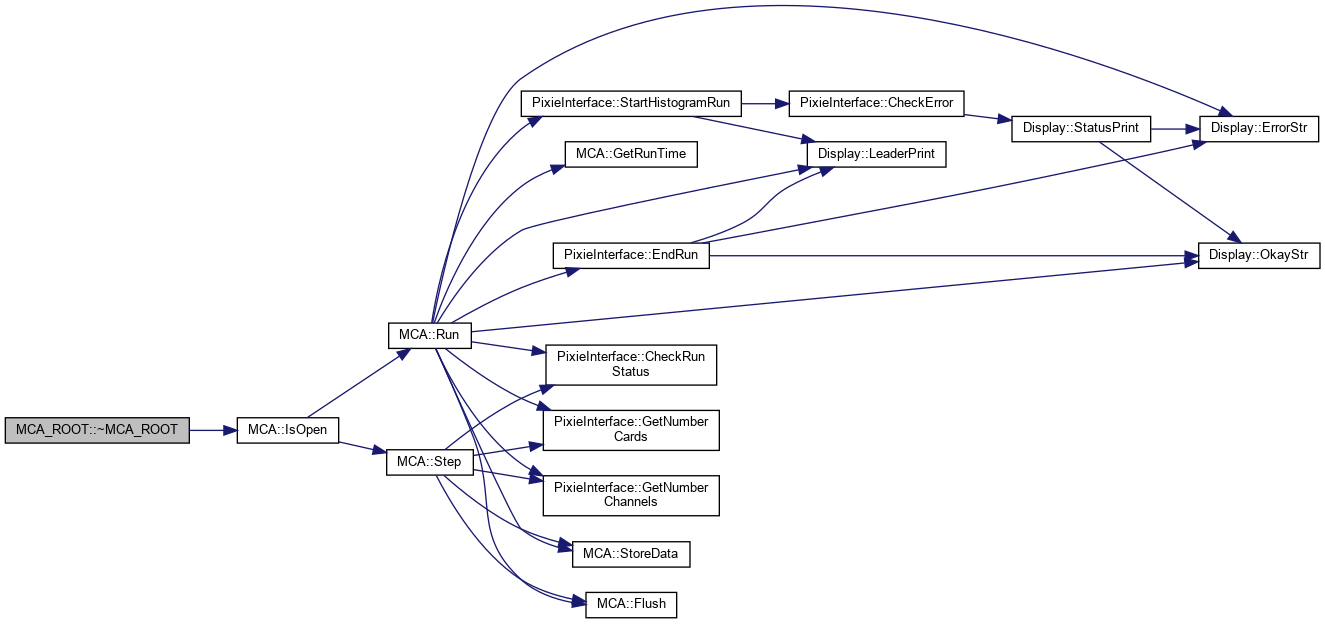

Here is the call graph for this function:
Here is the caller graph for this function:
Member Function Documentation
§ Flush()
|
virtual |
Flush the current memory to disk.
Implements MCA.
Definition at line 81 of file MCA_ROOT.cpp.
Here is the caller graph for this function:

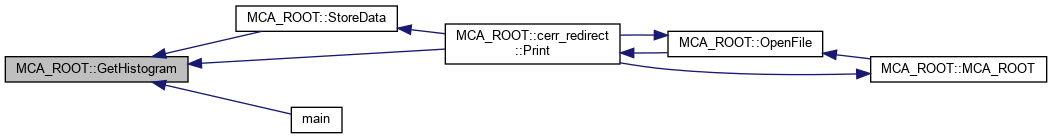

§ GetHistogram()
| TH1F * MCA_ROOT::GetHistogram | ( | int | mod, |
| int | ch | ||
| ) |
§ OpenFile()
|
virtual |
Abstract method to open a storage file.
Implements MCA.
Definition at line 21 of file MCA_ROOT.cpp.

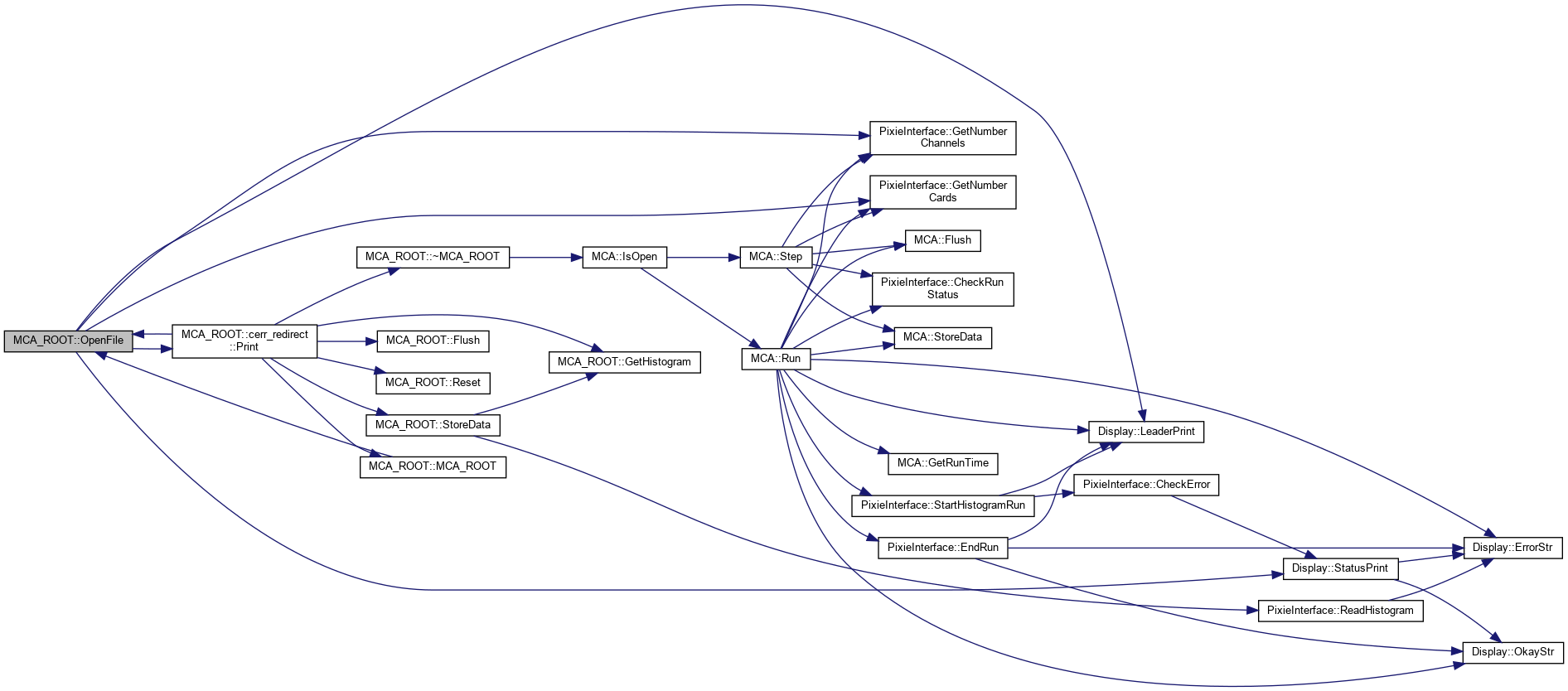

Here is the call graph for this function:

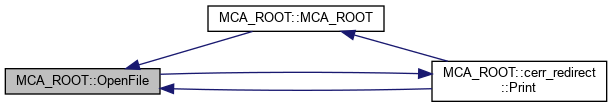

Here is the caller graph for this function:
§ Reset()
| void MCA_ROOT::Reset | ( | ) |
§ StoreData()
|
virtual |
Abstract method describing how the MCA data is stored.
Implements MCA.
Definition at line 61 of file MCA_ROOT.cpp.
Here is the call graph for this function:
Here is the caller graph for this function:
Field Documentation
§ _file
|
private |
Definition at line 13 of file MCA_ROOT.h.
§ _histograms
|
private |
Definition at line 14 of file MCA_ROOT.h.
The documentation for this class was generated from the following files:
