Server Class Reference

#include <poll2_socket.h>

Public Member Functions
	Server ()
	~Server ()
int	Get ()
bool	Init (int port_, int sec_=10, int usec_=0)
	Initialize the serv object and open a specified port. Returns false if the socket fails to open or the socket fails to bind and returns true otherwise. More...
int	RecvMessage (char *message_, size_t length_)
int	SendMessage (char *message_, size_t length_)
bool	Select (int &retval)
void	Close ()
	Close the socket. More...

Private Attributes
int	sock
int	length
int	n
socklen_t	fromlen
struct sockaddr_in	serv
struct sockaddr_in	from
bool	init
int	to_sec
int	to_usec
fd_set	readfds
fd_set	masterfds
struct timeval	timeout

Detailed Description

Definition at line 23 of file poll2_socket.h.

Constructor & Destructor Documentation

Server()

Server::Server ( )

inline

Definition at line 36 of file poll2_socket.h.

~Server()

Server::~Server ( )

inline

Definition at line 38 of file poll2_socket.h.

Here is the call graph for this function:

Member Function Documentation

Close()

void Server::Close

(

)

Close the socket.

Definition at line 93 of file poll2_socket.cpp.

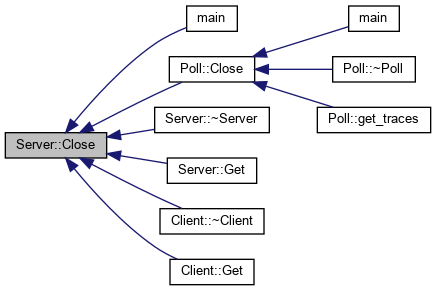

Here is the caller graph for this function:

Get()

int Server::Get ( )

inline

Definition at line 40 of file poll2_socket.h.

Here is the call graph for this function:

Init()

bool Server::Init	(	int	port_,
		int	sec_ = 10,
		int	usec_ = 0
	)

Initialize the serv object and open a specified port. Returns false if the socket fails to open or the socket fails to bind and returns true otherwise.

Parameters

[in]	port_	The port number to use for the connection.
[in]	sec_	The number of seconds to wait for recieve timeout message.
[in]	usec_	The number of microseconds in addition to the above seconds to wait for recieve timeout message.

Returns

Returns false if the socket fails to open or bind.

Definition at line 40 of file poll2_socket.cpp.

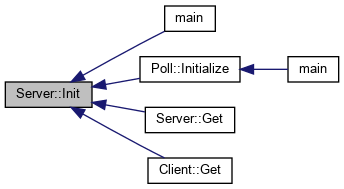

Here is the caller graph for this function:

RecvMessage()

int Server::RecvMessage	(	char *	message_,
		size_t	length_
	)

Receive a message from the socket. Returns the number of bytes received. Returns -1 if the receive fails or if the object was not initialized.

Definition at line 63 of file poll2_socket.cpp.

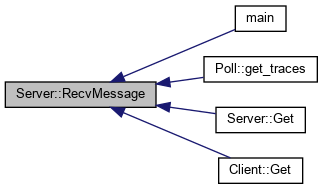

Here is the caller graph for this function:

Select()

bool Server::Select

(

int &

retval

)

Definition at line 79 of file poll2_socket.cpp.

Here is the caller graph for this function:

SendMessage()

int Server::SendMessage	(	char *	message_,
		size_t	length_
	)

Send a message to the socket. Returns the number of bytes sent. Returns -1 if the send fails or if the object was not initialized.

Definition at line 73 of file poll2_socket.cpp.

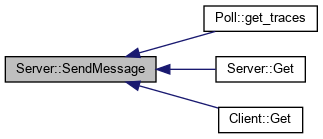

Here is the caller graph for this function:

Field Documentation

from

struct sockaddr_in Server::from

private

Definition at line 28 of file poll2_socket.h.

fromlen

socklen_t Server::fromlen

private

Definition at line 26 of file poll2_socket.h.

init

bool Server::init

private

Definition at line 29 of file poll2_socket.h.

length

int Server::length

private

Definition at line 25 of file poll2_socket.h.

masterfds

fd_set Server::masterfds

private

Definition at line 32 of file poll2_socket.h.

n

int Server::n

private

Definition at line 25 of file poll2_socket.h.

readfds

fd_set Server::readfds

private

Definition at line 32 of file poll2_socket.h.

serv

struct sockaddr_in Server::serv

private

Definition at line 27 of file poll2_socket.h.

sock

int Server::sock

private

Definition at line 25 of file poll2_socket.h.

timeout

struct timeval Server::timeout

private

Definition at line 33 of file poll2_socket.h.

to_sec

int Server::to_sec

private

Definition at line 31 of file poll2_socket.h.

to_usec

int Server::to_usec

private

Definition at line 31 of file poll2_socket.h.

---

The documentation for this class was generated from the following files:

• poll2_socket.h
• poll2_socket.cpp
