Processor to calculate the position in SSDs. More...

#include <PositionProcessor.hpp>

Inheritance diagram for PositionProcessor:

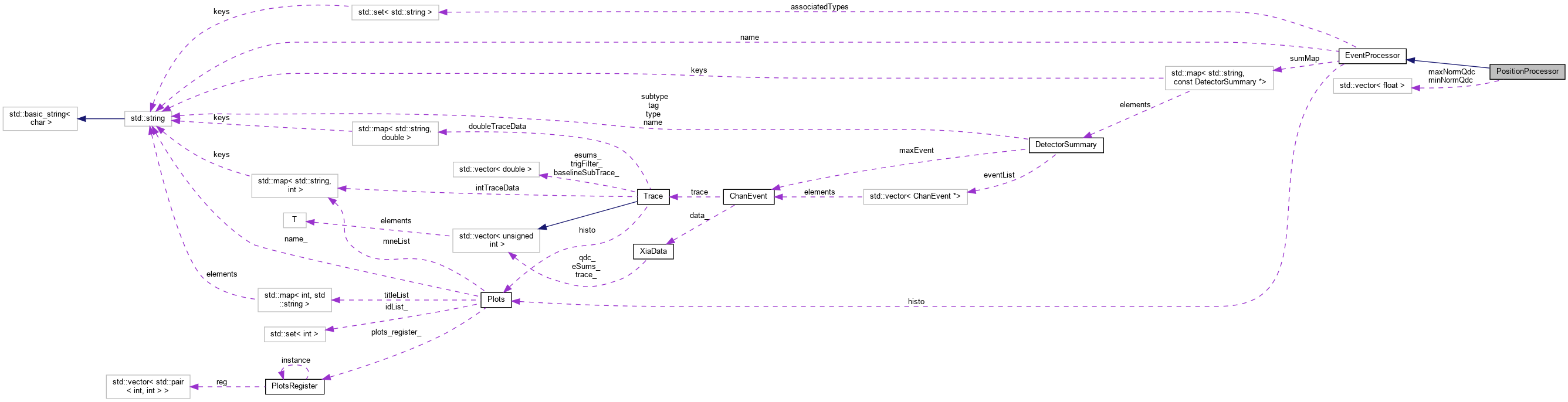

Collaboration diagram for PositionProcessor:

[legend]

Public Member Functions
	PositionProcessor ()

virtual bool	Init (RawEvent &rawev)
	Reads in QDC parameters from an input file. More...

virtual bool	Process (RawEvent &event)
	Process the QDC data involved in top/bottom side for a strip. More...

virtual void	DeclarePlots (void)

Public Member Functions inherited from EventProcessor
	EventProcessor ()

	EventProcessor (int offset, int range, std::string name)

virtual	~EventProcessor ()

virtual const std::set< std::string > &	GetTypes (void) const

virtual bool	DidProcess (void) const

virtual bool	HasEvent (void) const

virtual bool	PreProcess (RawEvent &event)

void	EndProcess (void)

std::string	GetName (void) const

Private Member Functions
ChanEvent *	FindMatchingEdge (ChanEvent match, std::vector< ChanEvent >::const_iterator begin, std::vector< ChanEvent *>::const_iterator end) const

ChanEvent *	FindMatchingEdge (ChanEvent match, std::vector< ChanEvent >::const_reverse_iterator begin, std::vector< ChanEvent *>::const_reverse_iterator end) const

Private Attributes
float	qdcLen [numQdcs]
	the length of each qdc in pixie samples More...

float	qdcPos [numQdcs]
	the ending sample number for each QDC position More...

float	totLen
	calculated length of all qdcs excluding baseline qdc More...

int	whichQdc
	which qdc we are using for position determinatio More...

int	numLocations
	number of locations in the processor More...

float	posScale
	an arbitrary scale for the position parameter to physical units More...

std::vector< float >	minNormQdc
	the minimum normalized qdc observed for a location More...

std::vector< float >	maxNormQdc
	the maximum normalized qdc observed for a location More...

Static Private Attributes
static const int	numQdcs = 8
	number of QDCs to compute More...

static const int	matchingTimeCut = 5
	maximum difference between edge and sum timestamps More...

static const int	maxNumLocations = 12
	maximum number of locations More...

Additional Inherited Members
Protected Member Functions inherited from EventProcessor
virtual void	plot (int dammId, double val1, double val2=-1, double val3=-1, const char *name="h")
	Implementation of the plot command to interface with the DAMM routines. More...

virtual void	DeclareHistogram1D (int dammId, int xSize, const char *title)
	Declares a 1D histogram calls the C++ wrapper for DAMM. More...

virtual void	DeclareHistogram2D (int dammId, int xSize, int ySize, const char *title)
	Declares a 2D histogram calls the C++ wrapper for DAMM. More...

Protected Attributes inherited from EventProcessor
std::string	name
	Name of the Processor. More...

std::set< std::string >	associatedTypes
	Set of associated types for Processor. More...

bool	initDone
	True if the initialization has finished. More...

bool	didProcess
	True if the process finished. More...

std::map< std::string, const DetectorSummary * >	sumMap
	Map of associated detector summary. More...

Plots	histo

Detailed Description

Processor to calculate the position in SSDs.

Definition at line 17 of file PositionProcessor.hpp.

Constructor & Destructor Documentation

§ PositionProcessor()

PositionProcessor::PositionProcessor ( )

Definition at line 55 of file PositionProcessor.cpp.

Member Function Documentation

§ DeclarePlots()

void PositionProcessor::DeclarePlots ( void )

virtual

Declares the plots for the processor

Reimplemented from EventProcessor.

Definition at line 146 of file PositionProcessor.cpp.

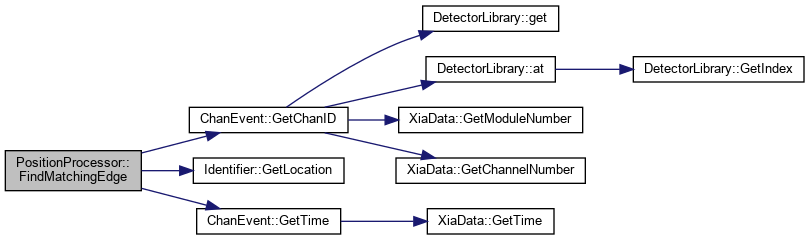

Here is the call graph for this function:

§ FindMatchingEdge() [1/2]

ChanEvent * PositionProcessor::FindMatchingEdge	(	ChanEvent *	match,
		std::vector< ChanEvent *>::const_iterator	begin,
		std::vector< ChanEvent *>::const_iterator	end
	)		const

private

Find the matching edge of the SSD

Parameters

[in]	match	: the matching edge
[in]	begin	: an iterator to the beginning of the event
[in]	end	: an iterator to the end of the event

Returns: a pointer to the matching ChanEvent

Definition at line 427 of file PositionProcessor.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

§ FindMatchingEdge() [2/2]

ChanEvent * PositionProcessor::FindMatchingEdge	(	ChanEvent *	match,
		std::vector< ChanEvent *>::const_reverse_iterator	begin,
		std::vector< ChanEvent *>::const_reverse_iterator	end
	)		const

private

Find the matching edge of the SSD

Parameters

[in]	match	: the matching edge
[in]	begin	: an iterator to the beginning of the event
[in]	end	: an iterator to the end of the event

Returns: a pointer to the matching ChanEvent

Definition at line 439 of file PositionProcessor.cpp.

Here is the call graph for this function:

§ Init()

bool PositionProcessor::Init ( RawEvent & rawev )

virtual

Reads in QDC parameters from an input file.

The file format allows comment lines at the beginning Followed by QDC lengths Which QDC to use for position calculation followed by the amount to scale the [0,1] result by to physical units And min and max values of the normalized QDC for each location in form: (location) (min) (max) Note that QDC 0 is considered to be a baseline section of the trace for baseline removal for the other QDCs

Parameters

[in] rawev : the raw event to get the data from

Returns: true if everything was successful

Reimplemented from EventProcessor.

Definition at line 60 of file PositionProcessor.cpp.

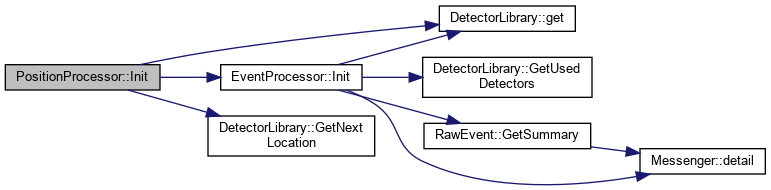

Here is the call graph for this function:

§ Process()

bool PositionProcessor::Process ( RawEvent & event )

virtual

Process the QDC data involved in top/bottom side for a strip.

Note: QDC lengths are HARD-CODED at the moment for the plots and to determine the position

Parameters

[in] event : the event to process

Returns: true if the processing was successful

Reimplemented from EventProcessor.

Definition at line 232 of file PositionProcessor.cpp.

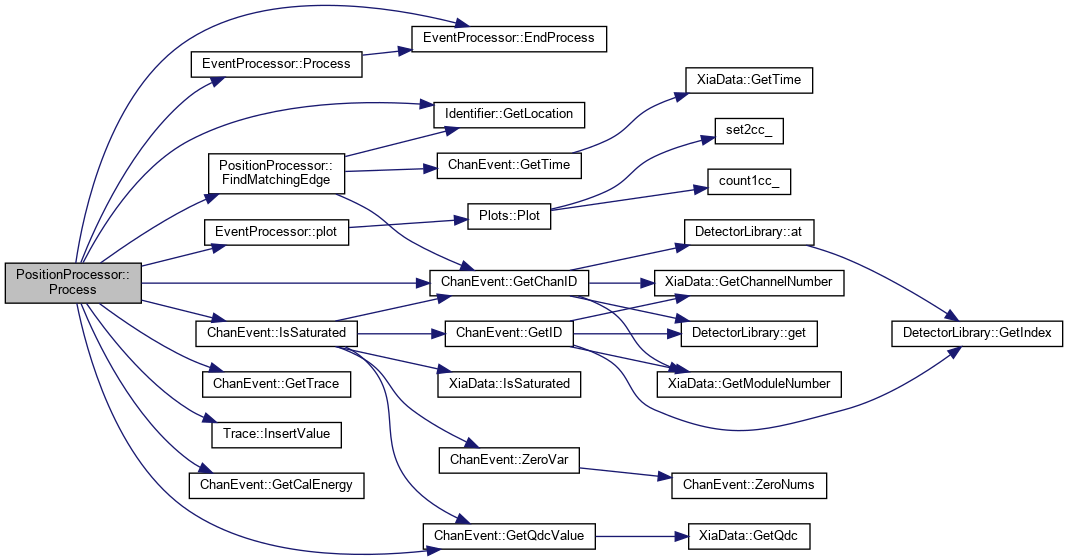

Here is the call graph for this function:

Field Documentation

§ matchingTimeCut

const int PositionProcessor::matchingTimeCut = 5

staticprivate

maximum difference between edge and sum timestamps

Definition at line 20 of file PositionProcessor.hpp.

§ maxNormQdc

std::vector<float> PositionProcessor::maxNormQdc

private

the maximum normalized qdc observed for a location

Definition at line 30 of file PositionProcessor.hpp.

§ maxNumLocations

const int PositionProcessor::maxNumLocations = 12

staticprivate

maximum number of locations

Definition at line 26 of file PositionProcessor.hpp.

§ minNormQdc

std::vector<float> PositionProcessor::minNormQdc

private

the minimum normalized qdc observed for a location

Definition at line 29 of file PositionProcessor.hpp.

§ numLocations

int PositionProcessor::numLocations

private

number of locations in the processor

Definition at line 27 of file PositionProcessor.hpp.

§ numQdcs

const int PositionProcessor::numQdcs = 8

staticprivate

number of QDCs to compute

Definition at line 19 of file PositionProcessor.hpp.

§ posScale

float PositionProcessor::posScale

private

an arbitrary scale for the position parameter to physical units

Definition at line 28 of file PositionProcessor.hpp.

§ qdcLen

float PositionProcessor::qdcLen[numQdcs]

private

the length of each qdc in pixie samples

Definition at line 22 of file PositionProcessor.hpp.

§ qdcPos

float PositionProcessor::qdcPos[numQdcs]

private

the ending sample number for each QDC position

Definition at line 23 of file PositionProcessor.hpp.

§ totLen

float PositionProcessor::totLen

private

calculated length of all qdcs excluding baseline qdc

Definition at line 24 of file PositionProcessor.hpp.

§ whichQdc

int PositionProcessor::whichQdc

private

which qdc we are using for position determinatio

Definition at line 25 of file PositionProcessor.hpp.
