#include <Skeleton.hpp>

Inheritance diagram for skeletonScanner:

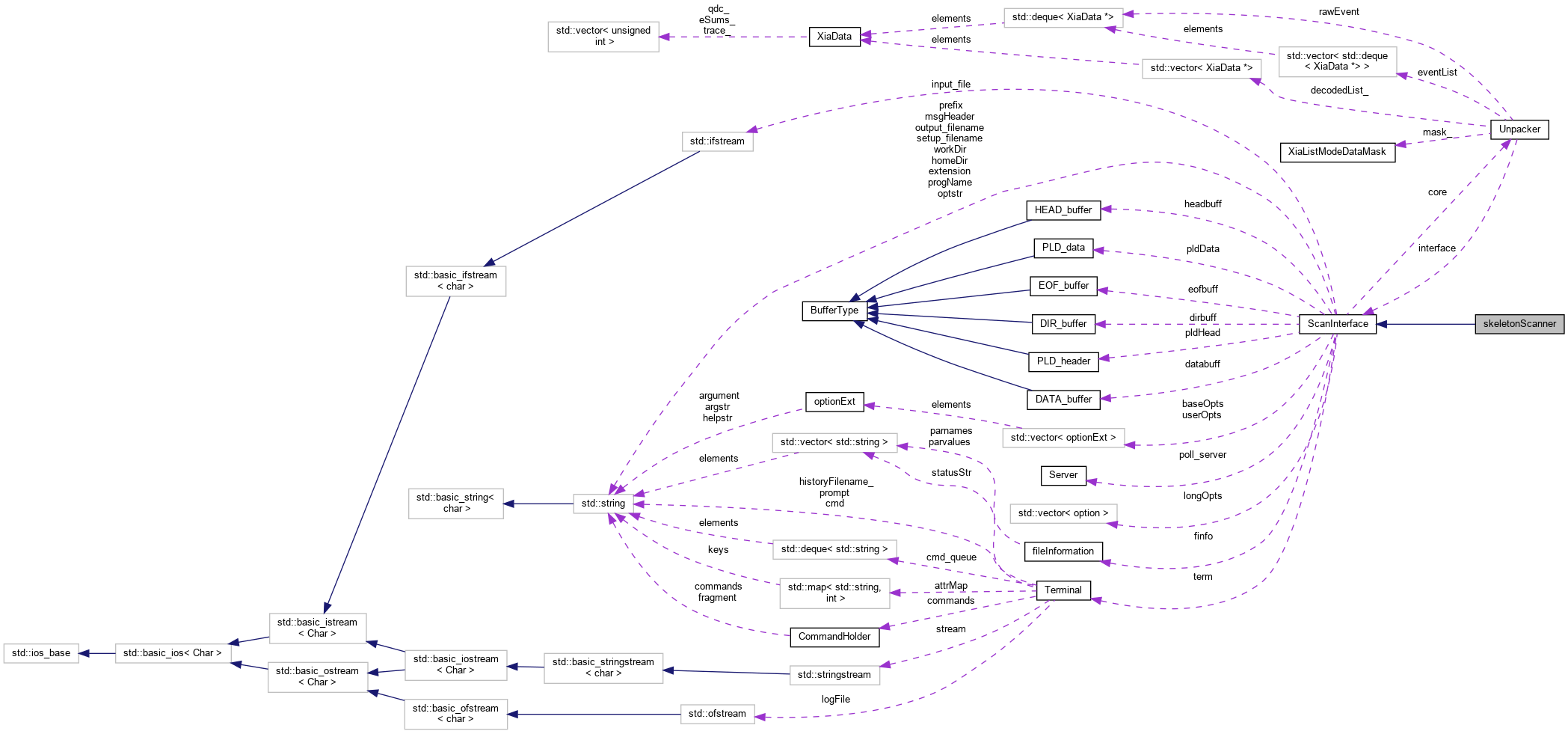

Collaboration diagram for skeletonScanner:

[legend]

Public Member Functions
	skeletonScanner ()
	Default constructor. More...

	~skeletonScanner ()
	Destructor. More...

virtual bool	ExtraCommands (const std::string &cmd_, std::vector< std::string > &args_)

virtual void	ExtraArguments ()

virtual void	CmdHelp (const std::string &prefix_="")

virtual void	ArgHelp ()

virtual void	SyntaxStr (char *name_)

virtual void	IdleTask ()

virtual bool	Initialize (std::string prefix_="")

virtual void	FinalInitialization ()

virtual bool	InitRootOutput (std::string fname_, bool overwrite_=true)

virtual void	Notify (const std::string &code_="")

virtual Unpacker *	GetCore ()

virtual bool	AddEvent (XiaData *event_)

virtual bool	ProcessEvents ()

Public Member Functions inherited from ScanInterface
	ScanInterface (Unpacker *core_=NULL)
	Default constructor. More...

virtual	~ScanInterface ()
	Default destructor. More...

bool	IsInit ()
	Return true if the ScanInterface object has been initialized. More...

bool	IsVerbose ()
	Return true if verbose output mode is enabled. More...

bool	DebugMode ()
	Return true if debug mode is enabled. More...

bool	DryRunMode ()
	Return true if dry run mode is enabled. More...

bool	ShmMode ()
	Return true if shared memory mode is enabled. More...

bool	BatchMode ()
	Return true if batch processing mode is enabled. More...

std::string	GetMessageHeader ()
	Return the header string used to prefix output messages. More...

std::string	GetProgramName ()
	Return the name of the program. More...

std::string	GetSetupFilename ()

std::string	GetOutputFilename ()

fileInformation *	GetFileInfo ()
	Return a pointer to a fileInformation object used to store file header info. More...

void	SetProgramName (const std::string &head_)
	Set the header string used to prefix output messages. More...

bool	SetVerboseMode (bool state_=true)
	Enable or disable verbose output mode. More...

bool	SetDebugMode (bool state_=true)
	Enable or disable debug mode. More...

bool	SetDryRunMode (bool state_=true)
	Enable or disable dry run mode. More...

bool	SetShmMode (bool state_=true)
	Enable or disable shared memory mode. More...

bool	SetBatchMode (bool state_=true)
	Enable or disable batch processing mode. More...

void	RunControl ()
	Main scan control method. More...

void	CmdControl ()
	Main command interpreter method. More...

bool	Setup (int argc, char *argv[])
	Setup user options and initialize all required objects. More...

int	Execute ()
	Run the program. More...

bool	Close ()
	Shutdown cleanly. More...

Private Attributes
bool	init

Additional Inherited Members
Protected Member Functions inherited from ScanInterface
void	AddOption (optionExt opt_)
	Pointer to class derived from Unpacker class. More...

Protected Attributes inherited from ScanInterface
std::string	msgHeader

std::string	progName
	The string to print before program output. More...

std::vector< option >	longOpts
	The name of the program. More...

std::vector< optionExt >	baseOpts
	Vector of all command line options. More...

std::vector< optionExt >	userOpts
	Base level command line options for the scan. More...

std::string	optstr
	User added command line options. More...

Unpacker *	core

Detailed Description

Definition at line 40 of file Skeleton.hpp.

Constructor & Destructor Documentation

§ skeletonScanner()

skeletonScanner::skeletonScanner ( )

Default constructor.

Definition at line 62 of file Skeleton.cpp.

Here is the caller graph for this function:

§ ~skeletonScanner()

skeletonScanner::~skeletonScanner ( )

Destructor.

Definition at line 67 of file Skeleton.cpp.

Member Function Documentation

§ AddEvent()

bool skeletonScanner::AddEvent ( XiaData * event_ )

virtual

Add a channel event to the deque of events to send to the processors. This method should only be called from skeletonUnpacker::ProcessRawEvent().

Parameters

[in] event_ The raw XiaData to add to the channel event deque.

Returns: False.

Reimplemented from ScanInterface.

Definition at line 203 of file Skeleton.cpp.

§ ArgHelp()

void skeletonScanner::ArgHelp ( void )

virtual

ArgHelp is used to allow a derived class to add a command line option to the main list of options. This method is called at the end of from the ::Setup method. Does nothing useful by default.

Returns: Nothing.

Reimplemented from ScanInterface.

Definition at line 138 of file Skeleton.cpp.

Here is the call graph for this function:

§ CmdHelp()

void skeletonScanner::CmdHelp ( const std::string & prefix_ = "" )

virtual

CmdHelp is used to allow a derived class to print a help statement about its own commands. This method is called whenever the user enters 'help' or 'h' into the interactive terminal (if available).

Parameters

[in] prefix_ String to append at the start of any output. Not used by default.

Returns: Nothing.

Reimplemented from ScanInterface.

Definition at line 125 of file Skeleton.cpp.

§ ExtraArguments()

void skeletonScanner::ExtraArguments ( )

virtual

ExtraArguments is used to send command line arguments to classes derived from ScanInterface. This method should loop over the optionExt elements in the vector userOpts and check for those options which have been flagged as active by ::Setup(). This should be overloaded in the derived class.

Returns: Nothing.

Reimplemented from ScanInterface.

Definition at line 108 of file Skeleton.cpp.

§ ExtraCommands()

bool skeletonScanner::ExtraCommands	(	const std::string &	cmd_,
		std::vector< std::string > &	args_
	)

virtual

ExtraCommands is used to send command strings to classes derived from ScanInterface. If ScanInterface receives an unrecognized command from the user, it will pass it on to the derived class.

Parameters

[in]	cmd_	The command to interpret.
[out]	arg_	Vector or arguments to the user command.

Returns: True if the command was recognized and false otherwise.

Reimplemented from ScanInterface.

Definition at line 80 of file Skeleton.cpp.

§ FinalInitialization()

void skeletonScanner::FinalInitialization ( )

virtual

Peform any last minute initialization before processing data. /return Nothing.

Reimplemented from ScanInterface.

Definition at line 172 of file Skeleton.cpp.

§ GetCore()

Unpacker * skeletonScanner::GetCore ( )

virtual

Return a pointer to the Unpacker object to use for data unpacking. If no object has been initialized, create a new one.

Returns: Pointer to an Unpacker object.

Reimplemented from ScanInterface.

Definition at line 193 of file Skeleton.cpp.

Here is the caller graph for this function:

§ IdleTask()

virtual void skeletonScanner::IdleTask ( void )

inlinevirtual

IdleTask is called whenever a scan is running in shared memory mode, and a spill has yet to be received. This method may be used to update things which need to be updated every so often (e.g. a root TCanvas) when working with a low data rate.

Returns: Nothing.

Reimplemented from ScanInterface.

Definition at line 93 of file Skeleton.hpp.

§ Initialize()

bool skeletonScanner::Initialize ( std::string prefix_ = "" )

virtual

Initialize the map file, the config file, the processor handler, and add all of the required processors.

Parameters

[in] prefix_ String to append to the beginning of system output.

Returns: True upon successfully initializing and false otherwise.

Reimplemented from ScanInterface.

Definition at line 161 of file Skeleton.cpp.

§ InitRootOutput()

virtual bool skeletonScanner::InitRootOutput	(	std::string	fname_,
		bool	overwrite_ = `true`
	)

inlinevirtual

Initialize the root output.

Parameters

[in]	fname_	Filename of the output root file.
[in]	overwrite_	Set to true if the user wishes to overwrite the output file.

Returns: True upon successfully opening the output file and false otherwise.

Reimplemented from ScanInterface.

Definition at line 112 of file Skeleton.hpp.

Here is the call graph for this function:

§ Notify()

void skeletonScanner::Notify ( const std::string & code_ = "" )

virtual

Receive various status notifications from the scan.

Parameters

[in] code_ The notification code passed from ScanInterface methods.

Returns: Nothing.

Reimplemented from ScanInterface.

Definition at line 180 of file Skeleton.cpp.

§ ProcessEvents()

bool skeletonScanner::ProcessEvents ( )

virtual

Process all channel events read in from the rawEvent. This method should only be called from skeletonUnpacker::ProcessRawEvent().

Returns: False.

Reimplemented from ScanInterface.

Definition at line 217 of file Skeleton.cpp.

§ SyntaxStr()

void skeletonScanner::SyntaxStr ( char * name_ )

virtual

SyntaxStr is used to print a linux style usage message to the screen.

Parameters

[in] name_ The name of the program.

Returns: Nothing.

Reimplemented from ScanInterface.

Definition at line 152 of file Skeleton.cpp.

Field Documentation

§ init

bool skeletonScanner::init

private

Definition at line 140 of file Skeleton.hpp.

The documentation for this class was generated from the following files:
