#include <ScanInterface.hpp>

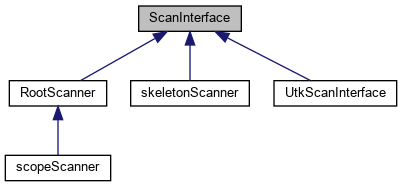

Inheritance diagram for ScanInterface:

[legend]

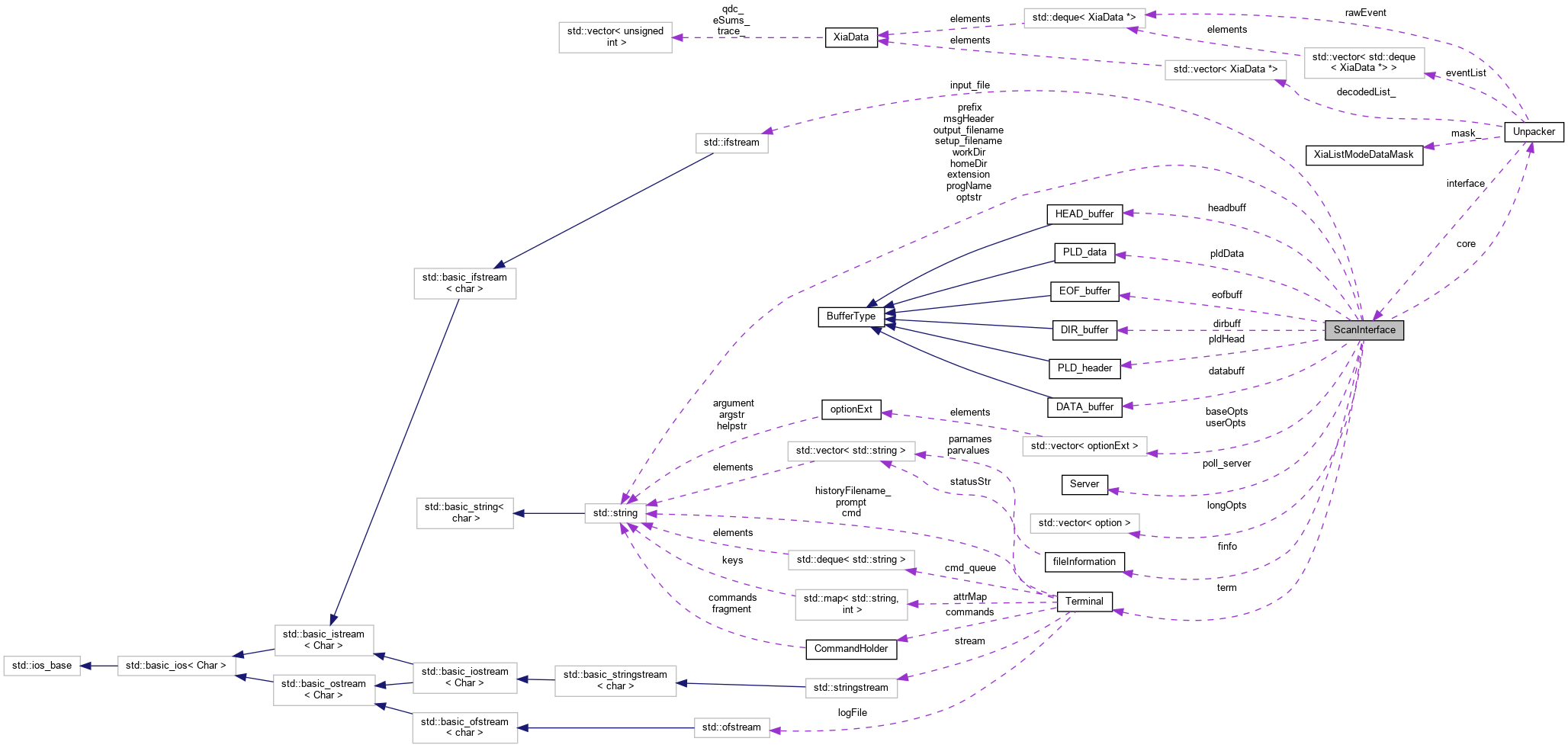

Collaboration diagram for ScanInterface:

[legend]

Public Member Functions
	ScanInterface (Unpacker *core_=NULL)
	Default constructor. More...

virtual	~ScanInterface ()
	Default destructor. More...

bool	IsInit ()
	Return true if the ScanInterface object has been initialized. More...

bool	IsVerbose ()
	Return true if verbose output mode is enabled. More...

bool	DebugMode ()
	Return true if debug mode is enabled. More...

bool	DryRunMode ()
	Return true if dry run mode is enabled. More...

bool	ShmMode ()
	Return true if shared memory mode is enabled. More...

bool	BatchMode ()
	Return true if batch processing mode is enabled. More...

std::string	GetMessageHeader ()
	Return the header string used to prefix output messages. More...

std::string	GetProgramName ()
	Return the name of the program. More...

std::string	GetSetupFilename ()

std::string	GetOutputFilename ()

fileInformation *	GetFileInfo ()
	Return a pointer to a fileInformation object used to store file header info. More...

void	SetProgramName (const std::string &head_)
	Set the header string used to prefix output messages. More...

bool	SetVerboseMode (bool state_=true)
	Enable or disable verbose output mode. More...

bool	SetDebugMode (bool state_=true)
	Enable or disable debug mode. More...

bool	SetDryRunMode (bool state_=true)
	Enable or disable dry run mode. More...

bool	SetShmMode (bool state_=true)
	Enable or disable shared memory mode. More...

bool	SetBatchMode (bool state_=true)
	Enable or disable batch processing mode. More...

void	RunControl ()
	Main scan control method. More...

void	CmdControl ()
	Main command interpreter method. More...

bool	Setup (int argc, char *argv[])
	Setup user options and initialize all required objects. More...

int	Execute ()
	Run the program. More...

bool	Close ()
	Shutdown cleanly. More...

virtual bool	AddEvent (XiaData *event_)

virtual bool	ProcessEvents ()

Protected Member Functions
void	AddOption (optionExt opt_)
	Pointer to class derived from Unpacker class. More...

virtual bool	ExtraCommands (const std::string &cmd_, std::vector< std::string > &args_)

virtual void	ExtraArguments ()

virtual void	CmdHelp (const std::string &prefix_="")

virtual void	ArgHelp ()

virtual void	SyntaxStr (char *name_)

virtual void	IdleTask ()

virtual bool	Initialize (std::string prefix_="")

virtual void	FinalInitialization ()

virtual bool	InitRootOutput (std::string fname_, bool overwrite_=true)

virtual void	Notify (const std::string &code_="")

virtual Unpacker *	GetCore ()

Protected Attributes
std::string	msgHeader

std::string	progName
	The string to print before program output. More...

std::vector< option >	longOpts
	The name of the program. More...

std::vector< optionExt >	baseOpts
	Vector of all command line options. More...

std::vector< optionExt >	userOpts
	Base level command line options for the scan. More...

std::string	optstr
	User added command line options. More...

Unpacker *	core

Private Member Functions
void	start_scan ()
	ncurses terminal used for displaying output and handling user input. More...

void	stop_scan ()
	Stop the scan. More...

void	help (char *name_)
	Print a command line argument help dialogue. More...

bool	rewind (const unsigned long &offset_=0)
	Seek to a specified position in the file. More...

bool	open_input_file (const std::string &fname_)
	Open a new binary input file for reading. More...

Private Attributes
unsigned int	maxShmSizeL

unsigned int	maxShmSize
	Max size of shared memory buffer in pixie words (4050 + 2 header words) More...

std::string	prefix
	Max size of shared memory buffer in bytes. More...

std::string	extension
	Input filename prefix (without extension). More...

std::string	workDir
	Input file extension. More...

std::string	homeDir
	Linux system current working directory. More...

std::string	setup_filename
	Linux user home directory. More...

std::string	output_filename
	Name of file to be used for output. More...

int	max_spill_size

int	file_format
	Maximum size of a spill to read. More...

unsigned long	num_spills_recvd
	Input file format to use (0=.ldf, 1=.pld, 2=.root). More...

unsigned long	file_start_offset
	The total number of good spills received from either the input file or shared memory. More...

bool	write_counts
	The first word in the file at which to start scanning. More...

bool	total_stopped
	Set to true if raw channel counts are to be written to file. More...

bool	is_running
	Set to true if when the scan finishes. More...

bool	is_verbose
	Set to true if the acqusition is running. More...

bool	debug_mode
	Set to true if the user wishes verbose information to be displayed. More...

bool	dry_run_mode
	Set to true if the user wishes to display debug information. More...

bool	shm_mode
	Set to true if a dry run is to be performed i.e. data is to be read but not processed. More...

bool	batch_mode
	Set to true if shared memory mode is to be used. More...

bool	scan_init
	Set to true if the program is to be run with no interactive command line. More...

bool	file_open
	Set to true when ScanInterface is initialized properly and is ready to scan. More...

bool	kill_all
	Set to true when an input binary file is successfully opened for reading. More...

bool	run_ctrl_exit
	Set to true when user has sent kill command. More...

Server *	poll_server
	Set to true when run control thread has exited. More...

std::ifstream	input_file
	Poll2 shared memory server. More...

std::streampos	file_length
	Main input binary data file. More...

fileInformation	finfo
	Main input file length (in bytes). More...

PLD_header	pldHead
	Data structure for storing binary file header information. More...

PLD_data	pldData
	PLD style HEAD buffer handler. More...

DIR_buffer	dirbuff
	PLD style DATA buffer handler. More...

HEAD_buffer	headbuff
	HRIBF DIR buffer handler. More...

DATA_buffer	databuff
	HRIBF HEAD buffer handler. More...

EOF_buffer	eofbuff
	HRIBF DATA buffer handler. More...

Terminal *	term
	HRIBF EOF buffer handler. More...

Detailed Description

Definition at line 79 of file ScanInterface.hpp.

Constructor & Destructor Documentation

§ ScanInterface()

ScanInterface::ScanInterface ( Unpacker * core_ = NULL )

Default constructor.

Parameters

[in] core_ Pointer to an object derived from Unpacker.

Definition at line 359 of file ScanInterface.cpp.

Here is the call graph for this function:

§ ~ScanInterface()

ScanInterface::~ScanInterface ( )

virtual

Default destructor.

Definition at line 432 of file ScanInterface.cpp.

Member Function Documentation

§ AddEvent()

virtual bool ScanInterface::AddEvent ( XiaData * event_ )

inlinevirtual

Add a channel event to the deque of events to send to the processors. This method should only be called from Unpacker::ProcessRawEvent().

Parameters

[in] event_ The raw XiaData to add. Unused by default.

Returns: False if not overwritten.

Reimplemented in scopeScanner, and skeletonScanner.

Definition at line 161 of file ScanInterface.hpp.

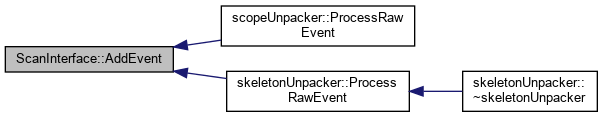

Here is the caller graph for this function:

§ AddOption()

void ScanInterface::AddOption ( optionExt opt_ )

protected

Pointer to class derived from Unpacker class.

Add a command line option to the option list.

Parameters

[in] opt_ The option to add to the list.

Returns: Nothing.

Definition at line 312 of file ScanInterface.cpp.

Here is the caller graph for this function:

§ ArgHelp()

virtual void ScanInterface::ArgHelp ( void )

inlineprotectedvirtual

ArgHelp is used to allow a derived class to add a command line option to the main list of options. This method is called at the end of from the ::Setup method. Does nothing useful by default.

Returns: Nothing.

Reimplemented in scopeScanner, skeletonScanner, and UtkScanInterface.

Definition at line 219 of file ScanInterface.hpp.

§ BatchMode()

bool ScanInterface::BatchMode ( )

inline

Return true if batch processing mode is enabled.

Definition at line 103 of file ScanInterface.hpp.

§ Close()

bool ScanInterface::Close ( )

Shutdown cleanly.

Shutdown cleanly. Uninitialize the ScanInterface object.

Returns: True upon success and false if ScanInterface has not been initialized.

Definition at line 1081 of file ScanInterface.cpp.

Here is the caller graph for this function:

§ CmdControl()

void ScanInterface::CmdControl ( )

Main command interpreter method.

Definition at line 706 of file ScanInterface.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

§ CmdHelp()

virtual void ScanInterface::CmdHelp ( const std::string & prefix_ = "" )

inlineprotectedvirtual

CmdHelp is used to allow a derived class to print a help statement about its own commands. This method is called whenever the user enters 'help' or 'h' into the interactive terminal (if available). Does nothing useful by default.

Parameters

[in] prefix_ String to append at the start of any output. Not used by default.

Returns: Nothing.

Reimplemented in scopeScanner, and skeletonScanner.

Definition at line 211 of file ScanInterface.hpp.

§ DebugMode()

bool ScanInterface::DebugMode ( )

inline

Return true if debug mode is enabled.

Definition at line 94 of file ScanInterface.hpp.

§ DryRunMode()

bool ScanInterface::DryRunMode ( )

inline

Return true if dry run mode is enabled.

Definition at line 97 of file ScanInterface.hpp.

§ Execute()

int ScanInterface::Execute ( )

Run the program.

Run the scan program. This should be called from main().

Returns: Integer return value. 0 on success and 1 otherwise.

Definition at line 1048 of file ScanInterface.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

§ ExtraArguments()

virtual void ScanInterface::ExtraArguments ( )

inlineprotectedvirtual

ExtraArguments is used to send command line arguments to classes derived from ScanInterface. This method should loop over the optionExt elements in the vector userOpts and check for those options which have been flagged as active by ::Setup(). This should be overloaded in the derived class.

Returns: Nothing.

Reimplemented in scopeScanner, and skeletonScanner.

Definition at line 202 of file ScanInterface.hpp.

§ ExtraCommands()

virtual bool ScanInterface::ExtraCommands	(	const std::string &	cmd_,
		std::vector< std::string > &	args_
	)

inlineprotectedvirtual

ExtraCommands is used to send command strings to classes derived from ScanInterface. If ScanInterface receives an unrecognized command from the user, it will pass it on to the derived class. Does nothing useful by default.

Parameters

[in]	cmd_	The command to interpret. Not used by default.
[out]	arg_	Vector or arguments to the user command. Not used by default.

Returns: True if the command was recognized and false otherwise. Returns false by default.

Reimplemented in scopeScanner, skeletonScanner, and UtkScanInterface.

Definition at line 194 of file ScanInterface.hpp.

§ FinalInitialization()

virtual void ScanInterface::FinalInitialization ( )

inlineprotectedvirtual

Peform any last minute initialization which derived classes need to run before processing data. Does nothing useful by default. /return Nothing.

Reimplemented in scopeScanner, skeletonScanner, and UtkScanInterface.

Definition at line 249 of file ScanInterface.hpp.

§ GetCore()

Unpacker * ScanInterface::GetCore ( )

protectedvirtual

Return a pointer to the Unpacker object to use for data unpacking. If no object has been initialized, create a new one.

Returns: Pointer to an Unpacker object.

Reimplemented in scopeScanner, skeletonScanner, and UtkScanInterface.

Definition at line 351 of file ScanInterface.cpp.

§ GetFileInfo()

fileInformation* ScanInterface::GetFileInfo ( )

inline

Return a pointer to a fileInformation object used to store file header info.

Definition at line 118 of file ScanInterface.hpp.

§ GetMessageHeader()

std::string ScanInterface::GetMessageHeader ( )

inline

Return the header string used to prefix output messages.

Definition at line 106 of file ScanInterface.hpp.

§ GetOutputFilename()

std::string ScanInterface::GetOutputFilename ( )

inline

Returns: The name of the output file

Definition at line 115 of file ScanInterface.hpp.

Here is the caller graph for this function:

§ GetProgramName()

std::string ScanInterface::GetProgramName ( )

inline

Return the name of the program.

Definition at line 109 of file ScanInterface.hpp.

§ GetSetupFilename()

std::string ScanInterface::GetSetupFilename ( )

inline

Returns: The name of the configuration file

Definition at line 112 of file ScanInterface.hpp.

Here is the caller graph for this function:

§ help()

void ScanInterface::help ( char * name_ )

private

Print a command line argument help dialogue.

Parameters

[in] name_ The name of the program.

Returns: Nothing.

Definition at line 163 of file ScanInterface.cpp.

§ IdleTask()

virtual void ScanInterface::IdleTask ( void )

inlineprotectedvirtual

IdleTask is called whenever a scan is running in shared memory mode, and a spill has yet to be received. This method may be used to update things which need to be updated every so often (e.g. a root TCanvas) when working with a low data rate. Does nothing useful by default.

Returns: Nothing.

Reimplemented in skeletonScanner, UtkScanInterface, and RootScanner.

Definition at line 235 of file ScanInterface.hpp.

§ Initialize()

bool ScanInterface::Initialize ( std::string prefix_ = "" )

protectedvirtual

Initialize the Unpacker object. Does nothing useful by default.

Parameters

[in] prefix_ String to append to the beginning of system output.

Returns: True upon successfully initializing and false otherwise.

Reimplemented in scopeScanner, skeletonScanner, and UtkScanInterface.

Definition at line 342 of file ScanInterface.cpp.

§ InitRootOutput()

virtual bool ScanInterface::InitRootOutput	(	std::string	fname_,
		bool	overwrite_ = `true`
	)

inlineprotectedvirtual

Initialize the root output. Does nothing useful by default.

Parameters

[in]	fname_	Filename of the output root file. Not used by default.
[in]	overwrite_	Set to true if the user wishes to overwrite the output file. Not used by default.

Returns: True upon successfully opening the output file and false otherwise. Returns false by default.

Reimplemented in scopeScanner, skeletonScanner, and UtkScanInterface.

Definition at line 257 of file ScanInterface.hpp.

§ IsInit()

bool ScanInterface::IsInit ( )

inline

Return true if the ScanInterface object has been initialized.

Definition at line 88 of file ScanInterface.hpp.

§ IsVerbose()

bool ScanInterface::IsVerbose ( )

inline

Return true if verbose output mode is enabled.

Definition at line 91 of file ScanInterface.hpp.

§ Notify()

virtual void ScanInterface::Notify ( const std::string & code_ = "" )

inlineprotectedvirtual

Notify the unpacker object of a user action. This method should be used in order to pass information to a class derived from Unpacker. Does nothing useful by default.

Parameters

[in] code_ The notification code passed from ScanInterface methods. Not used by default.

Returns: Nothing.

Reimplemented in scopeScanner, skeletonScanner, and UtkScanInterface.

Definition at line 265 of file ScanInterface.hpp.

Here is the call graph for this function:

§ open_input_file()

bool ScanInterface::open_input_file ( const std::string & fname_ )

private

Open a new binary input file for reading.

Parameters

[in] fname_ Input filename to open for reading.

Returns: True upon successfully opening the file and false otherwise.

Definition at line 208 of file ScanInterface.cpp.

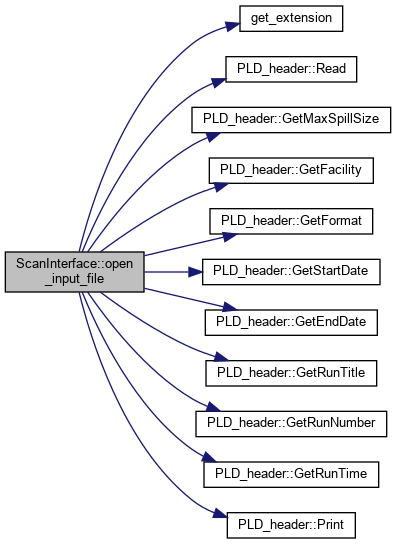

Here is the call graph for this function:

§ ProcessEvents()

virtual bool ScanInterface::ProcessEvents ( )

inlinevirtual

Process all channel events read in from the rawEvent. This method should only be called from Unpacker::ProcessRawEvent().

Returns: False if not overwritten.

Reimplemented in scopeScanner, and skeletonScanner.

Definition at line 167 of file ScanInterface.hpp.

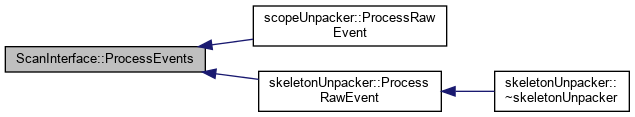

Here is the caller graph for this function:

§ rewind()

bool ScanInterface::rewind ( const unsigned long & offset_ = 0 )

private

Seek to a specified position in the file.

Parameters

[in] offset_ The position, with respect to the start of the file, to seek to.

Returns: True upon success and false otherwise.

Definition at line 180 of file ScanInterface.cpp.

§ RunControl()

void ScanInterface::RunControl ( )

Main scan control method.

Definition at line 437 of file ScanInterface.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

§ SetBatchMode()

bool ScanInterface::SetBatchMode ( bool state_ = true )

inline

Enable or disable batch processing mode.

Definition at line 139 of file ScanInterface.hpp.

§ SetDebugMode()

bool ScanInterface::SetDebugMode ( bool state_ = true )

inline

Enable or disable debug mode.

Definition at line 130 of file ScanInterface.hpp.

§ SetDryRunMode()

bool ScanInterface::SetDryRunMode ( bool state_ = true )

inline

Enable or disable dry run mode.

Definition at line 133 of file ScanInterface.hpp.

§ SetProgramName()

void ScanInterface::SetProgramName ( const std::string & head_ )

inline

Set the header string used to prefix output messages.

Definition at line 121 of file ScanInterface.hpp.

Here is the caller graph for this function:

§ SetShmMode()

bool ScanInterface::SetShmMode ( bool state_ = true )

inline

Enable or disable shared memory mode.

Definition at line 136 of file ScanInterface.hpp.

§ Setup()

bool ScanInterface::Setup	(	int	argc,
		char *	argv[]
	)

Setup user options and initialize all required objects.

Parameters

[in]	argc	Number of arguments passed from the command line.
[in]	argv	Array of strings passed as arguments from the command line.

Returns: True upon success and false otherwise.

We need to be able to handle mixed systems, which is not implemented yet.

Definition at line 838 of file ScanInterface.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

§ SetVerboseMode()

bool ScanInterface::SetVerboseMode ( bool state_ = true )

inline

Enable or disable verbose output mode.

Definition at line 127 of file ScanInterface.hpp.

§ ShmMode()

bool ScanInterface::ShmMode ( )

inline

Return true if shared memory mode is enabled.

Definition at line 100 of file ScanInterface.hpp.

Here is the caller graph for this function:

§ start_scan()

void ScanInterface::start_scan ( )

private

ncurses terminal used for displaying output and handling user input.

Start the scan.

Start the scan, if ScanInterface is initialized and is not already running.

Returns: Nothing.

Definition at line 122 of file ScanInterface.cpp.

§ stop_scan()

void ScanInterface::stop_scan ( )

private

Stop the scan.

Stop the scan, if it is running.

Returns: Nothing.

Definition at line 145 of file ScanInterface.cpp.

§ SyntaxStr()

void ScanInterface::SyntaxStr ( char * name_ )

protectedvirtual

SyntaxStr is used to print a linux style usage message to the screen. Prints a standard usage message by default.

Parameters

[in] name_ The name of the program.

Returns: Nothing.

Reimplemented in scopeScanner, skeletonScanner, and UtkScanInterface.

Definition at line 333 of file ScanInterface.cpp.

Field Documentation

§ baseOpts

std::vector<optionExt> ScanInterface::baseOpts

protected

Vector of all command line options.

Definition at line 174 of file ScanInterface.hpp.

§ batch_mode

bool ScanInterface::batch_mode

private

Set to true if shared memory mode is to be used.

Definition at line 298 of file ScanInterface.hpp.

§ core

Unpacker* ScanInterface::core

protected

Definition at line 178 of file ScanInterface.hpp.

§ databuff

DATA_buffer ScanInterface::databuff

private

HRIBF HEAD buffer handler.

Definition at line 316 of file ScanInterface.hpp.

§ debug_mode

bool ScanInterface::debug_mode

private

Set to true if the user wishes verbose information to be displayed.

Definition at line 295 of file ScanInterface.hpp.

§ dirbuff

DIR_buffer ScanInterface::dirbuff

private

PLD style DATA buffer handler.

Definition at line 314 of file ScanInterface.hpp.

§ dry_run_mode

bool ScanInterface::dry_run_mode

private

Set to true if the user wishes to display debug information.

Definition at line 296 of file ScanInterface.hpp.

§ eofbuff

EOF_buffer ScanInterface::eofbuff

private

HRIBF DATA buffer handler.

Definition at line 317 of file ScanInterface.hpp.

§ extension

std::string ScanInterface::extension

private

Input filename prefix (without extension).

Definition at line 278 of file ScanInterface.hpp.

§ file_format

int ScanInterface::file_format

private

Maximum size of a spill to read.

Definition at line 285 of file ScanInterface.hpp.

§ file_length

std::streampos ScanInterface::file_length

private

Main input binary data file.

Definition at line 308 of file ScanInterface.hpp.

§ file_open

bool ScanInterface::file_open

private

Set to true when ScanInterface is initialized properly and is ready to scan.

Definition at line 300 of file ScanInterface.hpp.

§ file_start_offset

unsigned long ScanInterface::file_start_offset

private

The total number of good spills received from either the input file or shared memory.

Definition at line 288 of file ScanInterface.hpp.

§ finfo

fileInformation ScanInterface::finfo

private

Main input file length (in bytes).

Definition at line 310 of file ScanInterface.hpp.

§ headbuff

HEAD_buffer ScanInterface::headbuff

private

HRIBF DIR buffer handler.

Definition at line 315 of file ScanInterface.hpp.

§ homeDir

std::string ScanInterface::homeDir

private

Linux system current working directory.

Definition at line 280 of file ScanInterface.hpp.

§ input_file

std::ifstream ScanInterface::input_file

private

Poll2 shared memory server.

Definition at line 307 of file ScanInterface.hpp.

§ is_running

bool ScanInterface::is_running

private

Set to true if when the scan finishes.

Definition at line 293 of file ScanInterface.hpp.

§ is_verbose

bool ScanInterface::is_verbose

private

Set to true if the acqusition is running.

Definition at line 294 of file ScanInterface.hpp.

§ kill_all

bool ScanInterface::kill_all

private

Set to true when an input binary file is successfully opened for reading.

Definition at line 302 of file ScanInterface.hpp.

§ longOpts

std::vector<option> ScanInterface::longOpts

protected

The name of the program.

Definition at line 173 of file ScanInterface.hpp.

§ max_spill_size

int ScanInterface::max_spill_size

private

Definition at line 284 of file ScanInterface.hpp.

§ maxShmSize

unsigned int ScanInterface::maxShmSize

private

Max size of shared memory buffer in pixie words (4050 + 2 header words)

Definition at line 275 of file ScanInterface.hpp.

§ maxShmSizeL

unsigned int ScanInterface::maxShmSizeL

private

Definition at line 274 of file ScanInterface.hpp.

§ msgHeader

std::string ScanInterface::msgHeader

protected

Definition at line 170 of file ScanInterface.hpp.

§ num_spills_recvd

unsigned long ScanInterface::num_spills_recvd

private

Input file format to use (0=.ldf, 1=.pld, 2=.root).

Definition at line 287 of file ScanInterface.hpp.

§ optstr

std::string ScanInterface::optstr

protected

User added command line options.

Definition at line 176 of file ScanInterface.hpp.

§ output_filename

std::string ScanInterface::output_filename

private

Name of file to be used for output.

Definition at line 282 of file ScanInterface.hpp.

§ pldData

PLD_data ScanInterface::pldData

private

PLD style HEAD buffer handler.

Definition at line 313 of file ScanInterface.hpp.

§ pldHead

PLD_header ScanInterface::pldHead

private

Data structure for storing binary file header information.

Definition at line 312 of file ScanInterface.hpp.

§ poll_server

Server* ScanInterface::poll_server

private

Set to true when run control thread has exited.

Definition at line 305 of file ScanInterface.hpp.

§ prefix

std::string ScanInterface::prefix

private

Max size of shared memory buffer in bytes.

Definition at line 277 of file ScanInterface.hpp.

§ progName

std::string ScanInterface::progName

protected

The string to print before program output.

Definition at line 171 of file ScanInterface.hpp.

§ run_ctrl_exit

bool ScanInterface::run_ctrl_exit

private

Set to true when user has sent kill command.

Definition at line 303 of file ScanInterface.hpp.

§ scan_init

bool ScanInterface::scan_init

private

Set to true if the program is to be run with no interactive command line.

Definition at line 299 of file ScanInterface.hpp.

§ setup_filename

std::string ScanInterface::setup_filename

private

Linux user home directory.

Configuration file to be opened

Definition at line 281 of file ScanInterface.hpp.

§ shm_mode

bool ScanInterface::shm_mode

private

Set to true if a dry run is to be performed i.e. data is to be read but not processed.

Definition at line 297 of file ScanInterface.hpp.

§ term

Terminal* ScanInterface::term

private

HRIBF EOF buffer handler.

Definition at line 319 of file ScanInterface.hpp.

§ total_stopped

bool ScanInterface::total_stopped

private

Set to true if raw channel counts are to be written to file.

Definition at line 292 of file ScanInterface.hpp.

§ userOpts

std::vector<optionExt> ScanInterface::userOpts

protected

Base level command line options for the scan.

Definition at line 175 of file ScanInterface.hpp.

§ workDir

std::string ScanInterface::workDir

private

Input file extension.

Definition at line 279 of file ScanInterface.hpp.

§ write_counts

bool ScanInterface::write_counts

private

The first word in the file at which to start scanning.

Definition at line 290 of file ScanInterface.hpp.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

§ ScanInterface()

§ ~ScanInterface()

Member Function Documentation

§ AddEvent()

§ AddOption()

§ ArgHelp()

§ BatchMode()

§ Close()

§ CmdControl()

§ CmdHelp()

§ DebugMode()

§ DryRunMode()

§ Execute()

§ ExtraArguments()

§ ExtraCommands()

§ FinalInitialization()

§ GetCore()

§ GetFileInfo()

§ GetMessageHeader()

§ GetOutputFilename()

§ GetProgramName()

§ GetSetupFilename()

§ help()

§ IdleTask()

§ Initialize()

§ InitRootOutput()

§ IsInit()

§ IsVerbose()

§ Notify()

§ open_input_file()

§ ProcessEvents()

§ rewind()

§ RunControl()

§ SetBatchMode()

§ SetDebugMode()

§ SetDryRunMode()

§ SetProgramName()

§ SetShmMode()

§ Setup()

§ SetVerboseMode()

§ ShmMode()

§ start_scan()

§ stop_scan()

§ SyntaxStr()

Field Documentation

§ baseOpts

§ batch_mode

§ core

§ databuff

§ debug_mode

§ dirbuff

§ dry_run_mode

§ eofbuff

§ extension

§ file_format

§ file_length

§ file_open

§ file_start_offset

§ finfo

§ headbuff

§ homeDir

§ input_file

§ is_running

§ is_verbose

§ kill_all

§ longOpts

§ max_spill_size

§ maxShmSize

§ maxShmSizeL

§ msgHeader

§ num_spills_recvd

§ optstr

§ output_filename
