RootProcessor Class Reference

A Class to handle outputting things into ROOT. More...

#include <RootProcessor.hpp>

Inheritance diagram for RootProcessor:

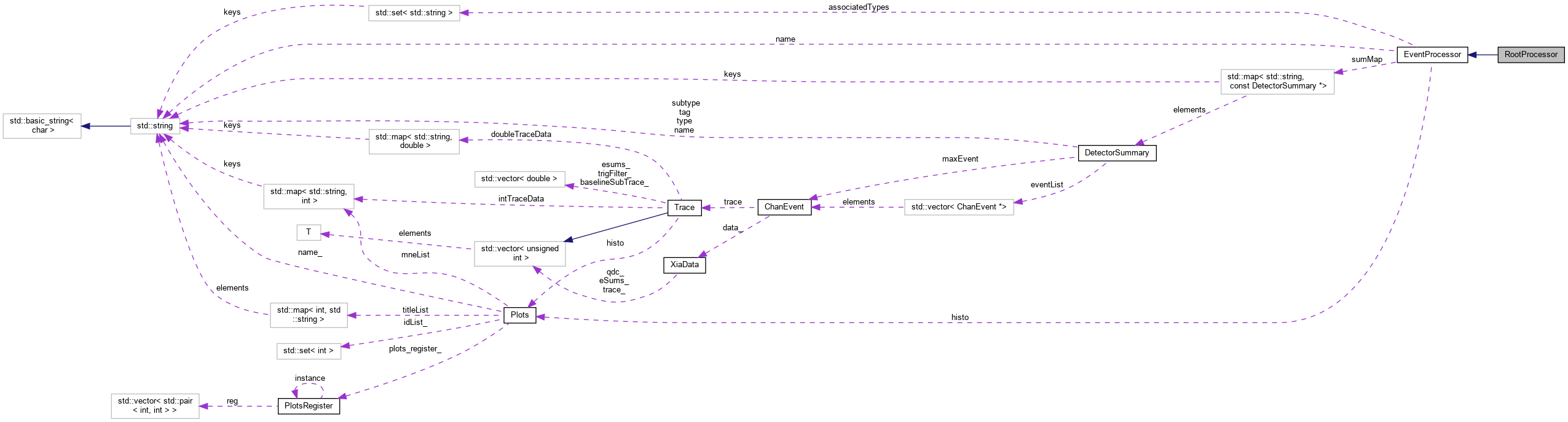

Collaboration diagram for RootProcessor:

Public Member Functions
	RootProcessor (const char *fileName, const char *treeName)
virtual bool	Init (RawEvent &rawev)
virtual bool	Process (RawEvent &event)
virtual	~RootProcessor ()
Public Member Functions inherited from EventProcessor
	EventProcessor ()
	EventProcessor (int offset, int range, std::string name)
virtual	~EventProcessor ()
virtual void	DeclarePlots (void)
virtual const std::set< std::string > &	GetTypes (void) const
virtual bool	DidProcess (void) const
virtual bool	HasEvent (void) const
virtual bool	PreProcess (RawEvent &event)
void	EndProcess (void)
std::string	GetName (void) const

Private Attributes
TFile *	file
	File where tree is stored. More...
TTree *	tree
	ROOT tree where event branches are filled. More...
vector< EventProcessor * >	vecProcess
	All processors with AddBranch() information. More...

Additional Inherited Members
Protected Member Functions inherited from EventProcessor
virtual void	plot (int dammId, double val1, double val2=-1, double val3=-1, const char *name="h")
	Implementation of the plot command to interface with the DAMM routines. More...
virtual void	DeclareHistogram1D (int dammId, int xSize, const char *title)
	Declares a 1D histogram calls the C++ wrapper for DAMM. More...
virtual void	DeclareHistogram2D (int dammId, int xSize, int ySize, const char *title)
	Declares a 2D histogram calls the C++ wrapper for DAMM. More...
Protected Attributes inherited from EventProcessor
std::string	name
	Name of the Processor. More...
std::set< std::string >	associatedTypes
	Set of associated types for Processor. More...
bool	initDone
	True if the initialization has finished. More...
bool	didProcess
	True if the process finished. More...
std::map< std::string, const DetectorSummary * >	sumMap
	Map of associated detector summary. More...
Plots	histo

Detailed Description

A Class to handle outputting things into ROOT.

Definition at line 25 of file RootProcessor.hpp.

Constructor & Destructor Documentation

RootProcessor()

RootProcessor::RootProcessor	(	const char *	fileName,
		const char *	treeName
	)

Constructor taking arguments for file and tree creation

Parameters

[in]	fileName	: the file name for the root file
[in]	treeName	: the name of the tree to save to the root file

~RootProcessor()

virtual RootProcessor::~RootProcessor ( )

virtual

Default Destructor

Member Function Documentation

Init()

virtual bool RootProcessor::Init ( RawEvent &  rawev )

virtual

Initializes the processor

Parameters

[in]

rawev

: the raw event to analyze

Returns

true if the initialization was successful

Reimplemented from EventProcessor.

Process()

virtual bool RootProcessor::Process ( RawEvent &  event )

virtual

Performs the main processsing, which may depend on other processors

Parameters

[in]

event

: the event to process

Returns

true if processing was successful

Reimplemented from EventProcessor.

Field Documentation

file

TFile* RootProcessor::file

private

File where tree is stored.

Definition at line 27 of file RootProcessor.hpp.

tree

TTree* RootProcessor::tree

private

ROOT tree where event branches are filled.

Definition at line 28 of file RootProcessor.hpp.

vecProcess

vector<EventProcessor *> RootProcessor::vecProcess

private

All processors with AddBranch() information.

Definition at line 31 of file RootProcessor.hpp.

---

The documentation for this class was generated from the following file:

• RootProcessor.hpp
