LiquidScintProcessor Class Reference

Class to handle liquid scintillator. More...

#include <LiquidScintProcessor.hpp>

Inheritance diagram for LiquidScintProcessor:

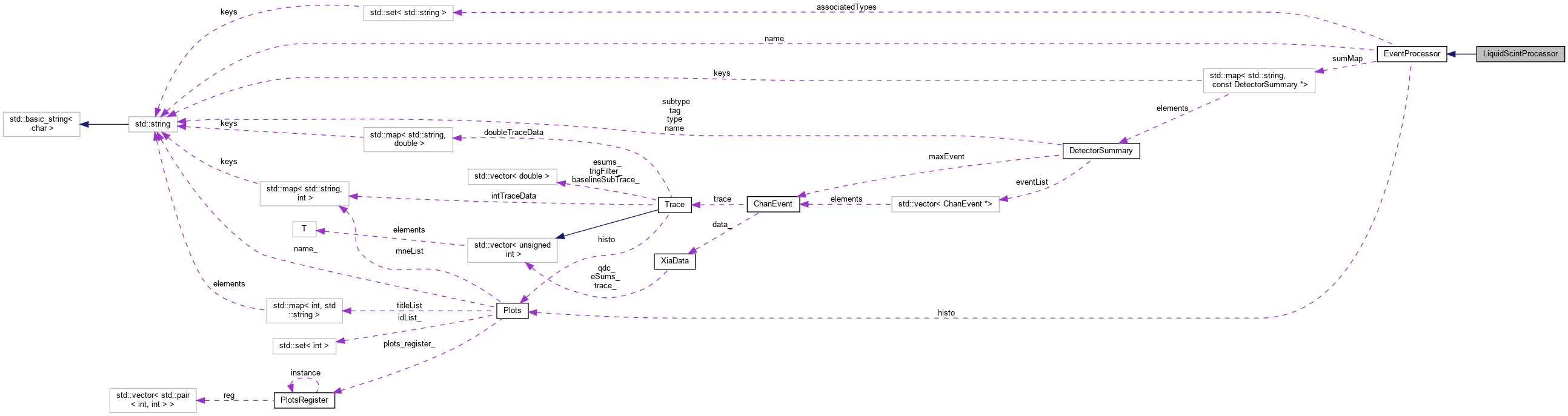

Collaboration diagram for LiquidScintProcessor:

Public Member Functions
	LiquidScintProcessor ()
	~LiquidScintProcessor ()
virtual bool	PreProcess (RawEvent &event)
virtual bool	Process (RawEvent &event)
virtual void	DeclarePlots (void)
Public Member Functions inherited from EventProcessor
	EventProcessor ()
	EventProcessor (int offset, int range, std::string name)
virtual	~EventProcessor ()
virtual const std::set< std::string > &	GetTypes (void) const
virtual bool	DidProcess (void) const
virtual bool	HasEvent (void) const
virtual bool	Init (RawEvent &event)
void	EndProcess (void)
std::string	GetName (void) const

Private Attributes
unsigned int	counter
	A counter for counting... More...

Additional Inherited Members
Protected Member Functions inherited from EventProcessor
virtual void	plot (int dammId, double val1, double val2=-1, double val3=-1, const char *name="h")
	Implementation of the plot command to interface with the DAMM routines. More...
virtual void	DeclareHistogram1D (int dammId, int xSize, const char *title)
	Declares a 1D histogram calls the C++ wrapper for DAMM. More...
virtual void	DeclareHistogram2D (int dammId, int xSize, int ySize, const char *title)
	Declares a 2D histogram calls the C++ wrapper for DAMM. More...
Protected Attributes inherited from EventProcessor
std::string	name
	Name of the Processor. More...
std::set< std::string >	associatedTypes
	Set of associated types for Processor. More...
bool	initDone
	True if the initialization has finished. More...
bool	didProcess
	True if the process finished. More...
std::map< std::string, const DetectorSummary * >	sumMap
	Map of associated detector summary. More...
Plots	histo

Detailed Description

Class to handle liquid scintillator.

Definition at line 12 of file LiquidScintProcessor.hpp.

Constructor & Destructor Documentation

LiquidScintProcessor()

LiquidScintProcessor::LiquidScintProcessor

(

)

Default Constructor

Definition at line 36 of file LiquidScintProcessor.cpp.

~LiquidScintProcessor()

LiquidScintProcessor::~LiquidScintProcessor ( )

inline

Default Destructor

Definition at line 17 of file LiquidScintProcessor.hpp.

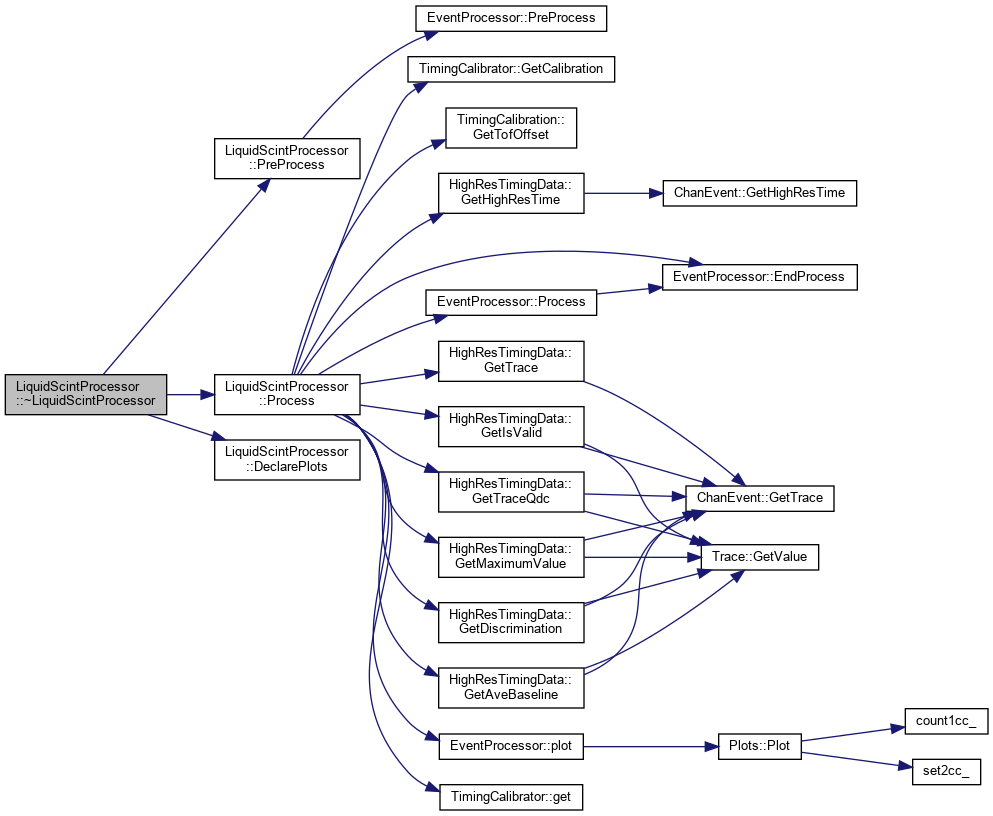

Here is the call graph for this function:

Member Function Documentation

DeclarePlots()

void LiquidScintProcessor::DeclarePlots ( void  )

virtual

Declare plots for processor

WARNING This part was commented in the old ScintProcessor and is copied as is.

Reimplemented from EventProcessor.

Definition at line 41 of file LiquidScintProcessor.cpp.

Here is the caller graph for this function:

PreProcess()

bool LiquidScintProcessor::PreProcess ( RawEvent &  event )

virtual

Performs the preprocessing, which cannot depend on other processors

Parameters

[in]

event

: the event to process

Returns

true if preprocessing was successful

Reimplemented from EventProcessor.

Definition at line 62 of file LiquidScintProcessor.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Process()

bool LiquidScintProcessor::Process ( RawEvent &  event )

virtual

Process an event

Parameters

[in]

event

: the event to process

Returns

true if the processing was successful

WARNING! This part was the LiquidAnalysis function in the old ScintProcessor. It looks like written for some older version of code. Before using, examine it carefully!

Reimplemented from EventProcessor.

Definition at line 74 of file LiquidScintProcessor.cpp.

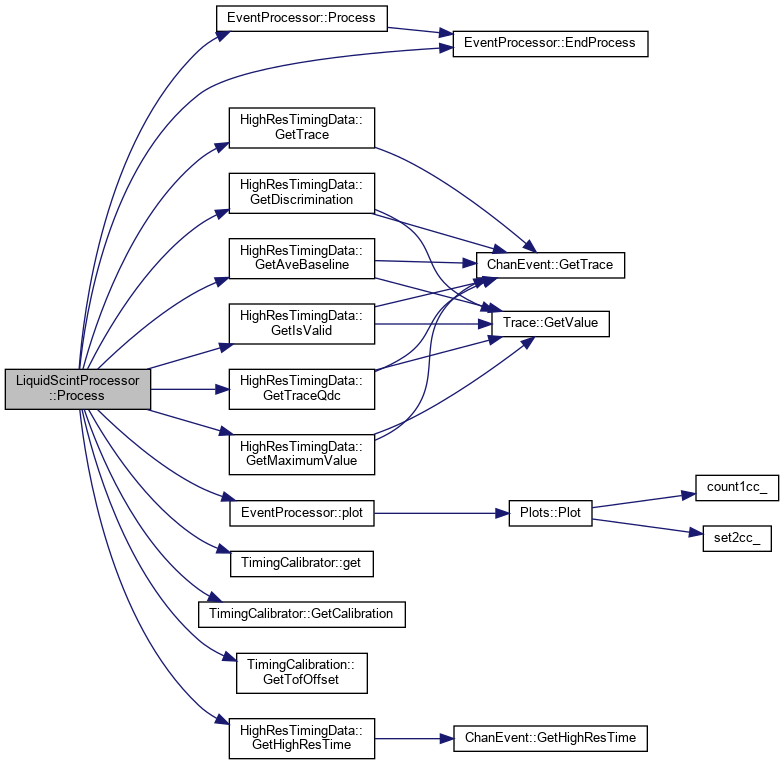

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

counter

unsigned int LiquidScintProcessor::counter

private

A counter for counting...

Definition at line 29 of file LiquidScintProcessor.hpp.

---

The documentation for this class was generated from the following files:

• LiquidScintProcessor.hpp
• LiquidScintProcessor.cpp
