TemplateExpProcessor Class Reference

Working template class for experiment processors. More...

#include <TemplateExpProcessor.hpp>

Inheritance diagram for TemplateExpProcessor:

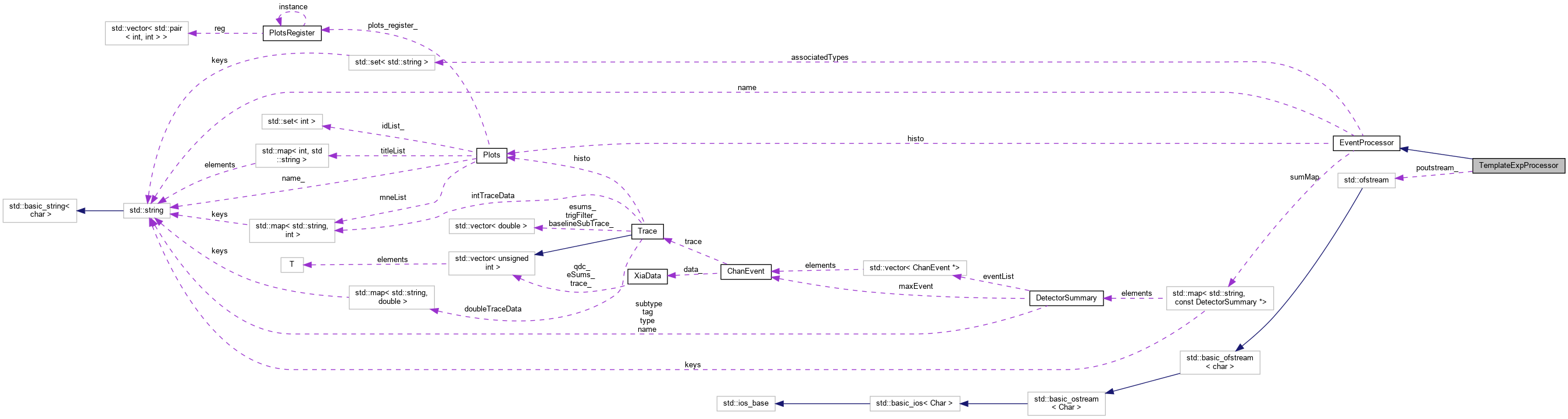

Collaboration diagram for TemplateExpProcessor:

Public Member Functions
	TemplateExpProcessor ()
	TemplateExpProcessor (const double &gcut)
	~TemplateExpProcessor ()
	Destructor to close output files and clean up pointers. More...
virtual void	DeclarePlots (void)
virtual bool	PreProcess (RawEvent &event)
	We do nothing here since we're completely dependent on the resutls of others. More...
virtual bool	Process (RawEvent &event)
	Main processing of data of interest. More...
Public Member Functions inherited from EventProcessor
	EventProcessor ()
	EventProcessor (int offset, int range, std::string name)
virtual	~EventProcessor ()
virtual const std::set< std::string > &	GetTypes (void) const
virtual bool	DidProcess (void) const
virtual bool	HasEvent (void) const
virtual bool	Init (RawEvent &event)
void	EndProcess (void)
std::string	GetName (void) const

Private Member Functions
void	SetAssociatedTypes (void)
	Associates this Experiment Processor with template and ge detector types. More...
void	SetupAsciiOutput (void)
	Sets up the name of the output ascii data file. More...

Private Attributes
std::ofstream *	poutstream_
	Pointer to ouptut ASCII file stream. More...
double	gCutoff_
	Variable used to set gamma cutoff energy. More...

Additional Inherited Members
Protected Member Functions inherited from EventProcessor
virtual void	plot (int dammId, double val1, double val2=-1, double val3=-1, const char *name="h")
	Implementation of the plot command to interface with the DAMM routines. More...
virtual void	DeclareHistogram1D (int dammId, int xSize, const char *title)
	Declares a 1D histogram calls the C++ wrapper for DAMM. More...
virtual void	DeclareHistogram2D (int dammId, int xSize, int ySize, const char *title)
	Declares a 2D histogram calls the C++ wrapper for DAMM. More...
Protected Attributes inherited from EventProcessor
std::string	name
	Name of the Processor. More...
std::set< std::string >	associatedTypes
	Set of associated types for Processor. More...
bool	initDone
	True if the initialization has finished. More...
bool	didProcess
	True if the process finished. More...
std::map< std::string, const DetectorSummary * >	sumMap
	Map of associated detector summary. More...
Plots	histo

Detailed Description

Working template class for experiment processors.

Definition at line 20 of file TemplateExpProcessor.hpp.

Constructor & Destructor Documentation

TemplateExpProcessor() [1/2]

TemplateExpProcessor::TemplateExpProcessor

(

)

Default Constructor

Set the gamma cuttoff energy to a default of 0.

Definition at line 41 of file TemplateExpProcessor.cpp.

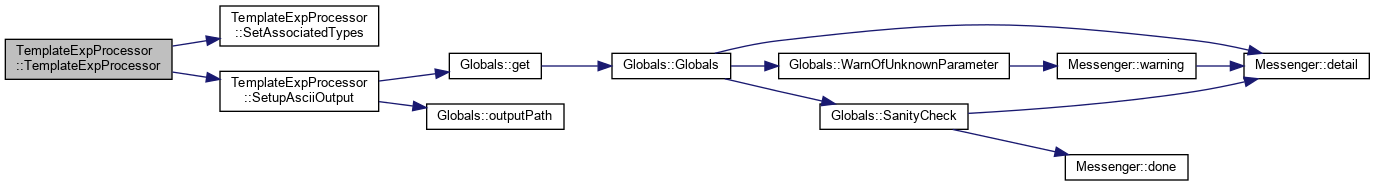

Here is the call graph for this function:

TemplateExpProcessor() [2/2]

TemplateExpProcessor::TemplateExpProcessor

(

const double &

gcut

)

Constructor to take an argument for the gamma cutoff

Definition at line 51 of file TemplateExpProcessor.cpp.

Here is the call graph for this function:

~TemplateExpProcessor()

TemplateExpProcessor::~TemplateExpProcessor

(

)

Destructor to close output files and clean up pointers.

Default Destructor

Definition at line 62 of file TemplateExpProcessor.cpp.

Member Function Documentation

DeclarePlots()

void TemplateExpProcessor::DeclarePlots ( void  )

virtual

Declare the plots used in the analysis

Reimplemented from EventProcessor.

Definition at line 35 of file TemplateExpProcessor.cpp.

PreProcess()

bool TemplateExpProcessor::PreProcess ( RawEvent &  event )

virtual

We do nothing here since we're completely dependent on the resutls of others.

PreProcess does nothing since this is solely dependent on results from other Processors

Reimplemented from EventProcessor.

Definition at line 101 of file TemplateExpProcessor.cpp.

Here is the call graph for this function:

Process()

bool TemplateExpProcessor::Process ( RawEvent &  event )

virtual

Main processing of data of interest.

Process the event

Parameters

[in]

event

: the event to process

Returns

Returns true if the processing was successful

Vectors to hold the information we will get from the various processors

Obtain the list of template events that were created in TemplateProcessor::PreProecess

Obtain the list of Ge events and addback events that were created in GeProcessor::PreProecess

Plot the size of the template events vector in two ways

Obtain some useful logic statuses

Begin loop over template events

Begin loop over ge events

Plot the Template Energy vs. Ge Energy if tape isn't moving

Output template and ge energy to text file if we had a beta along with the runtime in seconds.

Fill ROOT histograms and tree with the information

Plot the Ge energy with a cut

Reimplemented from EventProcessor.

Definition at line 108 of file TemplateExpProcessor.cpp.

Here is the call graph for this function:

SetAssociatedTypes()

void TemplateExpProcessor::SetAssociatedTypes ( void  )

private

Associates this Experiment Processor with template and ge detector types.

Sets the detectors that are associated with this processor

Definition at line 73 of file TemplateExpProcessor.cpp.

Here is the caller graph for this function:

SetupAsciiOutput()

void TemplateExpProcessor::SetupAsciiOutput ( void  )

private

Sets up the name of the output ascii data file.

Sets up the ASCII output file stream

Definition at line 79 of file TemplateExpProcessor.cpp.

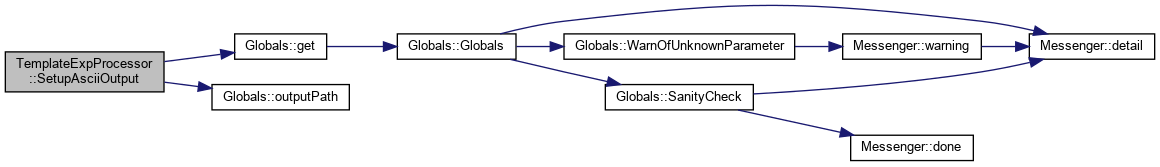

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

gCutoff_

double TemplateExpProcessor::gCutoff_

private

Variable used to set gamma cutoff energy.

Definition at line 46 of file TemplateExpProcessor.hpp.

poutstream_

std::ofstream* TemplateExpProcessor::poutstream_

private

Pointer to ouptut ASCII file stream.

Definition at line 45 of file TemplateExpProcessor.hpp.

---

The documentation for this class was generated from the following files:

• TemplateExpProcessor.hpp
• TemplateExpProcessor.cpp
