Class to handle logic signals. More...

#include <LogicProcessor.hpp>

Inheritance diagram for LogicProcessor:

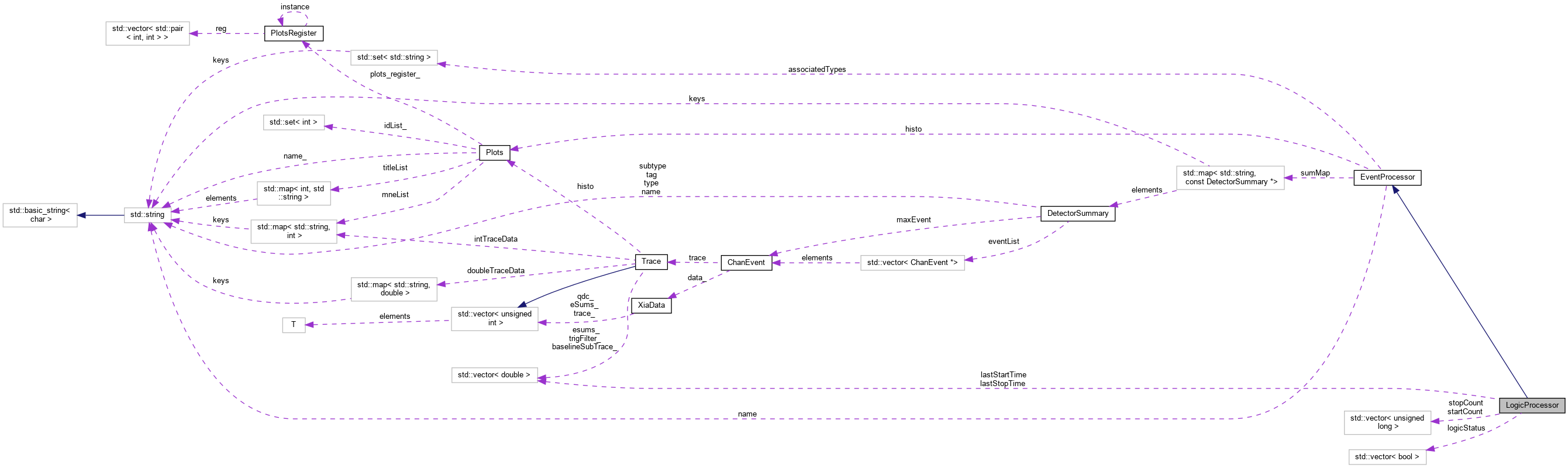

Collaboration diagram for LogicProcessor:

[legend]

Public Member Functions
	LogicProcessor ()

	LogicProcessor (int offset, int range, bool doubleStop=false, bool doubleStart=false)

virtual void	DeclarePlots (void)

virtual bool	PreProcess (RawEvent &event)

virtual bool	Process (RawEvent &event)

virtual bool	LogicStatus (size_t loc) const

void	SetDoubleStart (const bool &a)

void	SetDoubleStop (const bool &a)

unsigned long	StopCount (size_t loc) const

unsigned long	StartCount (size_t loc) const

double	TimeOff (size_t loc, double t) const

double	TimeOn (size_t loc, double t) const

Public Member Functions inherited from EventProcessor
	EventProcessor ()

	EventProcessor (int offset, int range, std::string name)

virtual	~EventProcessor ()

virtual const std::set< std::string > &	GetTypes (void) const

virtual bool	DidProcess (void) const

virtual bool	HasEvent (void) const

virtual bool	Init (RawEvent &event)

void	EndProcess (void)

std::string	GetName (void) const

Protected Attributes
std::vector< double >	lastStartTime
	time of last leading edge More...

std::vector< double >	lastStopTime
	time of last trailing edge More...

std::vector< bool >	logicStatus
	current level of the logic signal More...

std::vector< unsigned long >	stopCount
	number of stops received More...

std::vector< unsigned long >	startCount
	number of starts received More...

Protected Attributes inherited from EventProcessor
std::string	name
	Name of the Processor. More...

std::set< std::string >	associatedTypes
	Set of associated types for Processor. More...

bool	initDone
	True if the initialization has finished. More...

bool	didProcess
	True if the process finished. More...

std::map< std::string, const DetectorSummary * >	sumMap
	Map of associated detector summary. More...

Plots	histo

Private Member Functions
void	BasicProcessing (RawEvent &event)

void	TriggerProcessing (RawEvent &event)

bool	NiftyGraph (RawEvent &event)

Private Attributes
int	plotSize
	Size of the plots to make. More...

bool	doubleStop_

bool	doubleStart_

Additional Inherited Members
Protected Member Functions inherited from EventProcessor
virtual void	plot (int dammId, double val1, double val2=-1, double val3=-1, const char *name="h")
	Implementation of the plot command to interface with the DAMM routines. More...

virtual void	DeclareHistogram1D (int dammId, int xSize, const char *title)
	Declares a 1D histogram calls the C++ wrapper for DAMM. More...

virtual void	DeclareHistogram2D (int dammId, int xSize, int ySize, const char *title)
	Declares a 2D histogram calls the C++ wrapper for DAMM. More...

Detailed Description

Class to handle logic signals.

Definition at line 13 of file LogicProcessor.hpp.

Constructor & Destructor Documentation

§ LogicProcessor() [1/2]

LogicProcessor::LogicProcessor ( void )

Default Constructor

Definition at line 61 of file LogicProcessor.cpp.

§ LogicProcessor() [2/2]

LogicProcessor::LogicProcessor	(	int	offset,
		int	range,
		bool	doubleStop = `false`,
		bool	doubleStart = `false`
	)

Constructor taking histogram offset and range as arguments

Parameters

[in]	offset	: the offset of the histograms
[in]	range	: the maximum number of histograms
[in]	doubleStop	: if we have doubled the stops in the map
[in]	doubleStart	: if we have doubled the starts in the map

Definition at line 70 of file LogicProcessor.cpp.

Member Function Documentation

§ BasicProcessing()

void LogicProcessor::BasicProcessing ( RawEvent & event )

private

Basic Processing of the event

Parameters

[in] event : the even to process

§ DeclarePlots()

void LogicProcessor::DeclarePlots ( void )

virtual

Declare plots used in the analysis

From Original Logic Processor

From MTC Processor

From BeamLogicProcessor

From TriggerLogicProcessor

Reimplemented from EventProcessor.

Definition at line 83 of file LogicProcessor.cpp.

Here is the call graph for this function:

§ LogicStatus()

virtual bool LogicProcessor::LogicStatus ( size_t loc ) const

inlinevirtual

Returns: The logic status for a given location

Parameters

[in] loc : the location to get the status from

Definition at line 41 of file LogicProcessor.hpp.

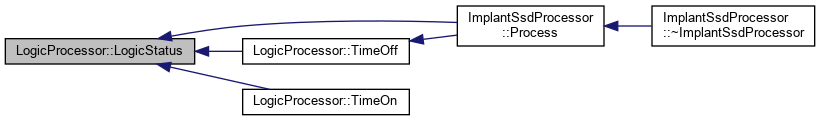

Here is the caller graph for this function:

§ NiftyGraph()

bool LogicProcessor::NiftyGraph ( RawEvent & event )

private

Prototype for a nifty graph, currently unimplemented

Parameters

[in] event : the raw event for plotting the nifty graph

§ PreProcess()

bool LogicProcessor::PreProcess ( RawEvent & event )

virtual

Preprocess the event

Parameters

[in] event : the event to process

Returns: true if the preprocess was successful

< clock in seconds

<Resolution for Logic Plots

<Res. for MTC Plots

Reimplemented from EventProcessor.

Definition at line 117 of file LogicProcessor.cpp.

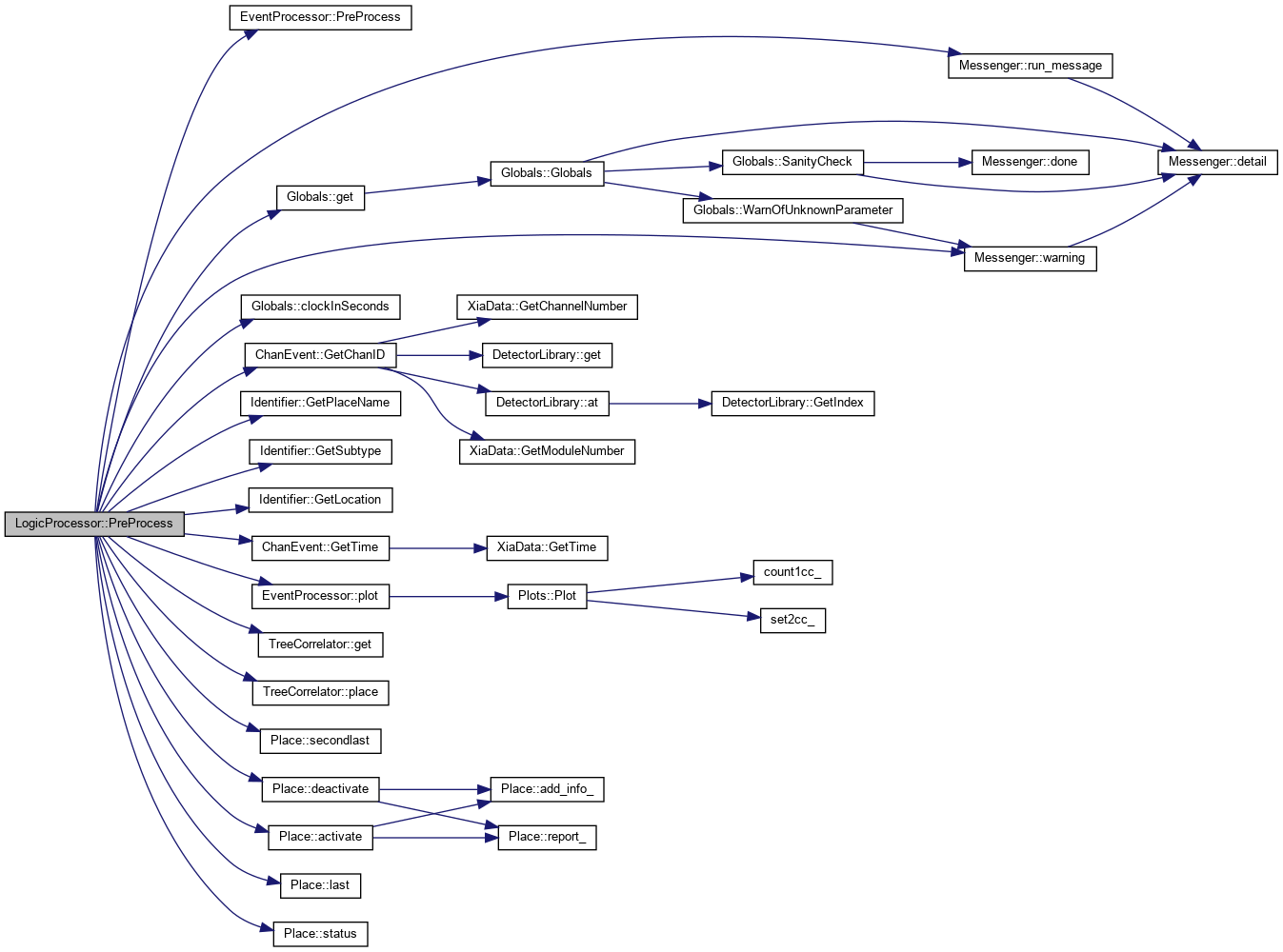

Here is the call graph for this function:

§ Process()

bool LogicProcessor::Process ( RawEvent & event )

virtual

Process the event

Parameters

[in] event : the event to process

Returns: true if processing was successful

Reimplemented from EventProcessor.

Definition at line 289 of file LogicProcessor.cpp.

Here is the call graph for this function:

§ SetDoubleStart()

void LogicProcessor::SetDoubleStart ( const bool & a )

inline

Parameters

[in] a : true if we have cloned the starts in the map

Definition at line 44 of file LogicProcessor.hpp.

§ SetDoubleStop()

void LogicProcessor::SetDoubleStop ( const bool & a )

inline

Parameters

[in] a : true if we have cloned the stops in the map

Definition at line 46 of file LogicProcessor.hpp.

§ StartCount()

unsigned long LogicProcessor::StartCount ( size_t loc ) const

inline

Returns: The start count for a given location

Parameters

[in] loc : the location to get the status from

Definition at line 54 of file LogicProcessor.hpp.

Here is the caller graph for this function:

§ StopCount()

unsigned long LogicProcessor::StopCount ( size_t loc ) const

inline

Returns: The stop count for a given location

Parameters

[in] loc : the location to get the count from

Definition at line 50 of file LogicProcessor.hpp.

§ TimeOff()

double LogicProcessor::TimeOff	(	size_t	loc,
		double	t
	)		const

inline

Returns: The time since the last off

Parameters

[in]	loc	: the location to get the status from
[in]	t	: the current time to compare with the last one

Definition at line 59 of file LogicProcessor.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

§ TimeOn()

double LogicProcessor::TimeOn	(	size_t	loc,
		double	t
	)		const

inline

Returns: The time since the last on

Parameters

[in]	loc	: the location to get the status from
[in]	t	: the current time to compare with the last one

Definition at line 66 of file LogicProcessor.hpp.

Here is the call graph for this function:

§ TriggerProcessing()

void LogicProcessor::TriggerProcessing ( RawEvent & event )

private

Trigger Processing of the event

Parameters

[in] event : the even to process

Field Documentation

§ doubleStart_

bool LogicProcessor::doubleStart_

private

In some experiments the MTC start signal was doubled this flags enable removal of such an events

Definition at line 95 of file LogicProcessor.hpp.

§ doubleStop_

bool LogicProcessor::doubleStop_

private

In some experiments the MTC stop signal was doubled this flags enable removal of such an events

Definition at line 91 of file LogicProcessor.hpp.

§ lastStartTime

std::vector<double> LogicProcessor::lastStartTime

protected

time of last leading edge

Definition at line 71 of file LogicProcessor.hpp.

§ lastStopTime

std::vector<double> LogicProcessor::lastStopTime

protected

time of last trailing edge

Definition at line 72 of file LogicProcessor.hpp.

§ logicStatus

std::vector<bool> LogicProcessor::logicStatus

protected

current level of the logic signal

Definition at line 73 of file LogicProcessor.hpp.

§ plotSize

int LogicProcessor::plotSize

private

Size of the plots to make.

Definition at line 87 of file LogicProcessor.hpp.

§ startCount

std::vector<unsigned long> LogicProcessor::startCount

protected

number of starts received

Definition at line 76 of file LogicProcessor.hpp.

§ stopCount

std::vector<unsigned long> LogicProcessor::stopCount

protected

number of stops received

Definition at line 75 of file LogicProcessor.hpp.
