Class derived from ScanInterface to handle UI for the scan. More...

#include <UtkScanInterface.hpp>

Inheritance diagram for UtkScanInterface:

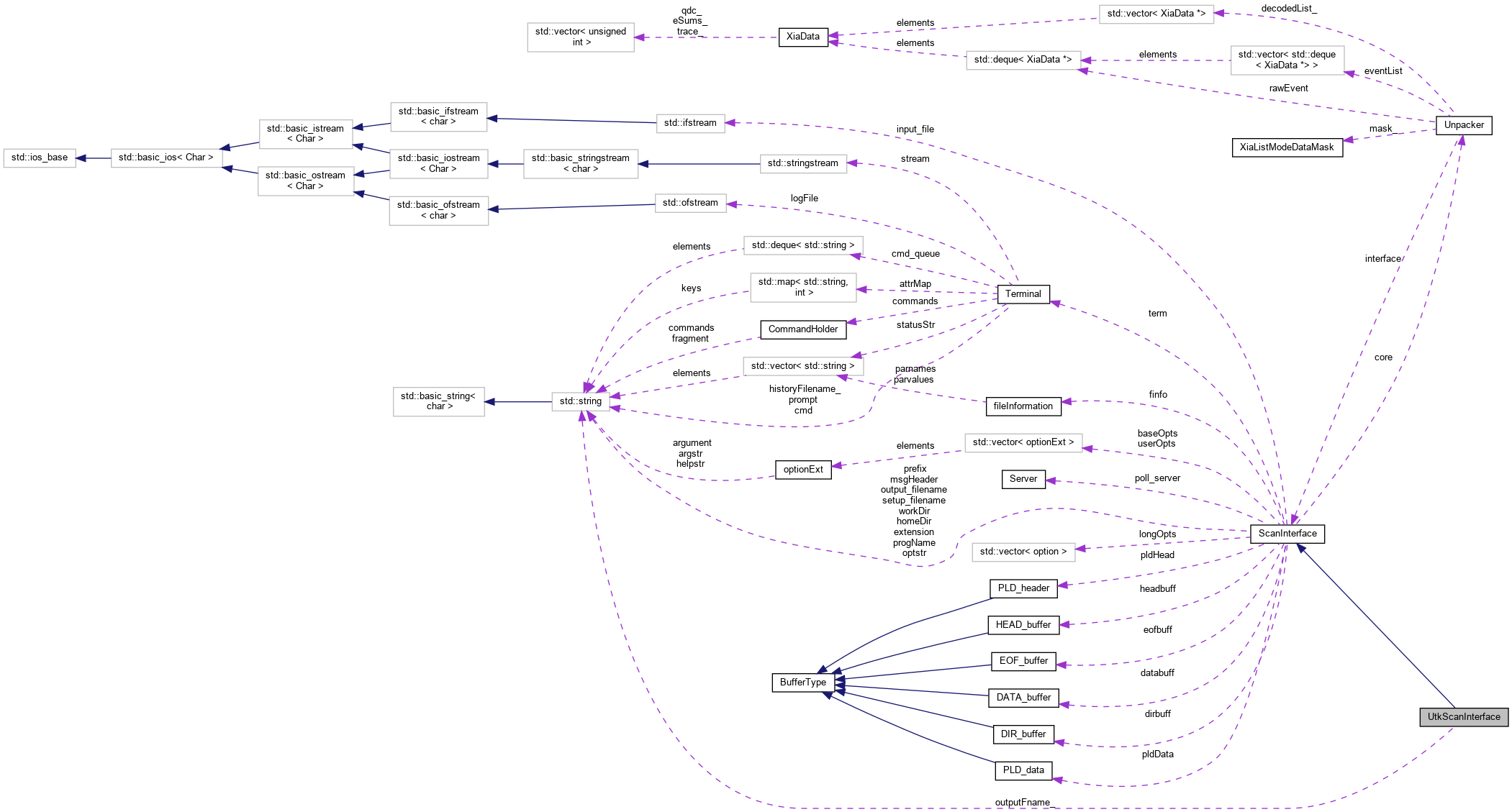

Collaboration diagram for UtkScanInterface:

[legend]

Public Member Functions
	UtkScanInterface ()
	Default constructor. More...

	~UtkScanInterface ()
	Destructor. More...

virtual bool	ExtraCommands (const std::string &cmd_, std::vector< std::string > &args_)

virtual void	ExtraArguments (int argc, char *argv[])

virtual bool	Initialize (std::string prefix_="")

virtual bool	InitRootOutput (std::string fname_, bool overwrite_=true)

virtual Unpacker *	GetCore ()

virtual void	CmdHelp (void)

virtual void	ArgHelp (void)

virtual void	SyntaxStr (char *name_)

virtual void	IdleTask (void)

virtual void	FinalInitialization ()

virtual void	Notify (const std::string &code_="")

Public Member Functions inherited from ScanInterface
	ScanInterface (Unpacker *core_=NULL)
	Default constructor. More...

virtual	~ScanInterface ()
	Default destructor. More...

bool	IsInit ()
	Return true if the ScanInterface object has been initialized. More...

bool	IsVerbose ()
	Return true if verbose output mode is enabled. More...

bool	DebugMode ()
	Return true if debug mode is enabled. More...

bool	DryRunMode ()
	Return true if dry run mode is enabled. More...

bool	ShmMode ()
	Return true if shared memory mode is enabled. More...

bool	BatchMode ()
	Return true if batch processing mode is enabled. More...

std::string	GetMessageHeader ()
	Return the header string used to prefix output messages. More...

std::string	GetProgramName ()
	Return the name of the program. More...

std::string	GetSetupFilename ()

std::string	GetOutputFilename ()

fileInformation *	GetFileInfo ()
	Return a pointer to a fileInformation object used to store file header info. More...

void	SetProgramName (const std::string &head_)
	Set the header string used to prefix output messages. More...

bool	SetVerboseMode (bool state_=true)
	Enable or disable verbose output mode. More...

bool	SetDebugMode (bool state_=true)
	Enable or disable debug mode. More...

bool	SetDryRunMode (bool state_=true)
	Enable or disable dry run mode. More...

bool	SetShmMode (bool state_=true)
	Enable or disable shared memory mode. More...

bool	SetBatchMode (bool state_=true)
	Enable or disable batch processing mode. More...

void	RunControl ()
	Main scan control method. More...

void	CmdControl ()
	Main command interpreter method. More...

bool	Setup (int argc, char *argv[])
	Setup user options and initialize all required objects. More...

int	Execute ()
	Run the program. More...

bool	Close ()
	Shutdown cleanly. More...

virtual bool	AddEvent (XiaData *event_)

virtual bool	ProcessEvents ()

Private Attributes
bool	init_

std::string	outputFname_
	Set to true when the initialization process successfully completes. More...

Additional Inherited Members
Protected Member Functions inherited from ScanInterface
void	AddOption (optionExt opt_)
	Pointer to class derived from Unpacker class. More...

virtual void	ExtraArguments ()

virtual void	CmdHelp (const std::string &prefix_="")

Protected Attributes inherited from ScanInterface
std::string	msgHeader

std::string	progName
	The string to print before program output. More...

std::vector< option >	longOpts
	The name of the program. More...

std::vector< optionExt >	baseOpts
	Vector of all command line options. More...

std::vector< optionExt >	userOpts
	Base level command line options for the scan. More...

std::string	optstr
	User added command line options. More...

Unpacker *	core

Detailed Description

Class derived from ScanInterface to handle UI for the scan.

Definition at line 11 of file UtkScanInterface.hpp.

Constructor & Destructor Documentation

§ UtkScanInterface()

UtkScanInterface::UtkScanInterface ( )

Default constructor.

Definition at line 14 of file UtkScanInterface.cpp.

§ ~UtkScanInterface()

UtkScanInterface::~UtkScanInterface ( )

Destructor.

Definition at line 19 of file UtkScanInterface.cpp.

Member Function Documentation

§ ArgHelp()

virtual void UtkScanInterface::ArgHelp ( void )

inlinevirtual

ArgHelp is used to allow a derived class to print a help statment about its own command line arguments. This method is called at the end of the ScanInterface::help method.

Returns: Nothing.

Reimplemented from ScanInterface.

Definition at line 65 of file UtkScanInterface.hpp.

Here is the call graph for this function:

§ CmdHelp()

void UtkScanInterface::CmdHelp ( void )

virtual

CmdHelp is used to allow a derived class to print a help statement about its own commands. This method is called whenever the user enters 'help' or 'h' into the interactive terminal (if available).

Parameters

[in] prefix_ String to append at the start of any output.

Returns: Nothing.

CmdHelp is used to allow a derived class to print a help statement about its own commands. This method is called whenever the user enters 'help' or 'h' into the interactive terminal (if available).

Parameters

[in] prefix_ String to append at the start of any output.

Definition at line 52 of file UtkScanInterface.cpp.

Here is the caller graph for this function:

§ ExtraArguments()

virtual void UtkScanInterface::ExtraArguments	(	int	argc,
		char *	argv[]
	)

inlinevirtual

ExtraArguments is used to send command line arguments to classes derived from ScanInterface. It has its own instance of getopts to look for its known parameters.

Parameters

[in]	argc	: The number of command line arguments
[in]	argv[]	: The arrary containing all command line arguments

Definition at line 33 of file UtkScanInterface.hpp.

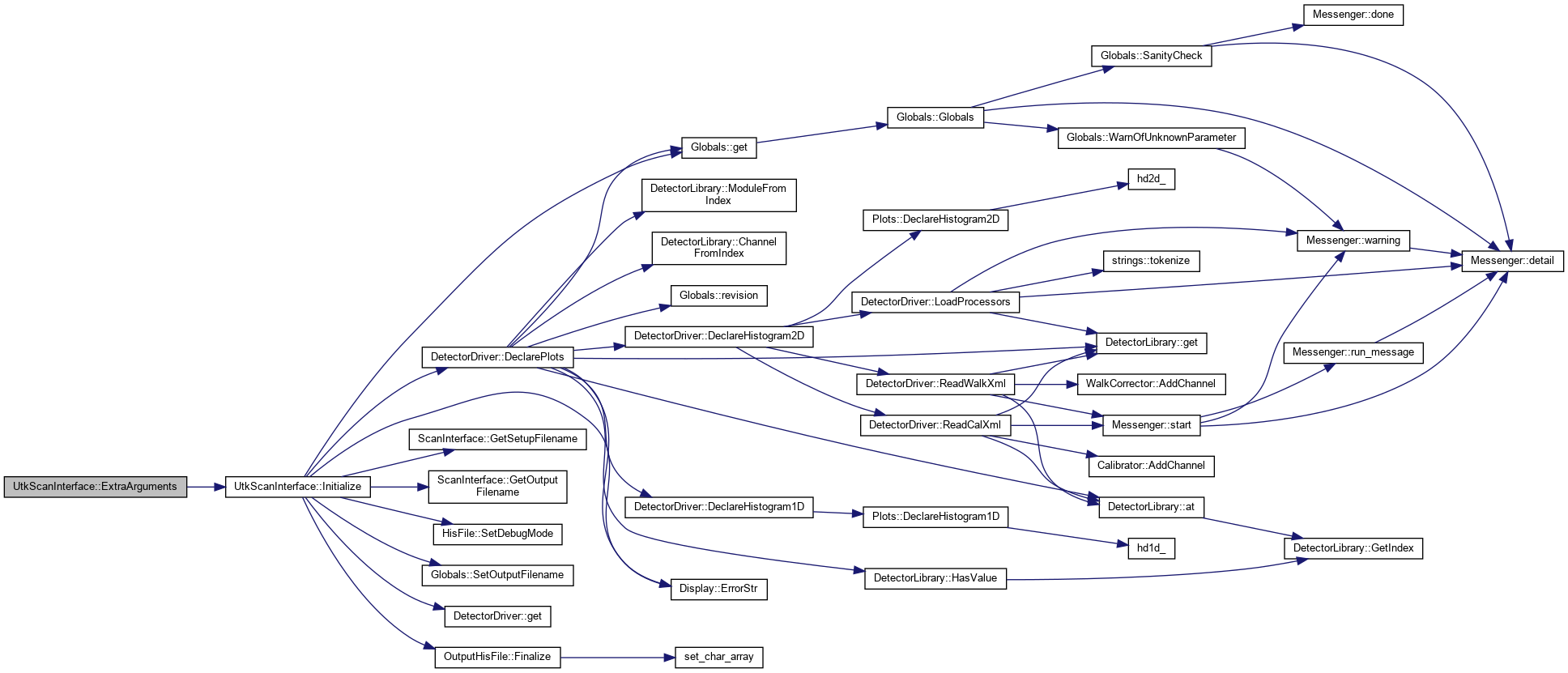

Here is the call graph for this function:

§ ExtraCommands()

bool UtkScanInterface::ExtraCommands	(	const std::string &	cmd_,
		std::vector< std::string > &	args_
	)

virtual

ExtraCommands is used to send command strings to classes derived from ScanInterface. If ScanInterface receives an unrecognized command from the user, it will pass it on to the derived class.

Parameters

[in]	cmd_	The command to interpret.
[out]	arg_	Vector or arguments to the user command.

Returns: True if the command was recognized and false otherwise.

Reimplemented from ScanInterface.

Definition at line 32 of file UtkScanInterface.cpp.

§ FinalInitialization()

void UtkScanInterface::FinalInitialization ( )

virtual

Peform any last minute initialization before processing data. /return Nothing.

Reimplemented from ScanInterface.

Definition at line 111 of file UtkScanInterface.cpp.

Here is the caller graph for this function:

§ GetCore()

Unpacker * UtkScanInterface::GetCore ( )

virtual

Return a pointer to the Unpacker object to use for data unpacking. If no object has been initialized, create a new one.

Returns: Pointer to an Unpacker object.

Reimplemented from ScanInterface.

Definition at line 135 of file UtkScanInterface.cpp.

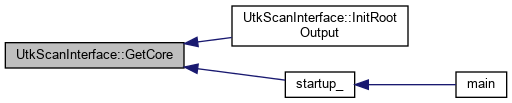

Here is the caller graph for this function:

§ IdleTask()

virtual void UtkScanInterface::IdleTask ( void )

inlinevirtual

IdleTask is called whenever a scan is running in shared memory mode, and a spill has yet to be received. This method may be used to update things which need to be updated every so often (e.g. a root TCanvas) when working with a low data rate.

Returns: Nothing.

Reimplemented from ScanInterface.

Definition at line 77 of file UtkScanInterface.hpp.

Here is the call graph for this function:

§ Initialize()

bool UtkScanInterface::Initialize ( std::string prefix_ = "" )

virtual

Initialize the map file, the config file, the processor handler, and add all of the required processors.

Parameters

[in] prefix_ String to append to the beginning of system output.

Returns: True upon successfully initializing and false otherwise.

The DetectorDriver constructor will load processors from the xml configuration file upon first call. The DeclarePlots function will instantiate the DetectorLibrary class which will read in the "map" of channels. Subsequently the raw histograms, the diagnostic histograms and the processors and analyzers plots are declared.

Note that in the PixieStd the Init function of DetectorDriver is called upon first buffer. This include reading in the calibration and walk correction factors.

Reimplemented from ScanInterface.

Definition at line 67 of file UtkScanInterface.cpp.

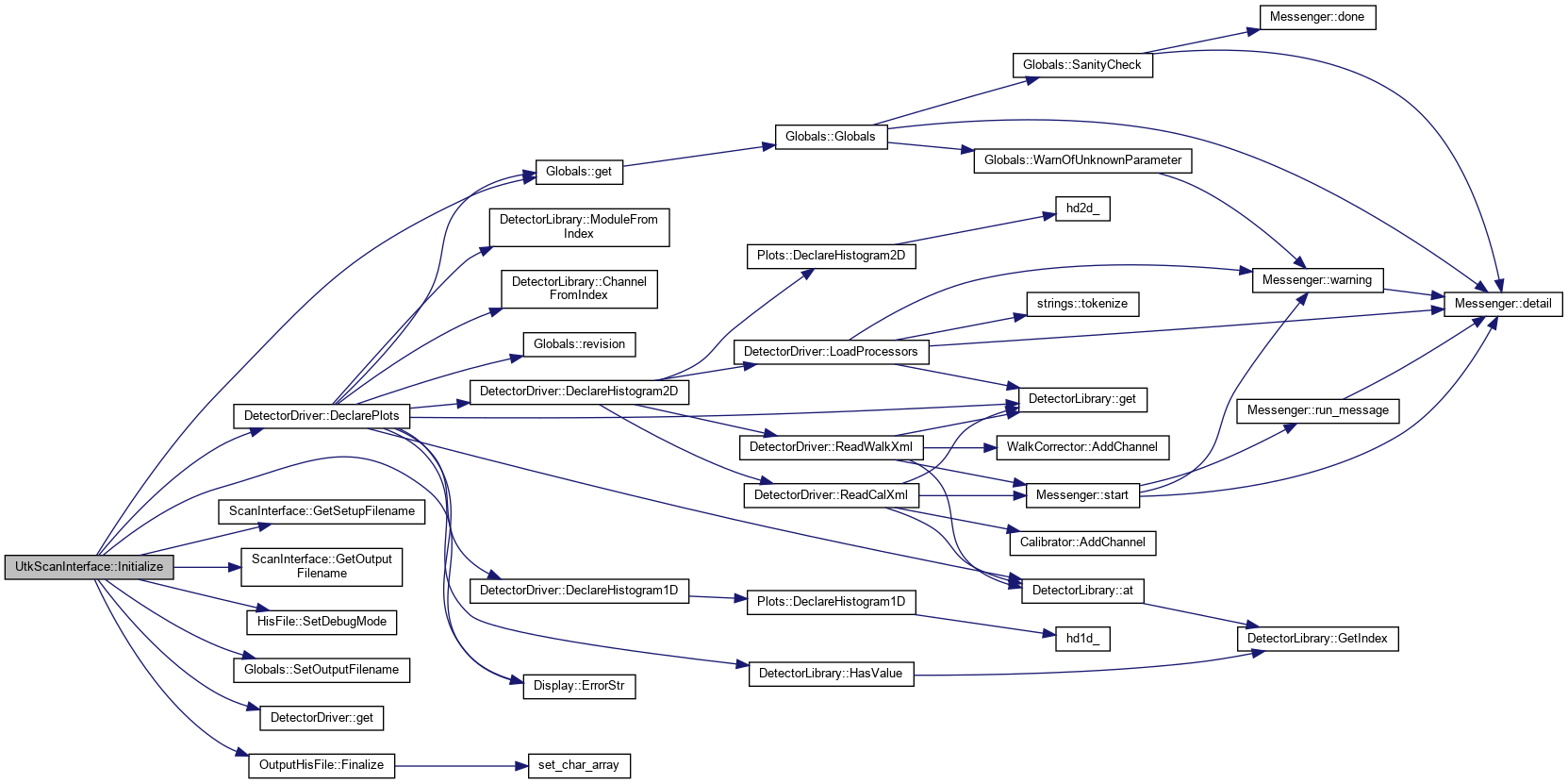

Here is the call graph for this function:

Here is the caller graph for this function:

§ InitRootOutput()

virtual bool UtkScanInterface::InitRootOutput	(	std::string	fname_,
		bool	overwrite_ = `true`
	)

inlinevirtual

Initialize the root output.

Parameters

[in]	fname_	Filename of the output root file.
[in]	overwrite_	Set to true to overwrite the output file.

Returns: True upon successfully opening the output file, false otherwise.

Reimplemented from ScanInterface.

Definition at line 45 of file UtkScanInterface.hpp.

Here is the call graph for this function:

§ Notify()

void UtkScanInterface::Notify ( const std::string & code_ = "" )

virtual

Receive various status notifications from the scan.

Parameters

[in] code_ The notification code passed from ScanInterface methods.

Returns: Nothing.

Reimplemented from ScanInterface.

Definition at line 118 of file UtkScanInterface.cpp.

Here is the caller graph for this function:

§ SyntaxStr()

void UtkScanInterface::SyntaxStr ( char * name_ )

virtual

SyntaxStr is used to print a linux style usage message to the screen.

Parameters

[in] name_ The name of the program.

Returns: Nothing.

Reimplemented from ScanInterface.

Definition at line 59 of file UtkScanInterface.cpp.

Here is the caller graph for this function:

Field Documentation

§ init_

bool UtkScanInterface::init_

private

Definition at line 89 of file UtkScanInterface.hpp.

§ outputFname_

std::string UtkScanInterface::outputFname_

private

Set to true when the initialization process successfully completes.

Definition at line 90 of file UtkScanInterface.hpp.

The documentation for this class was generated from the following files:
