#include <scope.hpp>

Inheritance diagram for scopeUnpacker:

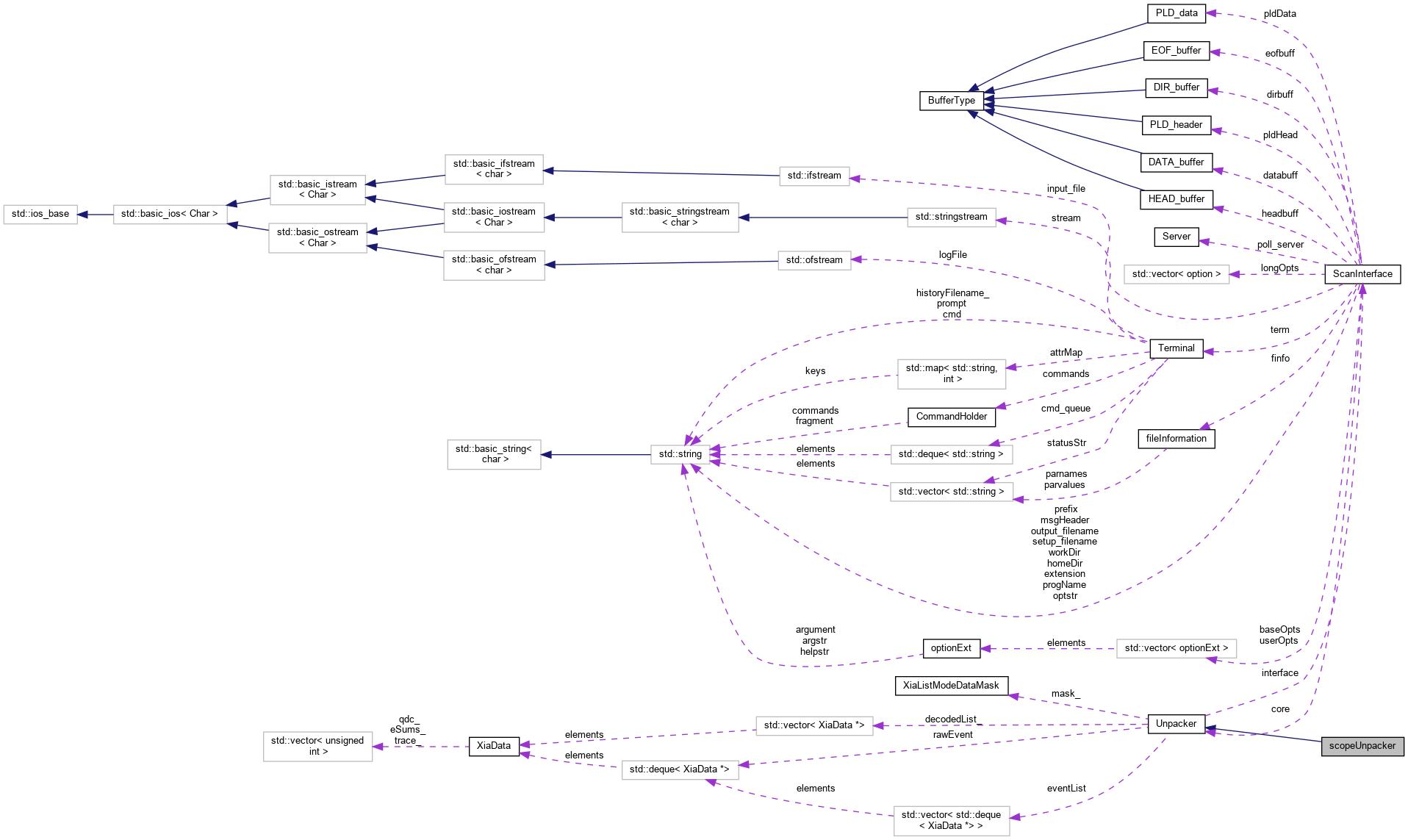

Collaboration diagram for scopeUnpacker:

[legend]

Public Member Functions
	scopeUnpacker (const unsigned int &mod=0, const unsigned int &chan=0)
	Default constructor. More...

	~scopeUnpacker ()
	Destructor. More...

int	SetMod (const unsigned int &mod)

int	SetChan (const unsigned int &chan)

void	SetThreshLow (const int &threshLow)

void	SetThreshHigh (const int &threshHigh)

unsigned int	GetMod ()

unsigned int	GetChan ()

int	GetThreshLow ()

int	GetThreshHigh ()

Public Member Functions inherited from Unpacker
	Unpacker ()
	Default constructor. More...

virtual	~Unpacker ()
	Destructor. More...

size_t	GetMaxModule ()
	Return the maximum module read from the input file. More...

unsigned int	GetNumRawEvents ()
	Return the number of raw events read from the file. More...

double	GetEventWidth ()
	Return the width of the raw event window in pixie16 clock ticks. More...

double	GetFirstTime ()
	Return the time of the first fired channel event. More...

double	GetEventStartTime ()
	Get the start time of the current raw event. More...

double	GetEventStopTime ()
	Get the stop time of the current raw event. More...

double	GetRealStartTime ()
	Get the time of the first xia event in the raw event. More...

double	GetRealStopTime ()
	Get the time of the last xia event in the raw event. More...

bool	IsRunning ()
	Return true if the scan is running and false otherwise. More...

bool	SetDebugMode (bool state_=true)
	Toggle debug mode on / off. More...

double	SetEventWidth (double width_)
	Set the width of events in pixie16 clock ticks. More...

void	InitializeDataMask (const std::string &firmware, const unsigned int &frequency)

ScanInterface *	SetInterface (ScanInterface *interface_)
	Set the address of the scan interface used for file operations. More...

bool	ReadSpill (unsigned int *data, unsigned int nWords, bool is_verbose=true)

void	Write ()

void	Stop ()

void	Run ()

Private Member Functions
virtual void	ProcessRawEvent (ScanInterface *addr_=NULL)

virtual void	RawStats (XiaData event_, ScanInterface addr_=NULL)

Private Attributes
unsigned int	mod_
	The module of the signal of interest. More...

unsigned int	chan_
	The channel of the signal of interest. More...

int	threshLow_

int	threshHigh_

Additional Inherited Members
Protected Member Functions inherited from Unpacker
int	ReadBuffer (unsigned int *buf)

Protected Attributes inherited from Unpacker
XiaListModeDataMask	mask_

double	eventWidth

bool	debug_mode
	The width of the raw event in pixie clock ticks (8 ns). More...

bool	running
	True if debug mode is set. More...

std::vector< std::deque< XiaData * > >	eventList
	True if the scan is running. More...

std::deque< XiaData * >	rawEvent
	The list of all events in a spill. More...

ScanInterface *	interface
	The list of all events in the event window. More...

Detailed Description

Definition at line 25 of file scope.hpp.

Constructor & Destructor Documentation

§ scopeUnpacker()

scopeUnpacker::scopeUnpacker	(	const unsigned int &	mod = `0`,
		const unsigned int &	chan = `0`
	)

Default constructor.

Definition at line 70 of file scope.cpp.

§ ~scopeUnpacker()

scopeUnpacker::~scopeUnpacker ( )

inline

Destructor.

Definition at line 31 of file scope.hpp.

Member Function Documentation

§ GetChan()

unsigned int scopeUnpacker::GetChan ( )

inline

Definition at line 43 of file scope.hpp.

§ GetMod()

unsigned int scopeUnpacker::GetMod ( )

inline

Definition at line 41 of file scope.hpp.

§ GetThreshHigh()

int scopeUnpacker::GetThreshHigh ( )

inline

Definition at line 47 of file scope.hpp.

§ GetThreshLow()

int scopeUnpacker::GetThreshLow ( )

inline

Definition at line 45 of file scope.hpp.

§ ProcessRawEvent()

void scopeUnpacker::ProcessRawEvent ( ScanInterface * addr_ = NULL )

privatevirtual

Process all events in the event list.

Parameters

[in] addr_ Pointer to a ScanInterface object.

Returns: Nothing.

Process all events in the event list.

Parameters

[in] addr_ Pointer to a location in memory.

Returns: Nothing.

Reimplemented from Unpacker.

Definition at line 81 of file scope.cpp.

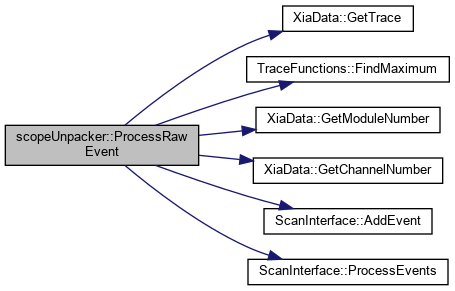

Here is the call graph for this function:

§ RawStats()

virtual void scopeUnpacker::RawStats	(	XiaData *	event_,
		ScanInterface *	addr_ = `NULL`
	)

inlineprivatevirtual

Add an event to generic statistics output.

Parameters

[in]	event_	Pointer to the current XIA event.
[in]	addr_	Pointer to a ScanInterface object.

Returns: Nothing.

Reimplemented from Unpacker.

Definition at line 66 of file scope.hpp.

§ SetChan()

int scopeUnpacker::SetChan ( const unsigned int & chan )

inline

Definition at line 35 of file scope.hpp.

§ SetMod()

int scopeUnpacker::SetMod ( const unsigned int & mod )

inline

Definition at line 33 of file scope.hpp.

§ SetThreshHigh()

void scopeUnpacker::SetThreshHigh ( const int & threshHigh )

inline

Definition at line 39 of file scope.hpp.

§ SetThreshLow()

void scopeUnpacker::SetThreshLow ( const int & threshLow )

inline

Definition at line 37 of file scope.hpp.

Field Documentation

§ chan_

unsigned int scopeUnpacker::chan_

private

The channel of the signal of interest.

Definition at line 51 of file scope.hpp.

§ mod_

unsigned int scopeUnpacker::mod_

private

The module of the signal of interest.

Definition at line 50 of file scope.hpp.

§ threshHigh_

int scopeUnpacker::threshHigh_

private

Definition at line 53 of file scope.hpp.

§ threshLow_

int scopeUnpacker::threshLow_

private

Definition at line 52 of file scope.hpp.

The documentation for this class was generated from the following files:
