Store the information for a trace. More...

#include <Trace.hpp>

Inheritance diagram for Trace:

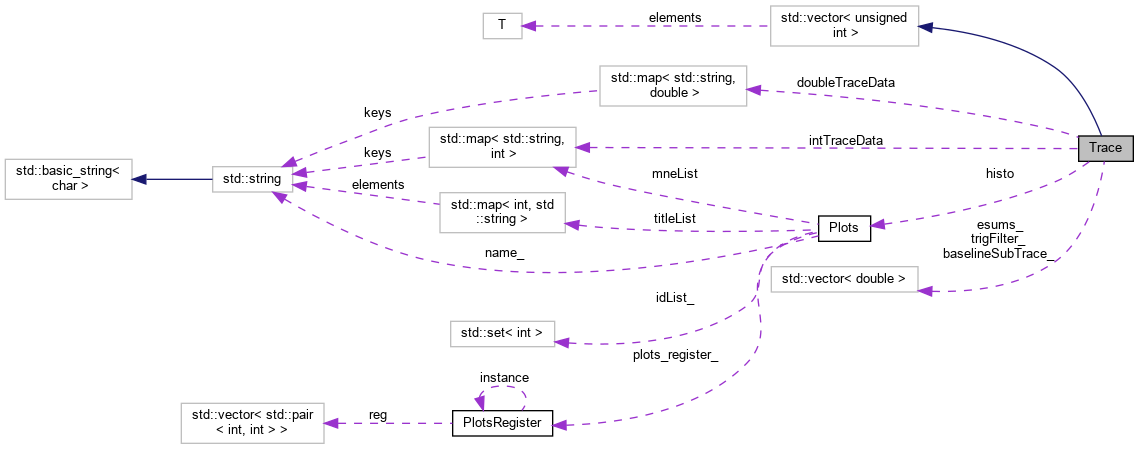

Collaboration diagram for Trace:

[legend]

Public Member Functions
	Trace ()

	Trace (const std::vector< unsigned int > &x)

void	InsertValue (const std::string &name, const double &value)

void	InsertValue (const std::string &name, const int &value)

void	SetValue (const std::string &name, const double &value)

void	SetValue (const std::string &name, const int &value)

bool	HasValue (const std::string &name) const

double	GetValue (const std::string &name) const

std::vector< double >	GetWaveform ()

std::vector< unsigned int >	GetWaveformWithBaseline ()

std::vector< double >	GetBaselineSubtractedTrace ()

virtual void	DeclareHistogram1D (int dammId, int xSize, const char *title)
	Declares a 1D histogram calls the C++ wrapper for DAMM. More...

virtual void	DeclareHistogram2D (int dammId, int xSize, int ySize, const char *title)
	Declares a 2D histogram calls the C++ wrapper for DAMM. More...

virtual void	plot (int dammId, double val1, double val2=-1, double val3=-1, const char *name="h") const
	Implementation of the plot command to interface with the DAMM routines. More...

void	Plot (int id)

void	Plot (int id, int row)

void	ScalePlot (int id, double scale)

void	ScalePlot (int id, int row, double scale)

void	OffsetPlot (int id, double offset)

void	OffsetPlot (int id, int row, double offset)

void	SetWaveformRange (const std::pair< unsigned int, unsigned int > &a)

void	SetBaselineSubtractedTrace (const std::vector< double > &a)
	sets the baseline subtracted trace for use. More...

void	SetTriggerFilter (const std::vector< double > &a)

void	SetEnergySums (const std::vector< double > &a)

Private Attributes
std::pair< unsigned int, unsigned int >	waveformRange_
	< The range of the waveform. More...

std::vector< double >	baselineSubTrace_

std::vector< double >	trigFilter_
	!< Baseline subtracted trace More...

std::vector< double >	esums_
	The Energy sums calculated from the trace. More...

std::map< std::string, double >	doubleTraceData
	Trace data stored as doubles. More...

std::map< std::string, int >	intTraceData
	Trace data stored as ints. More...

Static Private Attributes
static Plots	histo

Detailed Description

Store the information for a trace.

Definition at line 23 of file Trace.hpp.

Constructor & Destructor Documentation

§ Trace() [1/2]

Trace::Trace ( )

inline

Default constructor

Definition at line 26 of file Trace.hpp.

§ Trace() [2/2]

Trace::Trace ( const std::vector< unsigned int > & x )

inline

An automatic conversion for the trace

Parameters

[in] x : the trace to store in the class

Definition at line 30 of file Trace.hpp.

Member Function Documentation

§ DeclareHistogram1D()

virtual void Trace::DeclareHistogram1D	(	int	dammId,
		int	xSize,
		const char *	title
	)

inlinevirtual

Declares a 1D histogram calls the C++ wrapper for DAMM.

Parameters

[in]	dammId	: The histogram number to define
[in]	xSize	: The range of the x-axis
[in]	title	: The title for the histogram

Definition at line 108 of file Trace.hpp.

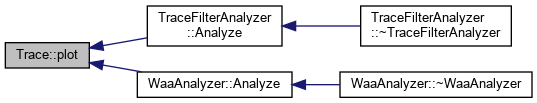

Here is the call graph for this function:

Here is the caller graph for this function:

§ DeclareHistogram2D()

virtual void Trace::DeclareHistogram2D	(	int	dammId,
		int	xSize,
		int	ySize,
		const char *	title
	)

inlinevirtual

Declares a 2D histogram calls the C++ wrapper for DAMM.

Parameters

[in]	dammId	: The histogram number to define
[in]	xSize	: The range of the x-axis
[in]	ySize	: The range of the y-axis
[in]	title	: The title of the histogram

Definition at line 117 of file Trace.hpp.

Here is the call graph for this function:

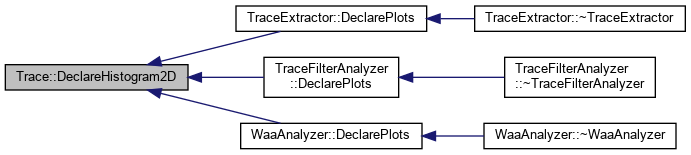

Here is the caller graph for this function:

§ GetBaselineSubtractedTrace()

std::vector<double> Trace::GetBaselineSubtractedTrace ( )

inline

Returns: Returns the waveform that still has the baseline

Definition at line 100 of file Trace.hpp.

Here is the caller graph for this function:

§ GetValue()

double Trace::GetValue ( const std::string & name ) const

inline

Returns the value of the requested parameter

Parameters

[in] name : the name of the parameter to get for

Returns: the requested value

Definition at line 77 of file Trace.hpp.

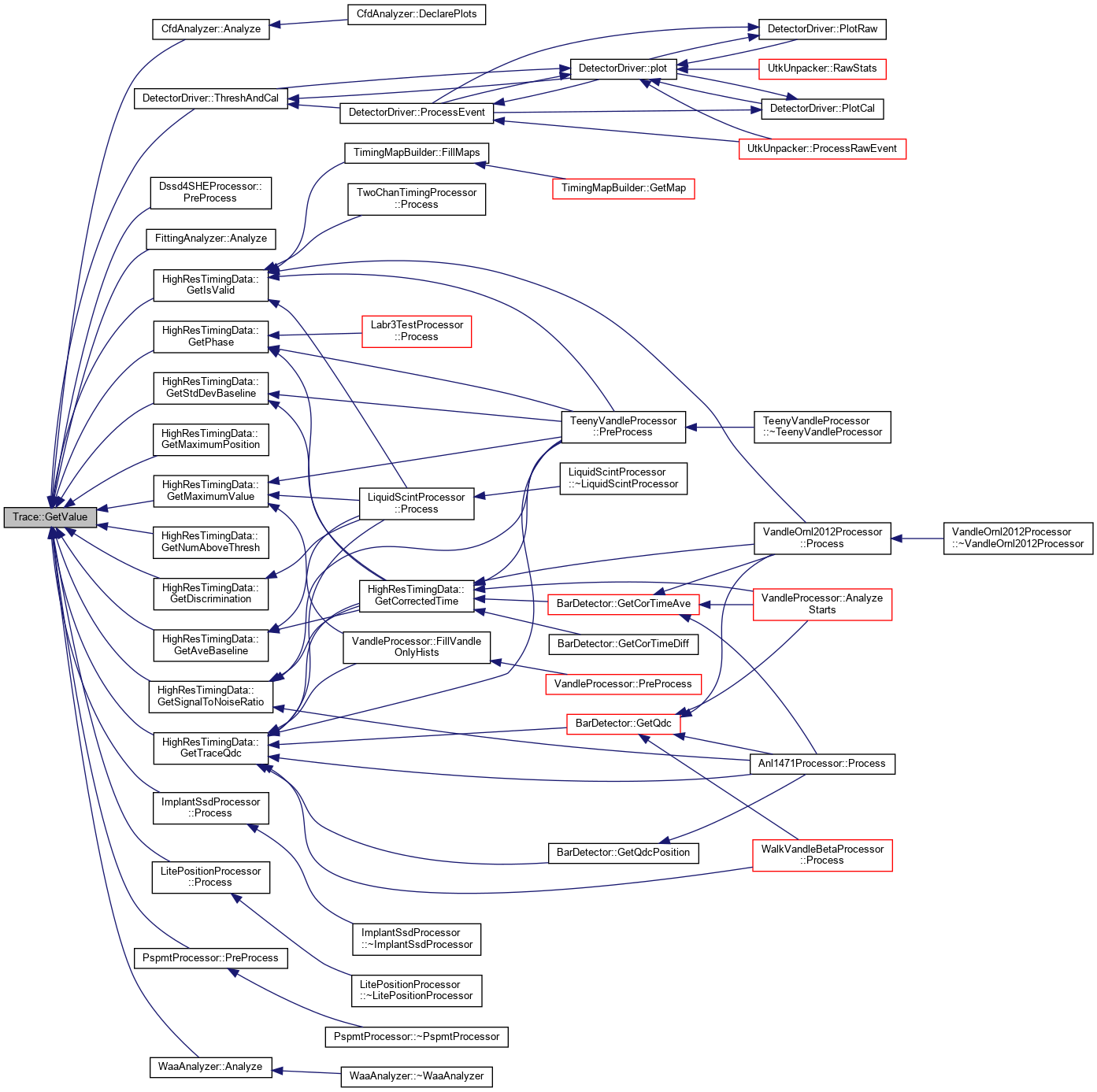

Here is the caller graph for this function:

§ GetWaveform()

std::vector<double> Trace::GetWaveform ( )

inline

Returns: Returns the waveform found inside the trace

Definition at line 86 of file Trace.hpp.

Here is the caller graph for this function:

§ GetWaveformWithBaseline()

std::vector<unsigned int> Trace::GetWaveformWithBaseline ( )

inline

Returns: Returns the waveform that still has the baseline

Definition at line 94 of file Trace.hpp.

§ HasValue()

bool Trace::HasValue ( const std::string & name ) const

inline

Checks to see if a parameter has a value

Parameters

[in] name : the name of the parameter to check for

Returns: true if the value exists in the trace

Definition at line 69 of file Trace.hpp.

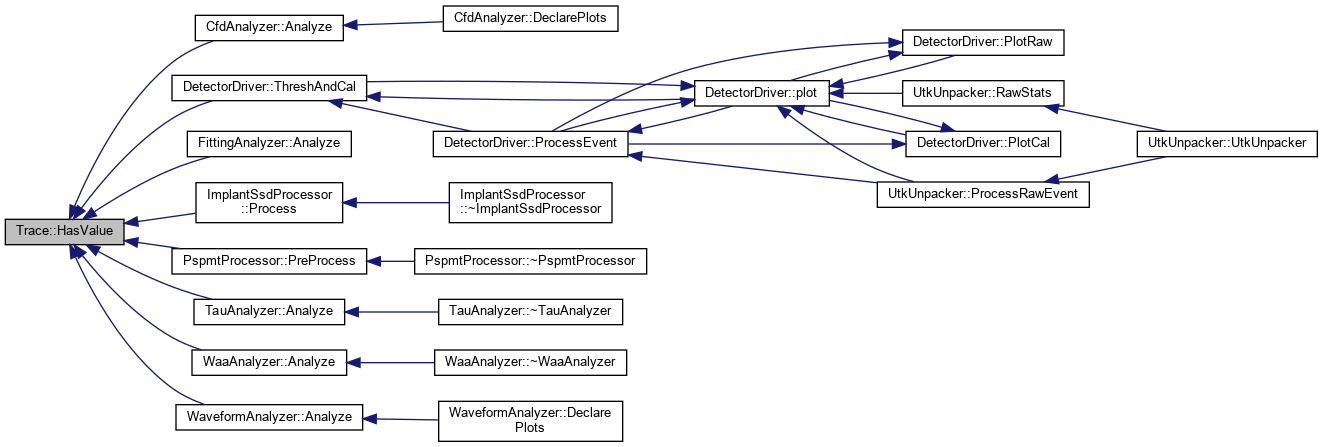

Here is the caller graph for this function:

§ InsertValue() [1/2]

void Trace::InsertValue	(	const std::string &	name,
		const double &	value
	)

inline

Insert a value into the trace map

Parameters

[in]	name	: the name of the parameter to insert
[in]	value	: the value to insert into the map

Definition at line 35 of file Trace.hpp.

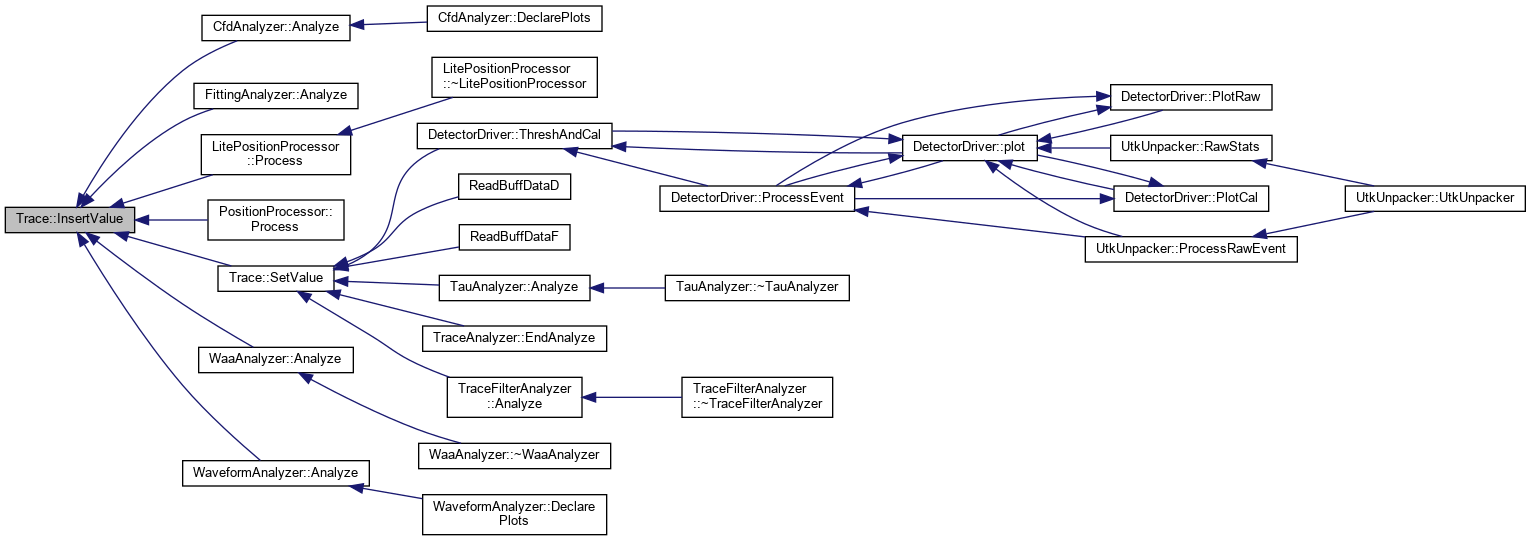

Here is the caller graph for this function:

§ InsertValue() [2/2]

void Trace::InsertValue	(	const std::string &	name,
		const int &	value
	)

inline

Insert an int value into the trace

Parameters

[in]	name	: the name of the variable to insert
[in]	value	: The integer value to insert into the map

Definition at line 42 of file Trace.hpp.

§ OffsetPlot() [1/2]

void Trace::OffsetPlot	(	int	id,
		double	offset
	)

plot trace with a vertical offset in a 1D histogram

Parameters

[in]	id	: histogram ID to plot into
[in]	offset	: the offset for the trace

Definition at line 46 of file Analysis/Utkscan/core/source/trace.cpp.

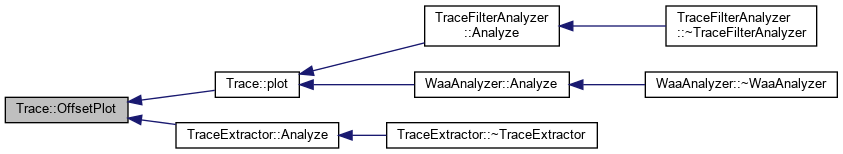

Here is the caller graph for this function:

§ OffsetPlot() [2/2]

void Trace::OffsetPlot	(	int	id,
		int	row,
		double	offset
	)

plot trace with a vertical offset in a 2D histogram

Parameters

[in]	id	: histogram ID to plot into
[in]	row	: the row to plot the trace into
[in]	offset	: the offset for the trace

Definition at line 52 of file Analysis/Utkscan/core/source/trace.cpp.

§ plot()

virtual void Trace::plot	(	int	dammId,
		double	val1,
		double	val2 = `-1`,
		double	val3 = `-1`,
		const char *	name = `"h"`
	)		const

inlinevirtual

Implementation of the plot command to interface with the DAMM routines.

This is also done in the EventProcessor class, redundant?

Parameters

[in]	dammId	: The histogram number to plot into
[in]	val1	: The x value to plot
[in]	val2	: The y value to plot (if 2D histogram)
[in]	val3	: The z value to plot (if 2D histogram)
[in]	name	: The name of the histogram

Definition at line 131 of file Trace.hpp.

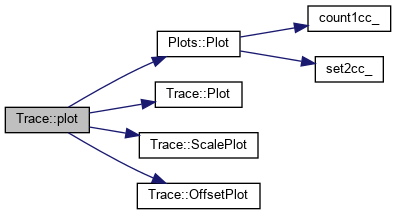

Here is the call graph for this function:

Here is the caller graph for this function:

§ Plot() [1/2]

void Trace::Plot ( int id )

plot trace into a 1D histogram

Parameters

[in] id : histogram ID to plot into

Definition at line 22 of file Analysis/Utkscan/core/source/trace.cpp.

Here is the caller graph for this function:

§ Plot() [2/2]

void Trace::Plot	(	int	id,
		int	row
	)

plot trace into row of a 2D histogram

Parameters

[in]	id	: histogram ID to plot into
[in]	row	: the row to plot into

Definition at line 28 of file Analysis/Utkscan/core/source/trace.cpp.

§ ScalePlot() [1/2]

void Trace::ScalePlot	(	int	id,
		double	scale
	)

plot trace absolute value and scaled into a 1D histogram

Parameters

[in]	id	: histogram ID to plot into
[in]	scale	: the scaling for the trace

Definition at line 34 of file Analysis/Utkscan/core/source/trace.cpp.

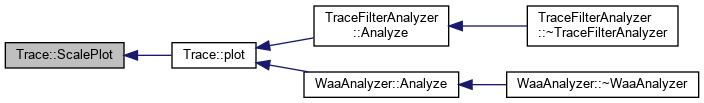

Here is the caller graph for this function:

§ ScalePlot() [2/2]

void Trace::ScalePlot	(	int	id,
		int	row,
		double	scale
	)

plot trace absolute value and scaled into a 2D histogram

Parameters

[in]	id	: histogram ID to plot into
[in]	row	: the row to plot the histogram into
[in]	scale	: the scaling for the trace

Definition at line 40 of file Analysis/Utkscan/core/source/trace.cpp.

§ SetBaselineSubtractedTrace()

void Trace::SetBaselineSubtractedTrace ( const std::vector< double > & a )

inline

sets the baseline subtracted trace for use.

Parameters

[in] a : The vector that we are going to assign.

Definition at line 175 of file Trace.hpp.

Here is the caller graph for this function:

§ SetEnergySums()

void Trace::SetEnergySums ( const std::vector< double > & a )

inline

sets the energy sums vector if we are using the TriggerFilterAnalyzer

Parameters

[in] a : the vector of energy sums

Definition at line 185 of file Trace.hpp.

Here is the caller graph for this function:

§ SetTriggerFilter()

void Trace::SetTriggerFilter ( const std::vector< double > & a )

inline

sets the trigger filter if we are using the TriggerFilterAnalyzer

Parameters

[in] a : the vector with the trigger filter

Definition at line 181 of file Trace.hpp.

Here is the caller graph for this function:

§ SetValue() [1/2]

void Trace::SetValue	(	const std::string &	name,
		const double &	value
	)

inline

Set the double value of a parameter in the trace

Parameters

[in]	name	: the name of the parameter to set
[in]	value	: the double value to set the parameter to

Definition at line 49 of file Trace.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

§ SetValue() [2/2]

void Trace::SetValue	(	const std::string &	name,
		const int &	value
	)

inline

Set the integer value of a parameter in the trace

Parameters

[in]	name	: the name of the parameter to set
[in]	value	: the int value to set the parameter to

Definition at line 59 of file Trace.hpp.

Here is the call graph for this function:

§ SetWaveformRange()

void Trace::SetWaveformRange ( const std::pair< unsigned int, unsigned int > & a )

inline

sets the waveform low and high bounds.

Parameters

[in] a : the range we want to set

Definition at line 169 of file Trace.hpp.

Here is the caller graph for this function:

Field Documentation

§ baselineSubTrace_

std::vector<double> Trace::baselineSubTrace_

private

Definition at line 191 of file Trace.hpp.

§ doubleTraceData

std::map<std::string, double> Trace::doubleTraceData

private

Trace data stored as doubles.

Definition at line 195 of file Trace.hpp.

§ esums_

std::vector<double> Trace::esums_

private

The Energy sums calculated from the trace.

Definition at line 193 of file Trace.hpp.

§ histo

Plots Trace::histo

staticprivate

This field is static so all instances of Trace class have access to the same plots and plots range.

This creates the static instance of the Plots class before main. This may cause a static initialization order fiasco. Be AWARE!!

Definition at line 200 of file Trace.hpp.

§ intTraceData

std::map<std::string, int> Trace::intTraceData

private

Trace data stored as ints.

Definition at line 196 of file Trace.hpp.

§ trigFilter_

std::vector<double> Trace::trigFilter_

private

!< Baseline subtracted trace

The trigger filter for the trace

Definition at line 192 of file Trace.hpp.

§ waveformRange_

std::pair<unsigned int, unsigned int> Trace::waveformRange_

private

< The range of the waveform.

Definition at line 189 of file Trace.hpp.

The documentation for this class was generated from the following files:

Public Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

§ Trace() [1/2]

§ Trace() [2/2]

Member Function Documentation

§ DeclareHistogram1D()

§ DeclareHistogram2D()

§ GetBaselineSubtractedTrace()

§ GetValue()

§ GetWaveform()

§ GetWaveformWithBaseline()

§ HasValue()

§ InsertValue() [1/2]

§ InsertValue() [2/2]

§ OffsetPlot() [1/2]

§ OffsetPlot() [2/2]

§ plot()

§ Plot() [1/2]

§ Plot() [2/2]

§ ScalePlot() [1/2]

§ ScalePlot() [2/2]

§ SetBaselineSubtractedTrace()

§ SetEnergySums()

§ SetTriggerFilter()

§ SetValue() [1/2]

§ SetValue() [2/2]

§ SetWaveformRange()

Field Documentation

§ baselineSubTrace_

§ doubleTraceData

§ esums_

§ histo

§ intTraceData

§ trigFilter_

§ waveformRange_
