DoubleBetaProcessor Class Reference

A generic processor to be used as a template for others. More...

#include <DoubleBetaProcessor.hpp>

Inheritance diagram for DoubleBetaProcessor:

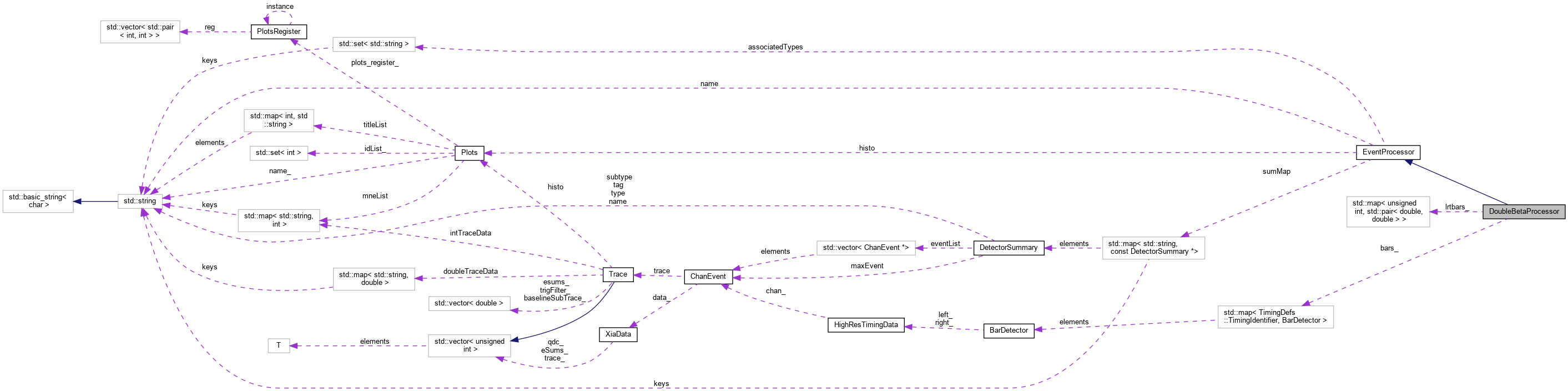

Collaboration diagram for DoubleBetaProcessor:

Public Member Functions
	DoubleBetaProcessor ()
	~DoubleBetaProcessor ()
virtual void	DeclarePlots (void)
virtual bool	PreProcess (RawEvent &event)
virtual bool	Process (RawEvent &event)
BarMap	GetBars (void)
std::map< unsigned int, std::pair< double, double > >	GetLowResBars (void)
Public Member Functions inherited from EventProcessor
	EventProcessor ()
	EventProcessor (int offset, int range, std::string name)
virtual	~EventProcessor ()
virtual const std::set< std::string > &	GetTypes (void) const
virtual bool	DidProcess (void) const
virtual bool	HasEvent (void) const
virtual bool	Init (RawEvent &event)
void	EndProcess (void)
std::string	GetName (void) const

Private Attributes
BarMap	bars_
	Map holding all the bars we found. More...
std::map< unsigned int, std::pair< double, double > >	lrtbars_
	map holding low res bars More...

Additional Inherited Members
Protected Member Functions inherited from EventProcessor
virtual void	plot (int dammId, double val1, double val2=-1, double val3=-1, const char *name="h")
	Implementation of the plot command to interface with the DAMM routines. More...
virtual void	DeclareHistogram1D (int dammId, int xSize, const char *title)
	Declares a 1D histogram calls the C++ wrapper for DAMM. More...
virtual void	DeclareHistogram2D (int dammId, int xSize, int ySize, const char *title)
	Declares a 2D histogram calls the C++ wrapper for DAMM. More...
Protected Attributes inherited from EventProcessor
std::string	name
	Name of the Processor. More...
std::set< std::string >	associatedTypes
	Set of associated types for Processor. More...
bool	initDone
	True if the initialization has finished. More...
bool	didProcess
	True if the process finished. More...
std::map< std::string, const DetectorSummary * >	sumMap
	Map of associated detector summary. More...
Plots	histo

Detailed Description

A generic processor to be used as a template for others.

Definition at line 14 of file DoubleBetaProcessor.hpp.

Constructor & Destructor Documentation

DoubleBetaProcessor()

DoubleBetaProcessor::DoubleBetaProcessor

(

)

Default Constructor

Definition at line 28 of file DoubleBetaProcessor.cpp.

~DoubleBetaProcessor()

DoubleBetaProcessor::~DoubleBetaProcessor ( )

inline

Default Destructor

Definition at line 19 of file DoubleBetaProcessor.hpp.

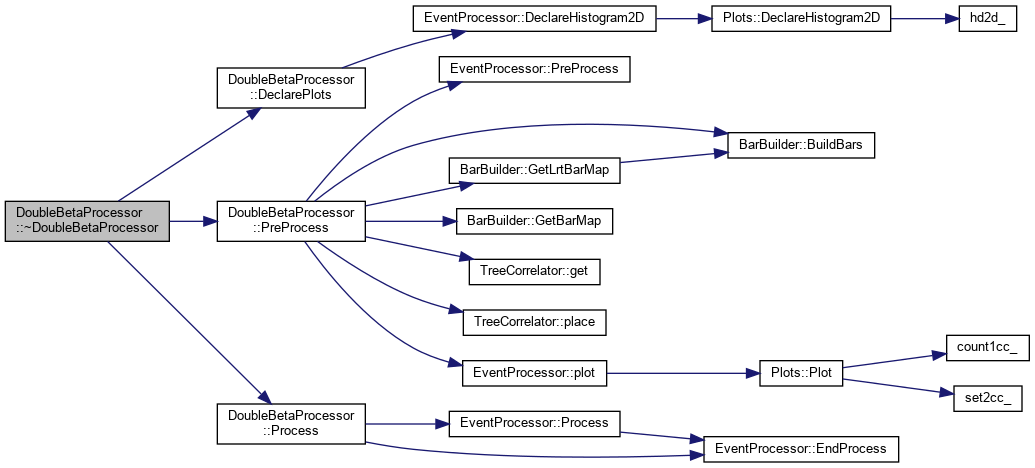

Here is the call graph for this function:

Member Function Documentation

DeclarePlots()

void DoubleBetaProcessor::DeclarePlots ( void  )

virtual

Declares the plots for the processor

Reimplemented from EventProcessor.

Definition at line 33 of file DoubleBetaProcessor.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

GetBars()

BarMap DoubleBetaProcessor::GetBars ( void  )

inline

Returns

The map of the bars that had high resolution timing

Definition at line 33 of file DoubleBetaProcessor.hpp.

GetLowResBars()

std::map<unsigned int, std::pair<double,double> > DoubleBetaProcessor::GetLowResBars ( void  )

inline

Returns

the map of the bars that had low resolution timing

Definition at line 35 of file DoubleBetaProcessor.hpp.

PreProcess()

bool DoubleBetaProcessor::PreProcess ( RawEvent &  event )

virtual

Performs the preprocessing, which cannot depend on other processors

Parameters

[in]

event

: the event to process

Returns

true if preprocessing was successful

Reimplemented from EventProcessor.

Definition at line 40 of file DoubleBetaProcessor.cpp.

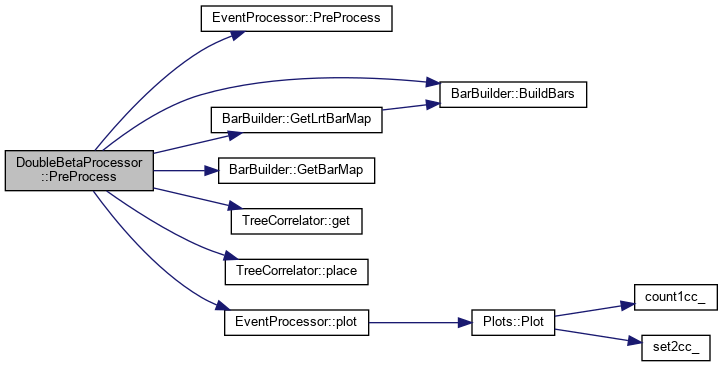

Here is the call graph for this function:

Here is the caller graph for this function:

Process()

bool DoubleBetaProcessor::Process ( RawEvent &  event )

virtual

Performs the main processsing, which may depend on other processors

Parameters

[in]

event

: the event to process

Returns

true if processing was successful

Reimplemented from EventProcessor.

Definition at line 82 of file DoubleBetaProcessor.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

bars_

BarMap DoubleBetaProcessor::bars_

private

Map holding all the bars we found.

Definition at line 39 of file DoubleBetaProcessor.hpp.

lrtbars_

std::map<unsigned int, std::pair<double,double> > DoubleBetaProcessor::lrtbars_

private

map holding low res bars

Definition at line 40 of file DoubleBetaProcessor.hpp.

---

The documentation for this class was generated from the following files:

• DoubleBetaProcessor.hpp
• DoubleBetaProcessor.cpp
