Class to process VANDLE related events. More...

#include <WalkVandleBetaProcessor.hpp>

Inheritance diagram for WalkVandleBetaProcessor:

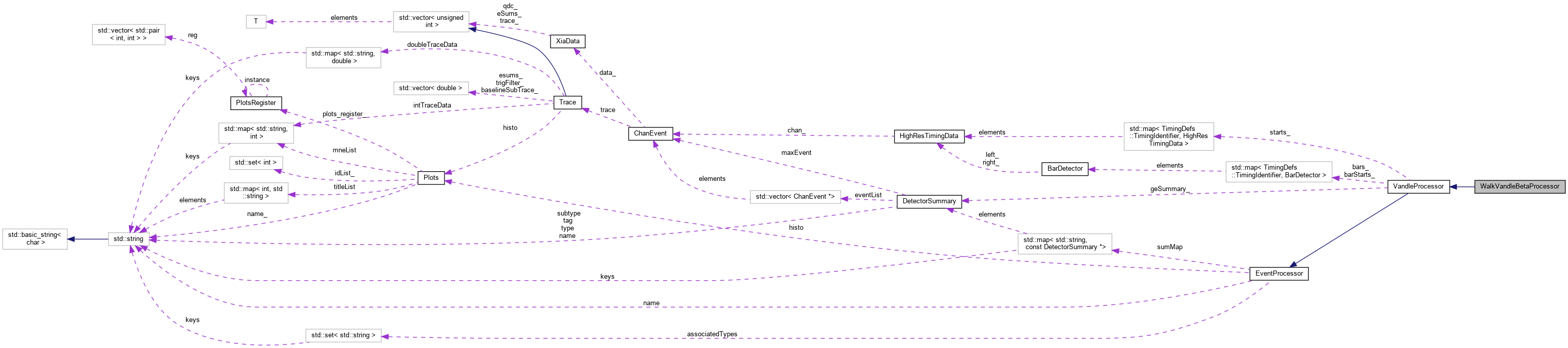

Collaboration diagram for WalkVandleBetaProcessor:

[legend]

Public Member Functions
	WalkVandleBetaProcessor ()

	~WalkVandleBetaProcessor ()

virtual void	DeclarePlots (void)

	WalkVandleBetaProcessor (const std::vector< std::string > &typeList, const double &res, const double &offset, const double &numStarts)

virtual bool	Process (RawEvent &event)

Public Member Functions inherited from VandleProcessor
	VandleProcessor ()

	~VandleProcessor ()

	VandleProcessor (const std::vector< std::string > &typeList, const double &res, const double &offset, const unsigned int &numStarts)

virtual bool	PreProcess (RawEvent &event)

virtual double	CorrectTOF (const double &TOF, const double &corRadius, const double &z0)
	Correct the time of flight based on the geometry of the setup. More...

BarMap	GetBars (void)

bool	GetHasSmall (void)

bool	GetHasMed (void)

bool	GetHasBig (void)

Public Member Functions inherited from EventProcessor
	EventProcessor ()

	EventProcessor (int offset, int range, std::string name)

virtual	~EventProcessor ()

virtual const std::set< std::string > &	GetTypes (void) const

virtual bool	DidProcess (void) const

virtual bool	HasEvent (void) const

virtual bool	Init (RawEvent &event)

void	EndProcess (void)

std::string	GetName (void) const

Additional Inherited Members
Protected Member Functions inherited from EventProcessor
virtual void	plot (int dammId, double val1, double val2=-1, double val3=-1, const char *name="h")
	Implementation of the plot command to interface with the DAMM routines. More...

virtual void	DeclareHistogram1D (int dammId, int xSize, const char *title)
	Declares a 1D histogram calls the C++ wrapper for DAMM. More...

virtual void	DeclareHistogram2D (int dammId, int xSize, int ySize, const char *title)
	Declares a 2D histogram calls the C++ wrapper for DAMM. More...

Protected Attributes inherited from VandleProcessor
BarMap	bars_
	A map to hold all the bars. More...

TimingMap	starts_
	A map to to hold all the starts. More...

BarMap	barStarts_
	A map that holds all of the bar starts. More...

DetectorSummary *	geSummary_
	The Detector Summary for Ge Events. More...

bool	hasDecay_
	True if there was a correlated beta decay. More...

double	decayTime_
	the time of the decay More...

double	plotMult_
	The resolution multiplier for DAMM histograms. More...

double	plotOffset_
	The offset multiplier for DAMM histograms. More...

bool	hasSmall_
	True if small bars were requested in the Config. More...

bool	hasBig_
	True if big bars were requested in the Config. More...

bool	hasMed_
	True if medium bars were requested in the Config. More...

unsigned int	numStarts_
	The number of starts set in the Config File. More...

Protected Attributes inherited from EventProcessor
std::string	name
	Name of the Processor. More...

std::set< std::string >	associatedTypes
	Set of associated types for Processor. More...

bool	initDone
	True if the initialization has finished. More...

bool	didProcess
	True if the process finished. More...

std::map< std::string, const DetectorSummary * >	sumMap
	Map of associated detector summary. More...

Plots	histo

Detailed Description

Class to process VANDLE related events.

Definition at line 13 of file WalkVandleBetaProcessor.hpp.

Constructor & Destructor Documentation

§ WalkVandleBetaProcessor() [1/2]

WalkVandleBetaProcessor::WalkVandleBetaProcessor ( )

Default Constructor

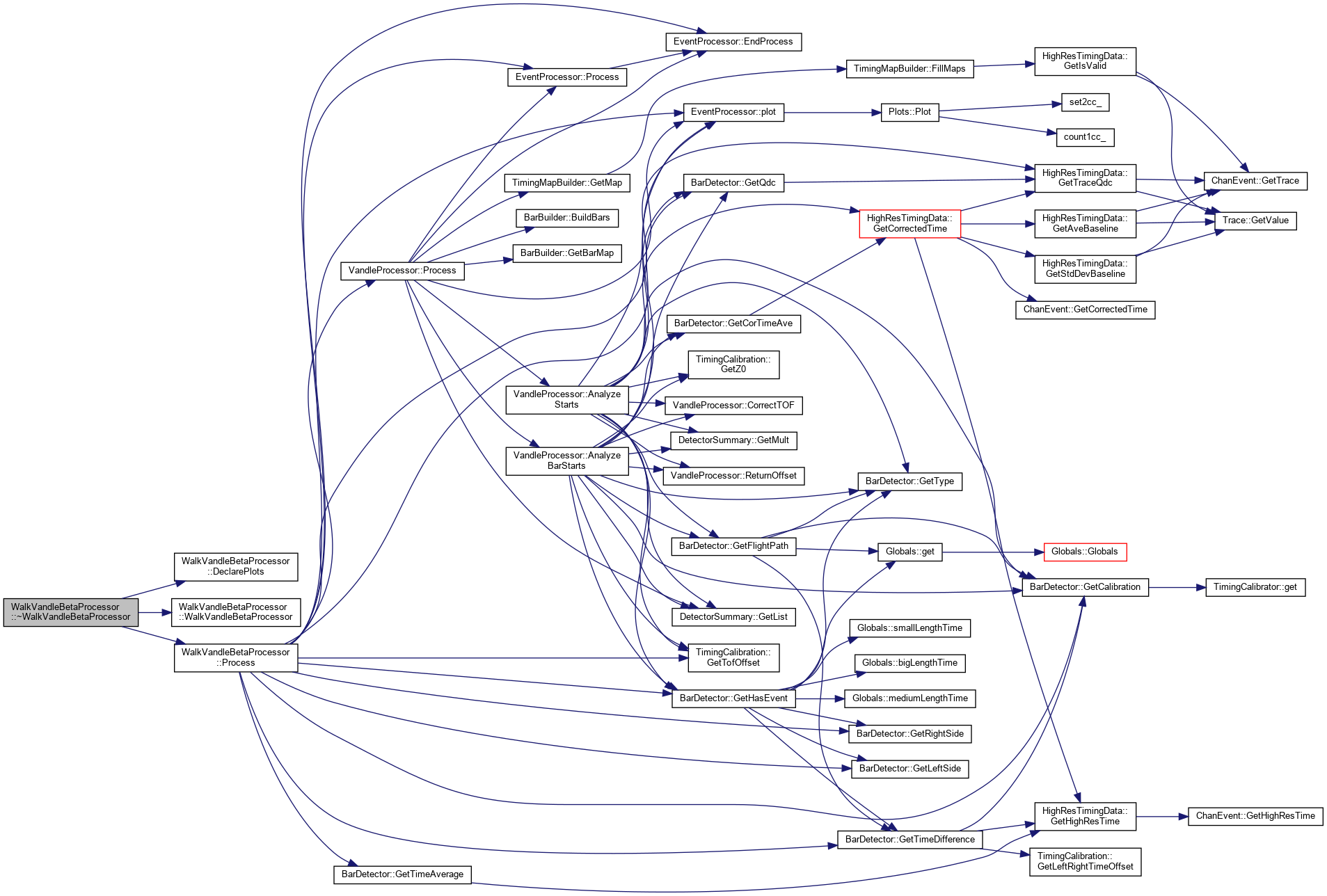

Here is the caller graph for this function:

§ ~WalkVandleBetaProcessor()

WalkVandleBetaProcessor::~WalkVandleBetaProcessor ( )

inline

Default Destructor

Definition at line 18 of file WalkVandleBetaProcessor.hpp.

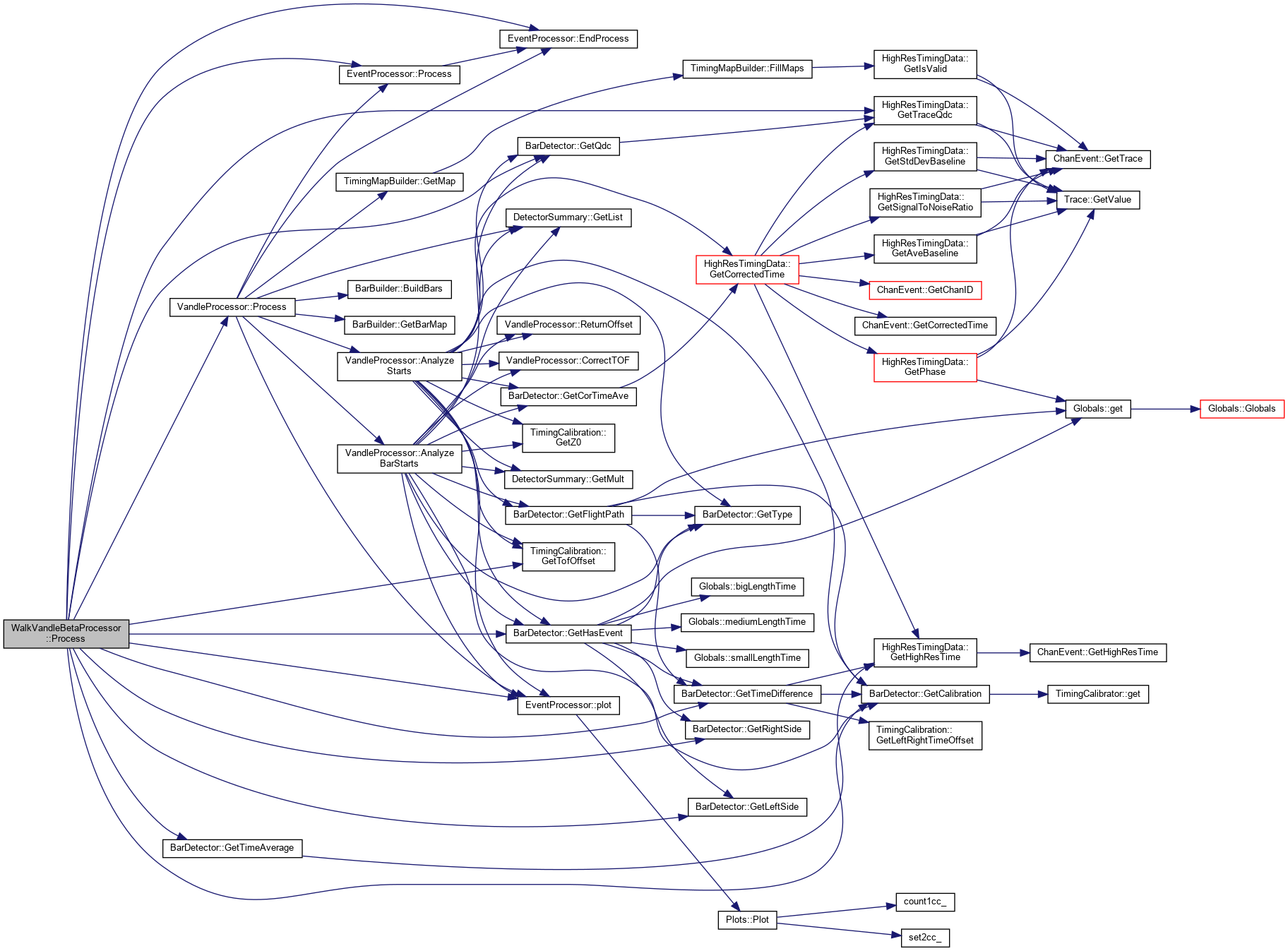

Here is the call graph for this function:

§ WalkVandleBetaProcessor() [2/2]

WalkVandleBetaProcessor::WalkVandleBetaProcessor	(	const std::vector< std::string > &	typeList,
		const double &	res,
		const double &	offset,
		const double &	numStarts
	)

Constructor taking a list of detector types as an argument

Parameters

[in]	typeList	: the list of bar types that are in the analysis
[in]	res	: The resolution of the DAMM histograms
[in]	offset	: The offset of the DAMM histograms
[in]	numStarts	: the number of starts in the analysis
