#include <filterer.hpp>

Inheritance diagram for Filterer:

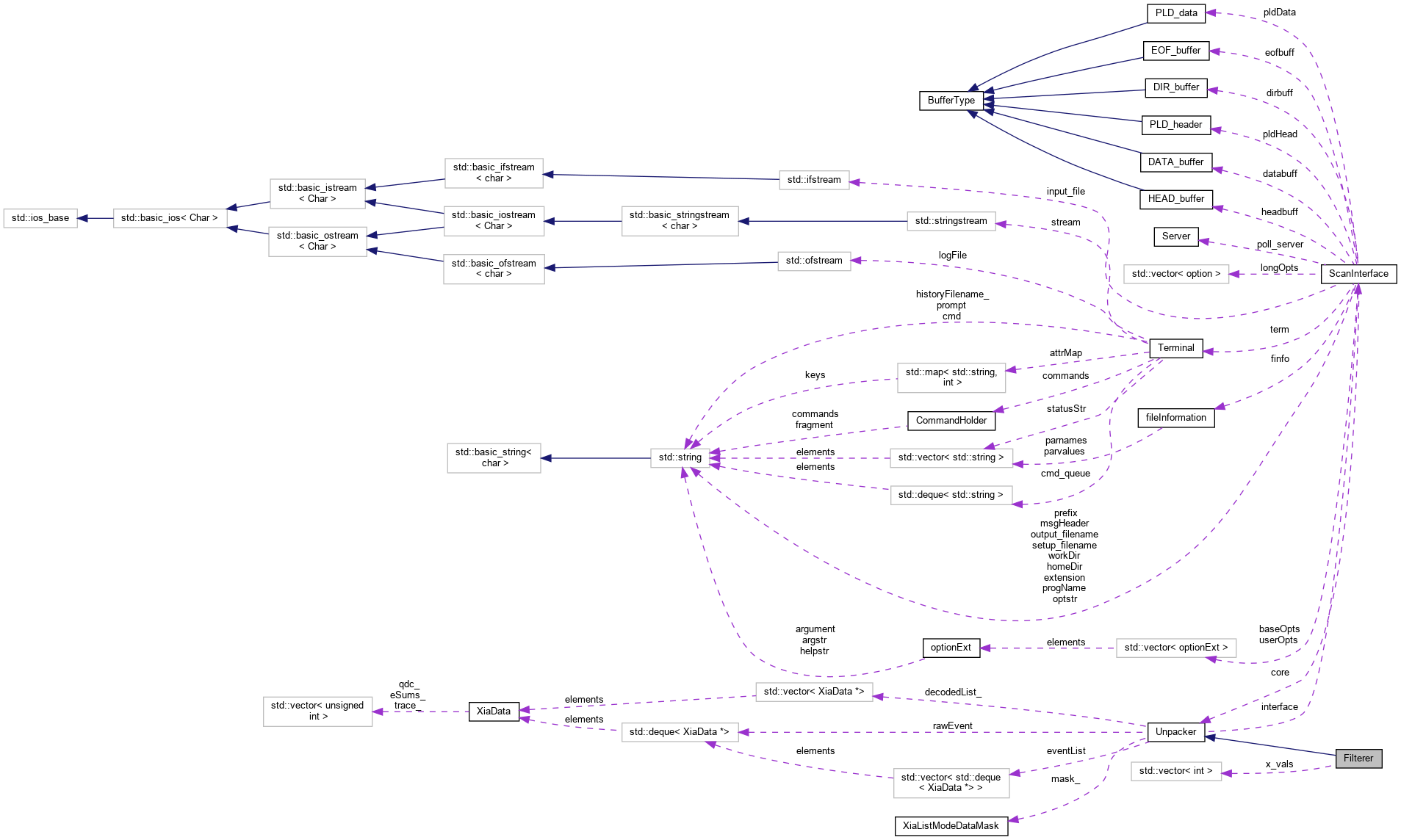

Collaboration diagram for Filterer:

[legend]

Public Member Functions
	Filterer (int mod=0, int chan=0)

	~Filterer ()

bool	Initialize (std::string prefix_="")

int	GetMod ()

int	GetChan ()

int	GetDelay ()

void	SetMod (int mod)

void	SetChan (int chan)

void	SetDelay (int delay)
	Set the number of seconds to wait between drawing of traces. More...

void	SyntaxStr (const char *name_, std::string prefix_="")
	Return the syntax string for this program. More...

void	ArgHelp (std::string prefix_="")
	Print a command line help dialogue for recognized command line arguments. More...

void	CmdHelp (std::string prefix_="")
	Print an in-terminal help dialogue for recognized commands. More...

bool	SetArgs (std::deque< std::string > &args_, std::string &filename_)
	Scan input arguments and set class variables. More...

void	PrintStatus (std::string prefix_="")
	Print a status message. More...

bool	CommandControl (std::string cmd_, const std::vector< std::string > &args_)

void	StopAcquisition ()
	Scan has stopped data acquisition. More...

void	StartAcquisition ()
	Scan has started data acquisition. More...

virtual void	IdleTask ()
	Perform tasks when waiting for a spill. More...

Public Member Functions inherited from Unpacker
	Unpacker ()
	Default constructor. More...

virtual	~Unpacker ()
	Destructor. More...

size_t	GetMaxModule ()
	Return the maximum module read from the input file. More...

unsigned int	GetNumRawEvents ()
	Return the number of raw events read from the file. More...

double	GetEventWidth ()
	Return the width of the raw event window in pixie16 clock ticks. More...

double	GetFirstTime ()
	Return the time of the first fired channel event. More...

double	GetEventStartTime ()
	Get the start time of the current raw event. More...

double	GetEventStopTime ()
	Get the stop time of the current raw event. More...

double	GetRealStartTime ()
	Get the time of the first xia event in the raw event. More...

double	GetRealStopTime ()
	Get the time of the last xia event in the raw event. More...

bool	IsRunning ()
	Return true if the scan is running and false otherwise. More...

bool	SetDebugMode (bool state_=true)
	Toggle debug mode on / off. More...

double	SetEventWidth (double width_)
	Set the width of events in pixie16 clock ticks. More...

void	InitializeDataMask (const std::string &firmware, const unsigned int &frequency)

ScanInterface *	SetInterface (ScanInterface *interface_)
	Set the address of the scan interface used for file operations. More...

bool	ReadSpill (unsigned int *data, unsigned int nWords, bool is_verbose=true)

void	Write ()

void	Stop ()

void	Run ()

Private Member Functions
void	ResetGraph (unsigned int size_)

void	Filter (float trace_, const size_t &length_, float filtered1, const unsigned int &risetime_, const unsigned int &flattop_)

void	Plot (ChannelEvent *event_)
	Plot the current event. More...

void	ProcessRawEvent ()
	Process all events in the event list. More...

Private Attributes
int	mod_
	The module of the signal of interest. More...

int	chan_
	The channel of the signal of interest. More...

bool	acqRun_

bool	singleCapture_

int	threshLow_

int	threshHigh_

unsigned int	trig_rise

unsigned int	trig_flat
	Set the fast filter length. Analogous to setting TRIGGER_RISETIME. More...

unsigned int	energy_rise
	Set the fast filter gap. Analogous to setting TRIGGER_FLATTOP. More...

unsigned int	energy_flat
	Set the slow filter risetime. Analogous to setting ENERGY_RISETIME. More...

float *	fast_filter_y
	Set the slow filter gap. Analogous to setting ENERGY_FLATTOP. More...

float *	slow_filter_y

bool	need_graph_update

int	delay_
	Set to true if the graph range needs updated. More...

std::vector< int >	x_vals
	The number of seconds to wait between drawing traces. More...

bool	resetGraph_

time_t	last_trace
	The time of the last trace. More...

unsigned int	num_traces
	The total number of traces. More...

unsigned int	num_displayed
	The number of displayed traces. More...

TApplication *	rootapp
	Root application pointer. More...

TCanvas *	canvas
	The main plotting canvas. More...

TGraph *	graph
	The TGraph for plotting traces. More...

TGraph *	f_fast
	The TGraph for plotting the fast filter. More...

TGraph *	f_slow
	The TGraph for plotting the slow filter. More...

Additional Inherited Members
Protected Member Functions inherited from Unpacker
virtual void	ProcessRawEvent (ScanInterface *addr_=NULL)
	Pointer to an object derived from ScanInterface. More...

virtual void	RawStats (XiaData event_, ScanInterface addr_=NULL)

int	ReadBuffer (unsigned int *buf)

Protected Attributes inherited from Unpacker
XiaListModeDataMask	mask_

double	eventWidth

bool	debug_mode
	The width of the raw event in pixie clock ticks (8 ns). More...

bool	running
	True if debug mode is set. More...

std::vector< std::deque< XiaData * > >	eventList
	True if the scan is running. More...

std::deque< XiaData * >	rawEvent
	The list of all events in a spill. More...

ScanInterface *	interface
	The list of all events in the event window. More...

Detailed Description

Definition at line 15 of file filterer.hpp.

Constructor & Destructor Documentation

§ Filterer()

Filterer::Filterer	(	int	mod = `0`,
		int	chan = `0`
	)

Definition at line 46 of file filterer.cpp.

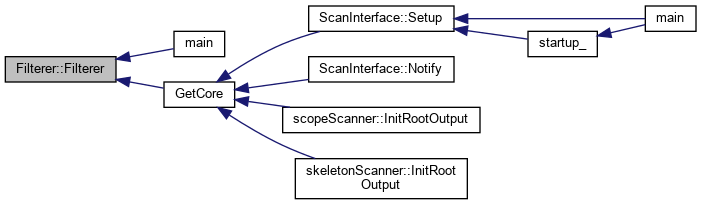

Here is the caller graph for this function:

§ ~Filterer()

Filterer::~Filterer ( )

Definition at line 80 of file filterer.cpp.

Member Function Documentation

§ ArgHelp()

void Filterer::ArgHelp ( std::string prefix_ = "" )

Print a command line help dialogue for recognized command line arguments.

Parameters

[in] prefix_

Definition at line 240 of file filterer.cpp.

Here is the caller graph for this function:

§ CmdHelp()

void Filterer::CmdHelp ( std::string prefix_ = "" )

Print an in-terminal help dialogue for recognized commands.

Parameters

[in] prefix_

Definition at line 249 of file filterer.cpp.

Here is the caller graph for this function:

§ CommandControl()

bool Filterer::CommandControl	(	std::string	cmd_,
		const std::vector< std::string > &	args_
	)

Search for an input command and perform the desired action.

Returns: True if the command is valid and false otherwise.

Definition at line 293 of file filterer.cpp.

Here is the caller graph for this function:

§ Filter()

void Filterer::Filter	(	float *	trace_,
		const size_t &	length_,
		float *	filtered1,
		const unsigned int &	risetime_,
		const unsigned int &	flattop_
	)

private

Definition at line 22 of file filterer.cpp.

Here is the caller graph for this function:

§ GetChan()

int Filterer::GetChan ( )

inline

Definition at line 73 of file filterer.hpp.

§ GetDelay()

int Filterer::GetDelay ( )

inline

Definition at line 75 of file filterer.hpp.

§ GetMod()

int Filterer::GetMod ( )

inline

Definition at line 71 of file filterer.hpp.

§ IdleTask()

void Filterer::IdleTask ( void )

virtual

Perform tasks when waiting for a spill.

Definition at line 395 of file filterer.cpp.

Here is the caller graph for this function:

§ Initialize()

bool Filterer::Initialize ( std::string prefix_ = "" )

Definition at line 228 of file filterer.cpp.

§ Plot()

void Filterer::Plot ( ChannelEvent * event_ )

private

Plot the current event.

The limits of the vertical axis

Definition at line 114 of file filterer.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

§ PrintStatus()

void Filterer::PrintStatus ( std::string prefix_ = "" )

inline

Print a status message.

Definition at line 97 of file filterer.hpp.

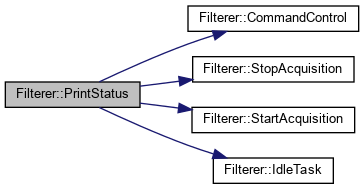

Here is the call graph for this function:

§ ProcessRawEvent()

void Filterer::ProcessRawEvent ( )

private

Process all events in the event list.

Definition at line 165 of file filterer.cpp.

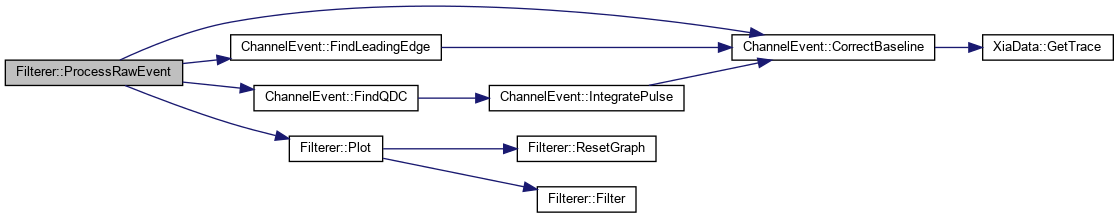

Here is the call graph for this function:

§ ResetGraph()

void Filterer::ResetGraph ( unsigned int size_ )

private

Definition at line 91 of file filterer.cpp.

Here is the caller graph for this function:

§ SetArgs()

bool Filterer::SetArgs	(	std::deque< std::string > &	args_,
		std::string &	filename_
	)

Scan input arguments and set class variables.

Parameters

args_
filename_

Definition at line 265 of file filterer.cpp.

Here is the caller graph for this function:

§ SetChan()

void Filterer::SetChan ( int chan )

inline

Definition at line 79 of file filterer.hpp.

§ SetDelay()

void Filterer::SetDelay ( int delay )

inline

Set the number of seconds to wait between drawing of traces.

Definition at line 82 of file filterer.hpp.

§ SetMod()

void Filterer::SetMod ( int mod )

inline

Definition at line 77 of file filterer.hpp.

§ StartAcquisition()

void Filterer::StartAcquisition ( )

Scan has started data acquisition.

Definition at line 391 of file filterer.cpp.

Here is the caller graph for this function:

§ StopAcquisition()

void Filterer::StopAcquisition ( )

Scan has stopped data acquisition.

Definition at line 386 of file filterer.cpp.

Here is the caller graph for this function:

§ SyntaxStr()

void Filterer::SyntaxStr	(	const char *	name_,
		std::string	prefix_ = `""`
	)

inline

Return the syntax string for this program.

Definition at line 85 of file filterer.hpp.

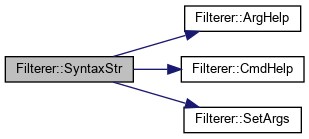

Here is the call graph for this function:

Field Documentation

§ acqRun_

bool Filterer::acqRun_

private

Definition at line 19 of file filterer.hpp.

§ canvas

TCanvas* Filterer::canvas

private

The main plotting canvas.

Definition at line 48 of file filterer.hpp.

§ chan_

int Filterer::chan_

private

The channel of the signal of interest.

Definition at line 18 of file filterer.hpp.

§ delay_

int Filterer::delay_

private

Set to true if the graph range needs updated.

Definition at line 34 of file filterer.hpp.

§ energy_flat

unsigned int Filterer::energy_flat

private

Set the slow filter risetime. Analogous to setting ENERGY_RISETIME.

Definition at line 27 of file filterer.hpp.

§ energy_rise

unsigned int Filterer::energy_rise

private

Set the fast filter gap. Analogous to setting TRIGGER_FLATTOP.

Definition at line 26 of file filterer.hpp.

§ f_fast

TGraph* Filterer::f_fast

private

The TGraph for plotting the fast filter.

Definition at line 51 of file filterer.hpp.

§ f_slow

TGraph* Filterer::f_slow

private

The TGraph for plotting the slow filter.

Definition at line 52 of file filterer.hpp.

§ fast_filter_y

float* Filterer::fast_filter_y

private

Set the slow filter gap. Analogous to setting ENERGY_FLATTOP.

Definition at line 29 of file filterer.hpp.

§ graph

TGraph* Filterer::graph

private

The TGraph for plotting traces.

Definition at line 50 of file filterer.hpp.

§ last_trace

time_t Filterer::last_trace

private

The time of the last trace.

Definition at line 40 of file filterer.hpp.

§ mod_

int Filterer::mod_

private

The module of the signal of interest.

Definition at line 17 of file filterer.hpp.

§ need_graph_update

bool Filterer::need_graph_update

private

Definition at line 32 of file filterer.hpp.

§ num_displayed

unsigned int Filterer::num_displayed

private

The number of displayed traces.

Definition at line 44 of file filterer.hpp.

§ num_traces

unsigned int Filterer::num_traces

private

The total number of traces.

Definition at line 42 of file filterer.hpp.

§ resetGraph_

bool Filterer::resetGraph_

private

Definition at line 38 of file filterer.hpp.

§ rootapp

TApplication* Filterer::rootapp

private

Root application pointer.

Definition at line 46 of file filterer.hpp.

§ singleCapture_

bool Filterer::singleCapture_

private

Definition at line 20 of file filterer.hpp.

§ slow_filter_y

float* Filterer::slow_filter_y

private

Definition at line 30 of file filterer.hpp.

§ threshHigh_

int Filterer::threshHigh_

private

Definition at line 22 of file filterer.hpp.

§ threshLow_

int Filterer::threshLow_

private

Definition at line 21 of file filterer.hpp.

§ trig_flat

unsigned int Filterer::trig_flat

private

Set the fast filter length. Analogous to setting TRIGGER_RISETIME.

Definition at line 25 of file filterer.hpp.

§ trig_rise

unsigned int Filterer::trig_rise

private

Definition at line 24 of file filterer.hpp.

§ x_vals

std::vector<int> Filterer::x_vals

private

The number of seconds to wait between drawing traces.

Definition at line 36 of file filterer.hpp.

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

§ Filterer()

§ ~Filterer()

Member Function Documentation

§ ArgHelp()

§ CmdHelp()

§ CommandControl()

§ Filter()

§ GetChan()

§ GetDelay()

§ GetMod()

§ IdleTask()

§ Initialize()

§ Plot()

§ PrintStatus()

§ ProcessRawEvent()

§ ResetGraph()

§ SetArgs()

§ SetChan()

§ SetDelay()

§ SetMod()

§ StartAcquisition()

§ StopAcquisition()

§ SyntaxStr()

Field Documentation

§ acqRun_

§ canvas

§ chan_

§ delay_

§ energy_flat

§ energy_rise

§ f_fast

§ f_slow

§ fast_filter_y

§ graph

§ last_trace

§ mod_

§ need_graph_update

§ num_displayed

§ num_traces

§ resetGraph_

§ rootapp

§ singleCapture_

§ slow_filter_y

§ threshHigh_

§ threshLow_

§ trig_flat

§ trig_rise

§ x_vals
