Version of PositionProcessor that is light weight. More...

#include <LitePositionProcessor.hpp>

Inheritance diagram for LitePositionProcessor:

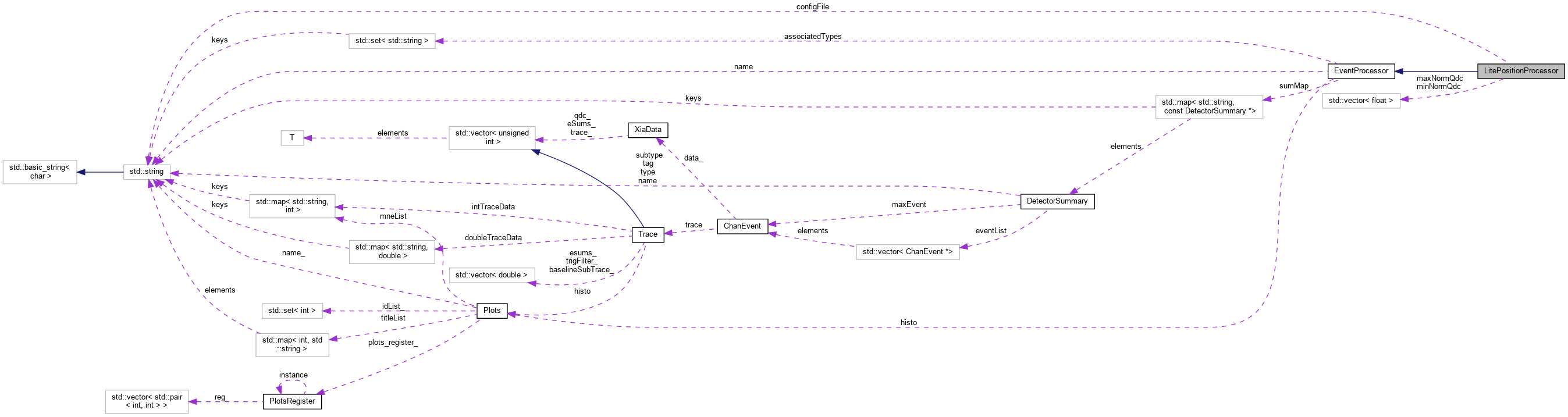

Collaboration diagram for LitePositionProcessor:

[legend]

Public Member Functions
	LitePositionProcessor ()

	~LitePositionProcessor ()

virtual bool	Init (RawEvent &event)

virtual bool	Process (RawEvent &event)

virtual void	DeclarePlots (void)

Public Member Functions inherited from EventProcessor
	EventProcessor ()

	EventProcessor (int offset, int range, std::string name)

virtual	~EventProcessor ()

virtual const std::set< std::string > &	GetTypes (void) const

virtual bool	DidProcess (void) const

virtual bool	HasEvent (void) const

virtual bool	PreProcess (RawEvent &event)

void	EndProcess (void)

std::string	GetName (void) const

Protected Member Functions
ChanEvent *	FindMatchingEdge (ChanEvent match, std::vector< ChanEvent >::const_iterator begin, std::vector< ChanEvent *>::const_iterator end) const

Protected Member Functions inherited from EventProcessor
virtual void	plot (int dammId, double val1, double val2=-1, double val3=-1, const char *name="h")
	Implementation of the plot command to interface with the DAMM routines. More...

virtual void	DeclareHistogram1D (int dammId, int xSize, const char *title)
	Declares a 1D histogram calls the C++ wrapper for DAMM. More...

virtual void	DeclareHistogram2D (int dammId, int xSize, int ySize, const char *title)
	Declares a 2D histogram calls the C++ wrapper for DAMM. More...

Protected Attributes
float	qdcLen [numQdcs]
	the length of each qdc in pixie samples More...

float	qdcPos [numQdcs]
	the ending sample number for each QDC position More...

float	totLen
	calculated length of all qdcs excluding baseline qdc More...

int	whichQdc
	which qdc we are using for position determination More...

int	numLocations
	The number of locations. More...

float	posScale
	an arbitrary scale for the position parameter to physical units More...

std::vector< float >	minNormQdc
	the minimum normalized qdc observed for a location More...

std::vector< float >	maxNormQdc
	the maximum normalized qdc observed for a location More...

Protected Attributes inherited from EventProcessor
std::string	name
	Name of the Processor. More...

std::set< std::string >	associatedTypes
	Set of associated types for Processor. More...

bool	initDone
	True if the initialization has finished. More...

bool	didProcess
	True if the process finished. More...

std::map< std::string, const DetectorSummary * >	sumMap
	Map of associated detector summary. More...

Plots	histo

Static Protected Attributes
static const std::string	configFile
	Configuration file name. More...

static const int	numQdcs = 8
	Number of QDCs to calculate. More...

Detailed Description

Version of PositionProcessor that is light weight.

Definition at line 17 of file LitePositionProcessor.hpp.

Constructor & Destructor Documentation

§ LitePositionProcessor()

LitePositionProcessor::LitePositionProcessor ( )

Default Constructor

§ ~LitePositionProcessor()

LitePositionProcessor::~LitePositionProcessor ( )

inline

Default Destructor

Definition at line 22 of file LitePositionProcessor.hpp.

Here is the call graph for this function:

Member Function Documentation

§ DeclarePlots()

void LitePositionProcessor::DeclarePlots ( void )

virtual

Declare plots for processor

Declare all the plots we plan on using (part of dammIds::qdc namespace)

Reimplemented from EventProcessor.

Definition at line 138 of file LitePositionProcessor.cpp.

Here is the caller graph for this function:

§ FindMatchingEdge()

ChanEvent * LitePositionProcessor::FindMatchingEdge	(	ChanEvent *	match,
		std::vector< ChanEvent *>::const_iterator	begin,
		std::vector< ChanEvent *>::const_iterator	end
	)		const

protected

Find the matching edge of the SSD

Parameters

[in]	match	: the matching edge
[in]	begin	: an iterator to the beginning of the event
[in]	end	: an iterator to the end of the event

Returns: a pointer to the matching ChanEvent

Definition at line 371 of file LitePositionProcessor.cpp.

Here is the call graph for this function:

§ Init()

bool LitePositionProcessor::Init ( RawEvent & event )

virtual

Initialize the processor

Parameters

[in] event : the event to use for init

Returns: true if init was successful

Reads in QDC parameters from an input file The file format allows comment lines at the beginning Followed by QDC lengths Which QDC to use for position calculation followed by the amount to scale the [0,1] result by to physical units And min and max values of the normalized QDC for each location in form: [location] [min] [max] Note that QDC 0 is considered to be a baseline section of the trace for baseline removal for the other QDCs

Reimplemented from EventProcessor.

Definition at line 57 of file LitePositionProcessor.cpp.

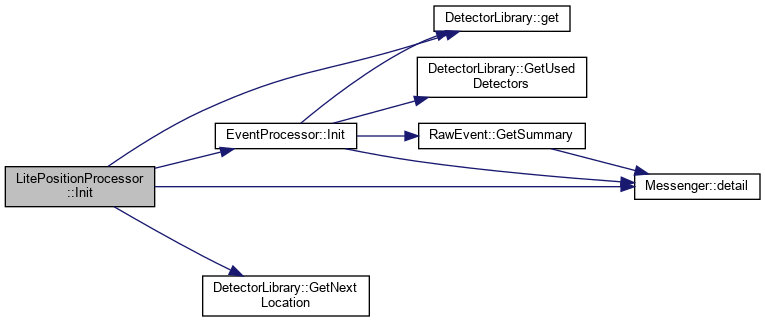

Here is the call graph for this function:

Here is the caller graph for this function:

§ Process()

bool LitePositionProcessor::Process ( RawEvent & event )

virtual

Process an event

Parameters

[in] event : the event to process

Returns: true if the processing was successful

Process the QDC data involved in top/bottom side for a strip Note QDC lengths are HARD-CODED at the moment for the plots and to determine the position

Reimplemented from EventProcessor.

Definition at line 205 of file LitePositionProcessor.cpp.

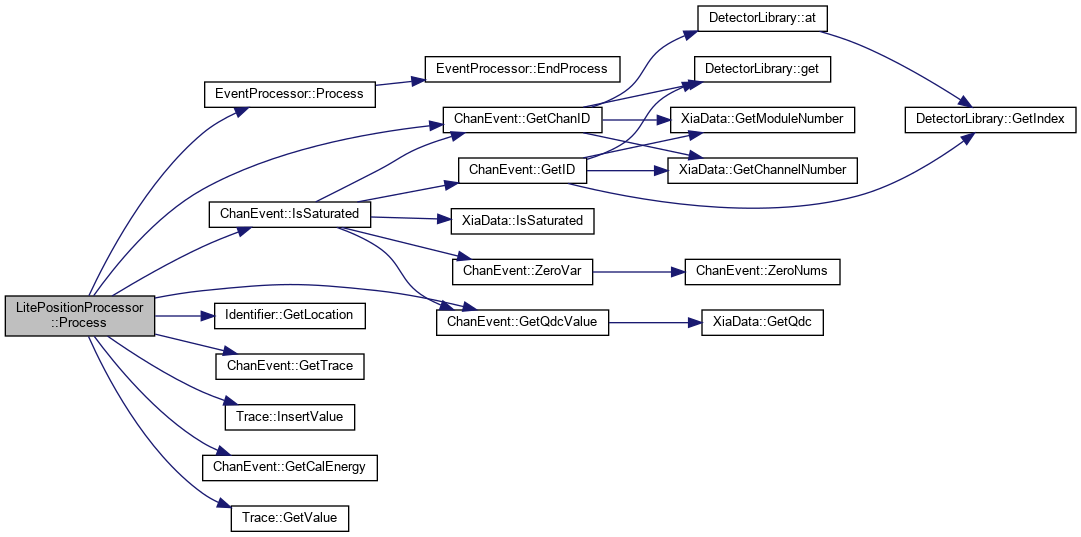

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

§ configFile

const std::string LitePositionProcessor::configFile

staticprotected

Configuration file name.

Definition at line 34 of file LitePositionProcessor.hpp.

§ maxNormQdc

std::vector<float> LitePositionProcessor::maxNormQdc

protected

the maximum normalized qdc observed for a location

Definition at line 44 of file LitePositionProcessor.hpp.

§ minNormQdc

std::vector<float> LitePositionProcessor::minNormQdc

protected

the minimum normalized qdc observed for a location

Definition at line 43 of file LitePositionProcessor.hpp.

§ numLocations

int LitePositionProcessor::numLocations

protected

The number of locations.

Definition at line 41 of file LitePositionProcessor.hpp.

§ numQdcs

const int LitePositionProcessor::numQdcs = 8

staticprotected

Number of QDCs to calculate.

Definition at line 35 of file LitePositionProcessor.hpp.

§ posScale

float LitePositionProcessor::posScale

protected

an arbitrary scale for the position parameter to physical units

Definition at line 42 of file LitePositionProcessor.hpp.

§ qdcLen

float LitePositionProcessor::qdcLen[numQdcs]

protected

the length of each qdc in pixie samples

Definition at line 37 of file LitePositionProcessor.hpp.

§ qdcPos

float LitePositionProcessor::qdcPos[numQdcs]

protected

the ending sample number for each QDC position

Definition at line 38 of file LitePositionProcessor.hpp.

§ totLen

float LitePositionProcessor::totLen

protected

calculated length of all qdcs excluding baseline qdc

Definition at line 39 of file LitePositionProcessor.hpp.

§ whichQdc

int LitePositionProcessor::whichQdc

protected

which qdc we are using for position determination

Definition at line 40 of file LitePositionProcessor.hpp.

The documentation for this class was generated from the following files:
