#include <scope.hpp>

Inheritance diagram for scopeScanner:

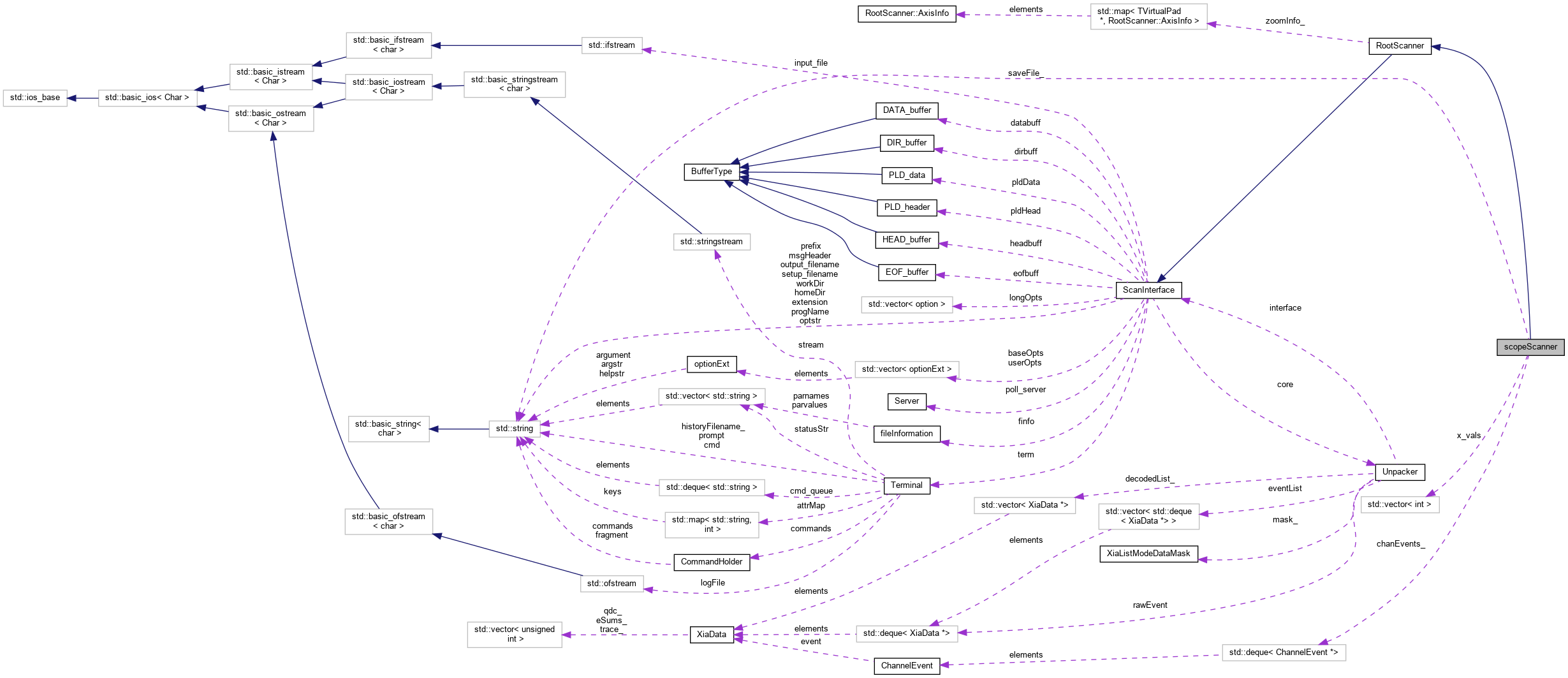

Collaboration diagram for scopeScanner:

[legend]

Public Member Functions
	scopeScanner (int mod=0, int chan=0)
	Default constructor. More...

	~scopeScanner ()
	Destructor. More...

int	GetDelay ()
	Set the time delay between traces (in seconds). More...

size_t	GetNumEvents ()
	Return the maximum number of events to store. More...

void	SetDelay (int delay)
	Set the number of seconds to wait between drawing of traces. More...

void	SetNumEvents (size_t num_)
	Set the maximum number of events to store. More...

void	StopACQ ()
	Stop the run. More...

void	StartACQ ()
	Star the run. More...

virtual bool	ExtraCommands (const std::string &cmd_, std::vector< std::string > &args_)

virtual void	ExtraArguments ()

virtual void	CmdHelp (const std::string &prefix_="")

virtual void	ArgHelp ()

virtual void	SyntaxStr (char *name_)

virtual bool	Initialize (std::string prefix_="")

virtual void	FinalInitialization ()

virtual bool	InitRootOutput (std::string fname_, bool overwrite_=true)

virtual void	Notify (const std::string &code_="")

virtual Unpacker *	GetCore ()

virtual bool	AddEvent (XiaData *event_)

virtual bool	ProcessEvents ()

void	ClearEvents ()

Public Member Functions inherited from RootScanner
	RootScanner ()

	~RootScanner ()

TCanvas *	GetCanvas ()

void	IdleTask ()

void	UpdateZoom (TVirtualPad *pad=gPad)

void	ResetZoom (TVirtualPad *pad=gPad)

Public Member Functions inherited from ScanInterface
	ScanInterface (Unpacker *core_=NULL)
	Default constructor. More...

virtual	~ScanInterface ()
	Default destructor. More...

bool	IsInit ()
	Return true if the ScanInterface object has been initialized. More...

bool	IsVerbose ()
	Return true if verbose output mode is enabled. More...

bool	DebugMode ()
	Return true if debug mode is enabled. More...

bool	DryRunMode ()
	Return true if dry run mode is enabled. More...

bool	ShmMode ()
	Return true if shared memory mode is enabled. More...

bool	BatchMode ()
	Return true if batch processing mode is enabled. More...

std::string	GetMessageHeader ()
	Return the header string used to prefix output messages. More...

std::string	GetProgramName ()
	Return the name of the program. More...

std::string	GetSetupFilename ()

std::string	GetOutputFilename ()

fileInformation *	GetFileInfo ()
	Return a pointer to a fileInformation object used to store file header info. More...

void	SetProgramName (const std::string &head_)
	Set the header string used to prefix output messages. More...

bool	SetVerboseMode (bool state_=true)
	Enable or disable verbose output mode. More...

bool	SetDebugMode (bool state_=true)
	Enable or disable debug mode. More...

bool	SetDryRunMode (bool state_=true)
	Enable or disable dry run mode. More...

bool	SetShmMode (bool state_=true)
	Enable or disable shared memory mode. More...

bool	SetBatchMode (bool state_=true)
	Enable or disable batch processing mode. More...

void	RunControl ()
	Main scan control method. More...

void	CmdControl ()
	Main command interpreter method. More...

bool	Setup (int argc, char *argv[])
	Setup user options and initialize all required objects. More...

int	Execute ()
	Run the program. More...

bool	Close ()
	Shutdown cleanly. More...

Private Member Functions
TF1 *	SetupFunc ()

void	ResetGraph (unsigned int size_)

void	Plot ()
	Plot the current event. More...

Private Attributes
unsigned int	numAvgWaveforms_

unsigned int	num_displayed
	The number of displayed traces. More...

size_t	numEvents

float	cfdF_
	The number of waveforms to store. More...

int	cfdD_

int	cfdL_

int	fitLow_

int	fitHigh_

int	delay_

bool	need_graph_update
	The number of seconds to wait between drawing traces. More...

bool	resetGraph_
	Set to true if the graph range needs updated. More...

bool	acqRun_

bool	singleCapture_

bool	init

bool	running

bool	performFit_

bool	performCfd_

std::vector< int >	x_vals

std::deque< ChannelEvent * >	chanEvents_
	The buffer of waveforms to be plotted. More...

time_t	last_trace
	The time of the last trace. More...

std::string	saveFile_
	The name of the file to save a trace. More...

TGraph *	graph
	The TGraph for plotting traces. More...

TLine *	cfdLine

TF1 *	cfdPol3

TF1 *	cfdPol2

TH2F *	hist
	The histogram containing the waveform frequencies. More...

TProfile *	prof
	The profile of the average histogram. More...

TF1 *	paulauskasFunc
	A TF1 of the Paulauskas Function (NIM A 737 (2014) 22) More...

Additional Inherited Members
Protected Member Functions inherited from ScanInterface
void	AddOption (optionExt opt_)
	Pointer to class derived from Unpacker class. More...

Protected Attributes inherited from ScanInterface
std::string	msgHeader

std::string	progName
	The string to print before program output. More...

std::vector< option >	longOpts
	The name of the program. More...

std::vector< optionExt >	baseOpts
	Vector of all command line options. More...

std::vector< optionExt >	userOpts
	Base level command line options for the scan. More...

std::string	optstr
	User added command line options. More...

Unpacker *	core

Detailed Description

Definition at line 73 of file scope.hpp.

Constructor & Destructor Documentation

§ scopeScanner()

scopeScanner::scopeScanner	(	int	mod = `0`,
		int	chan = `0`
	)

Default constructor.

Definition at line 128 of file scope.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

§ ~scopeScanner()

scopeScanner::~scopeScanner ( )

Destructor.

Definition at line 170 of file scope.cpp.

Member Function Documentation

§ AddEvent()

bool scopeScanner::AddEvent ( XiaData * event_ )

virtual

Add a channel event to the deque of events to send to the processors. This method should only be called from skeletonUnpacker::ProcessRawEvent().

Parameters

[in] event_ The raw XiaData to add to the channel event deque.

Returns: True if events are ready to be processed and false otherwise.

: Renable this with the Helper functions.

Reimplemented from ScanInterface.

Definition at line 398 of file scope.cpp.

§ ArgHelp()

void scopeScanner::ArgHelp ( void )

virtual

ArgHelp is used to allow a derived class to add a command line option to the main list of options. This method is called at the end of from the ::Setup method. Does nothing useful by default.

Returns: Nothing.

Reimplemented from ScanInterface.

Definition at line 485 of file scope.cpp.

Here is the call graph for this function:

§ ClearEvents()

void scopeScanner::ClearEvents ( )

Clear the event deque.

Returns: Nothing.

Definition at line 451 of file scope.cpp.

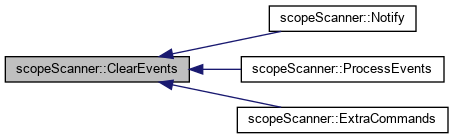

Here is the caller graph for this function:

§ CmdHelp()

void scopeScanner::CmdHelp ( const std::string & prefix_ = "" )

virtual

CmdHelp is used to allow a derived class to print a help statement about its own commands. This method is called whenever the user enters 'help' or 'h' into the interactive terminal (if available).

Parameters

[in] prefix_ String to append at the start of any output. Not used by default.

Returns: Nothing.

Reimplemented from ScanInterface.

Definition at line 464 of file scope.cpp.

§ ExtraArguments()

void scopeScanner::ExtraArguments ( )

virtual

ExtraArguments is used to send command line arguments to classes derived from ScanInterface. This method should loop over the optionExt elements in the vector userOpts and check for those options which have been flagged as active by ::Setup(). This should be overloaded in the derived class.

Returns: Nothing.

Reimplemented from ScanInterface.

Definition at line 504 of file scope.cpp.

§ ExtraCommands()

bool scopeScanner::ExtraCommands	(	const std::string &	cmd_,
		std::vector< std::string > &	args_
	)

virtual

ExtraCommands is used to send command strings to classes derived from ScanInterface. If ScanInterface receives an unrecognized command from the user, it will pass it on to the derived class.

Parameters

[in]	cmd_	The command to interpret.
[out]	arg_	Vector or arguments to the user command.

Returns: True if the command was recognized and false otherwise.

Reimplemented from ScanInterface.

Definition at line 518 of file scope.cpp.

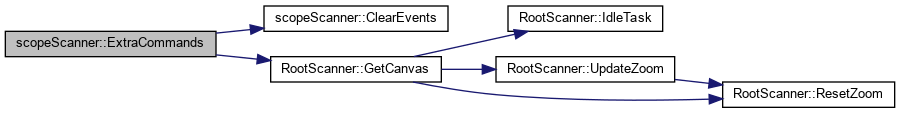

Here is the call graph for this function:

§ FinalInitialization()

virtual void scopeScanner::FinalInitialization ( )

inlinevirtual

Peform any last minute initialization before processing data. /return Nothing.

Reimplemented from ScanInterface.

Definition at line 148 of file scope.hpp.

§ GetCore()

Unpacker * scopeScanner::GetCore ( )

virtual

Return a pointer to the Unpacker object to use for data unpacking. If no object has been initialized, create a new one.

Returns: Pointer to an Unpacker object.

Reimplemented from ScanInterface.

Definition at line 388 of file scope.cpp.

Here is the caller graph for this function:

§ GetDelay()

int scopeScanner::GetDelay ( )

inline

Set the time delay between traces (in seconds).

Definition at line 82 of file scope.hpp.

§ GetNumEvents()

size_t scopeScanner::GetNumEvents ( )

inline

Return the maximum number of events to store.

Definition at line 85 of file scope.hpp.

§ Initialize()

bool scopeScanner::Initialize ( std::string prefix_ = "" )

virtual

Initialize the map file, the config file, the processor handler, and add all of the required processors.

Parameters

[in] prefix_ String to append to the beginning of system output.

Returns: True upon successfully initializing and false otherwise.

Reimplemented from ScanInterface.

Definition at line 359 of file scope.cpp.

§ InitRootOutput()

virtual bool scopeScanner::InitRootOutput	(	std::string	fname_,
		bool	overwrite_ = `true`
	)

inlinevirtual

Initialize the root output.

Parameters

[in]	fname_	Filename of the output root file.
[in]	overwrite_	Set to true if the user wishes to overwrite the output file.

Returns: True upon successfully opening the output file and false otherwise.

Reimplemented from ScanInterface.

Definition at line 155 of file scope.hpp.

Here is the call graph for this function:

§ Notify()

void scopeScanner::Notify ( const std::string & code_ = "" )

virtual

Receive various status notifications from the scan.

Parameters

[in] code_ The notification code passed from ScanInterface methods.

Returns: Nothing.

Reimplemented from ScanInterface.

Definition at line 372 of file scope.cpp.

Here is the call graph for this function:

§ Plot()

void scopeScanner::Plot ( )

private

Plot the current event.

Renable the CFD with the proper functionality.

Definition at line 208 of file scope.cpp.

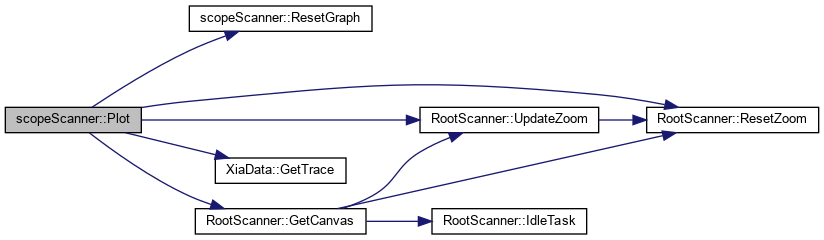

Here is the call graph for this function:

Here is the caller graph for this function:

§ ProcessEvents()

bool scopeScanner::ProcessEvents ( )

virtual

Process all channel events read in from the rawEvent. This method should only be called from skeletonUnpacker::ProcessRawEvent().

Returns: True if events were processed and false otherwise.

Reimplemented from ScanInterface.

Definition at line 423 of file scope.cpp.

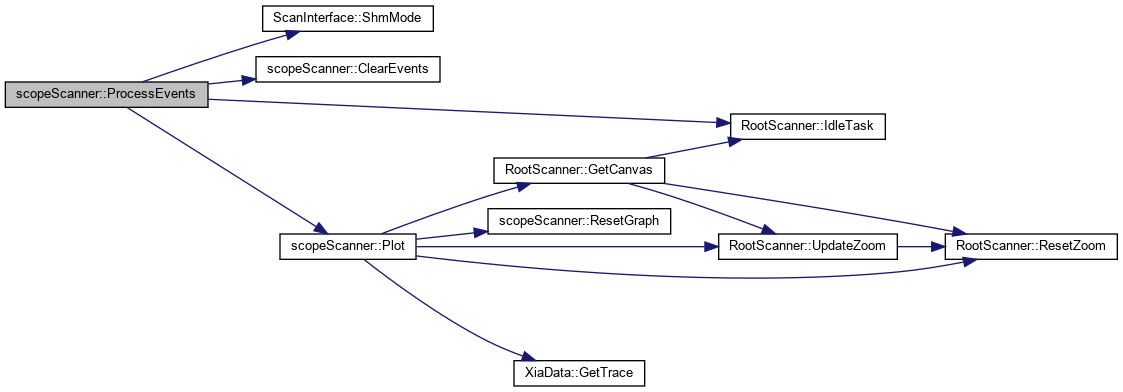

Here is the call graph for this function:

§ ResetGraph()

void scopeScanner::ResetGraph ( unsigned int size_ )

private

Definition at line 186 of file scope.cpp.

Here is the caller graph for this function:

§ SetDelay()

void scopeScanner::SetDelay ( int delay )

inline

Set the number of seconds to wait between drawing of traces.

Definition at line 88 of file scope.hpp.

§ SetNumEvents()

void scopeScanner::SetNumEvents ( size_t num_ )

inline

Set the maximum number of events to store.

Definition at line 91 of file scope.hpp.

§ SetupFunc()

TF1 * scopeScanner::SetupFunc ( )

private

Definition at line 179 of file scope.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

§ StartACQ()

void scopeScanner::StartACQ ( )

inline

Star the run.

Definition at line 97 of file scope.hpp.

§ StopACQ()

void scopeScanner::StopACQ ( )

inline

Stop the run.

Definition at line 94 of file scope.hpp.

§ SyntaxStr()

void scopeScanner::SyntaxStr ( char * name_ )

virtual

SyntaxStr is used to print a linux style usage message to the screen.

Parameters

[in] name_ The name of the program.

Returns: Nothing.

Reimplemented from ScanInterface.

Definition at line 494 of file scope.cpp.

Field Documentation

§ acqRun_

bool scopeScanner::acqRun_

private

Definition at line 202 of file scope.hpp.

§ cfdD_

int scopeScanner::cfdD_

private

Definition at line 194 of file scope.hpp.

§ cfdF_

float scopeScanner::cfdF_

private

The number of waveforms to store.

Definition at line 193 of file scope.hpp.

§ cfdL_

int scopeScanner::cfdL_

private

Definition at line 195 of file scope.hpp.

§ cfdLine

TLine* scopeScanner::cfdLine

private

Definition at line 217 of file scope.hpp.

§ cfdPol2

TF1* scopeScanner::cfdPol2

private

Definition at line 219 of file scope.hpp.

§ cfdPol3

TF1* scopeScanner::cfdPol3

private

Definition at line 218 of file scope.hpp.

§ chanEvents_

std::deque<ChannelEvent*> scopeScanner::chanEvents_

private

The buffer of waveforms to be plotted.

Definition at line 210 of file scope.hpp.

§ delay_

int scopeScanner::delay_

private

Definition at line 198 of file scope.hpp.

§ fitHigh_

int scopeScanner::fitHigh_

private

Definition at line 197 of file scope.hpp.

§ fitLow_

int scopeScanner::fitLow_

private

Definition at line 196 of file scope.hpp.

§ graph

TGraph* scopeScanner::graph

private

The TGraph for plotting traces.

Definition at line 216 of file scope.hpp.

§ hist

TH2F* scopeScanner::hist

private

The histogram containing the waveform frequencies.

Definition at line 220 of file scope.hpp.

§ init

bool scopeScanner::init

private

Definition at line 204 of file scope.hpp.

§ last_trace

time_t scopeScanner::last_trace

private

The time of the last trace.

Definition at line 212 of file scope.hpp.

§ need_graph_update

bool scopeScanner::need_graph_update

private

The number of seconds to wait between drawing traces.

Definition at line 200 of file scope.hpp.

§ num_displayed

unsigned int scopeScanner::num_displayed

private

The number of displayed traces.

Definition at line 189 of file scope.hpp.

§ numAvgWaveforms_

unsigned int scopeScanner::numAvgWaveforms_

private

Definition at line 188 of file scope.hpp.

§ numEvents

size_t scopeScanner::numEvents

private

Definition at line 191 of file scope.hpp.

§ paulauskasFunc

TF1* scopeScanner::paulauskasFunc

private

A TF1 of the Paulauskas Function (NIM A 737 (2014) 22)

Definition at line 223 of file scope.hpp.

§ performCfd_

bool scopeScanner::performCfd_

private

Definition at line 207 of file scope.hpp.

§ performFit_

bool scopeScanner::performFit_

private

Definition at line 206 of file scope.hpp.

§ prof

TProfile* scopeScanner::prof

private

The profile of the average histogram.

Definition at line 221 of file scope.hpp.

§ resetGraph_

bool scopeScanner::resetGraph_

private

Set to true if the graph range needs updated.

Definition at line 201 of file scope.hpp.

§ running

bool scopeScanner::running

private

Definition at line 205 of file scope.hpp.

§ saveFile_

std::string scopeScanner::saveFile_

private

The name of the file to save a trace.

Definition at line 214 of file scope.hpp.

§ singleCapture_

bool scopeScanner::singleCapture_

private

Definition at line 203 of file scope.hpp.

§ x_vals

std::vector<int> scopeScanner::x_vals

private

Definition at line 209 of file scope.hpp.

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

§ scopeScanner()

§ ~scopeScanner()

Member Function Documentation

§ AddEvent()

§ ArgHelp()

§ ClearEvents()

§ CmdHelp()

§ ExtraArguments()

§ ExtraCommands()

§ FinalInitialization()

§ GetCore()

§ GetDelay()

§ GetNumEvents()

§ Initialize()

§ InitRootOutput()

§ Notify()

§ Plot()

§ ProcessEvents()

§ ResetGraph()

§ SetDelay()

§ SetNumEvents()

§ SetupFunc()

§ StartACQ()

§ StopACQ()

§ SyntaxStr()

Field Documentation

§ acqRun_

§ cfdD_

§ cfdF_

§ cfdL_

§ cfdLine

§ cfdPol2

§ cfdPol3

§ chanEvents_

§ delay_

§ fitHigh_

§ fitLow_

§ graph

§ hist

§ init

§ last_trace

§ need_graph_update

§ num_displayed

§ numAvgWaveforms_

§ numEvents

§ paulauskasFunc

§ performCfd_

§ performFit_

§ prof

§ resetGraph_

§ running

§ saveFile_

§ singleCapture_

§ x_vals
